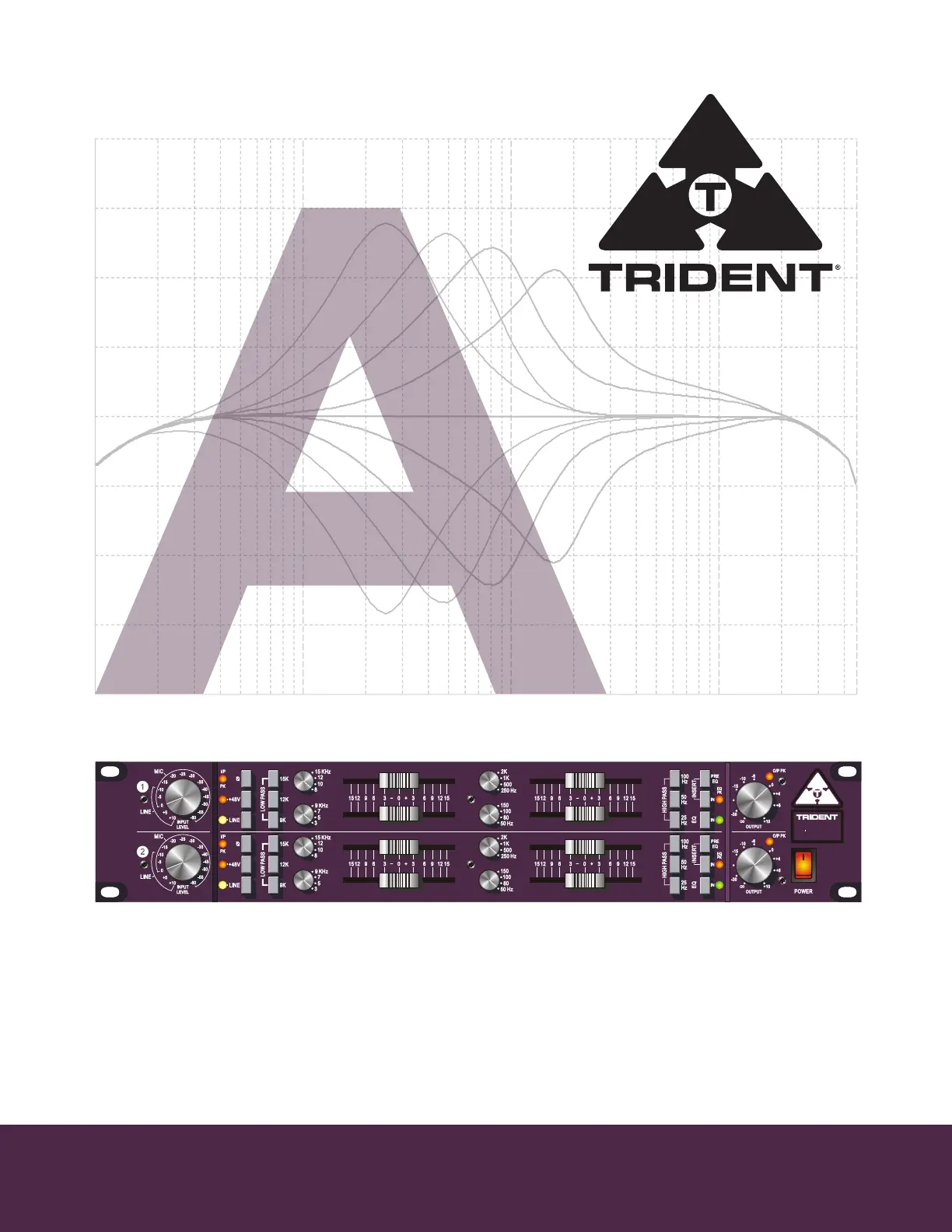

OWNERSHANDBOOK

®

AUDIO

DEVELOPMENTS

®

DUALDISCRETEMICROPHONEPREAMPLIFIERANDEQUALISER

PRODUCT DESCRIPTION

A-Range

A-Range

both microphone and

line inputs) and an output level control with peak signal indication.

All inputs and outputs are balanced so that maximum signal integrity and high output levels are

assured with minimum distortion.

Auseful additional facility when using it as a stand-alone unit is the inclusion of LED peak level

indicators at key points in the signal chain. These are located: directly after the input amplifiers

(microphone and line), after the equaliser section and after the main output amplifier. This ensures

that the signal is accurately monitored and matched at all stages in the signal chain.

A-Range

discrete transistor microphone and line input preamplifiers or the unique and versatile equaliser

sections.

CONNECTING THE UNIT

The rear panel of the unit provides both XLR and ¼" jack inputs for the line input and output of each

channel while a separate XLR is provided for the microphone input. The insert sends and returns are

¼" jacks. The XLR connectors use the standard industry convention of pin 1 ground, pin 2 positive

and pin 3 negative. The jacks are tip-positive, ring-negative andsleeve ground. For unbalanced use,

connect the ring to the sleeve.

The is a 2-channel rack-mountable version of the legendary Trident 'A' Range console.

Comprising two independent channels, each with a microphone/line amplifier and four band

equaliser, it is designed to process incoming signals from a microphone or line level instrument and

output to a recording device, such as a digital audio workstation or analog multi-track tape recorder.

Mains powered, with 48 volt phantom power independently switchable for the two channels, the

operates as a complete stand-alone unit.

In keeping with its mixing console heritage, each 'channel strip' of this rack unit features insert points

(switchable pre/post EQ and with bypass), phase reverse (which operates on

The rack will add its own signature to any programme material, whether using just the

®

®

®

O

O

A RANGE

CAUTION

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

ENSURE MAINS VOLTAGE AND FUSE RATINGS

ARE CORRECT BEFORE CONNECTING MAINS POWER.

THIS APPARATUS MUST BE EARTHED BYTHE POWER CORD.

NO USER SERVICEABLE PARTS -

REFER SERVICING TO QUALIFIED PERSONNEL.

ARANGE

Distributed Exclusively by PMI Audio Group

Gardena, California 90247 USA

www.trident-audio.com

Designed in England

Assembled in the USA

to Trident Audio’s strict specifications

DUALCHANNELDISCRETE

MIC AMPLIFIER AND EQUALISER

TRIDENT

TRIDENT AUDIO DEVELOPMENTS

TRIDENT SERIES

®

®

®

EN55103

EN60065

7

DUAL DISCRETE MICROPHONE PREAMPLIFIER AND EQUALISER

A -RANGE

OWNERS MANUAL

®

Dual Channel Strip

A
