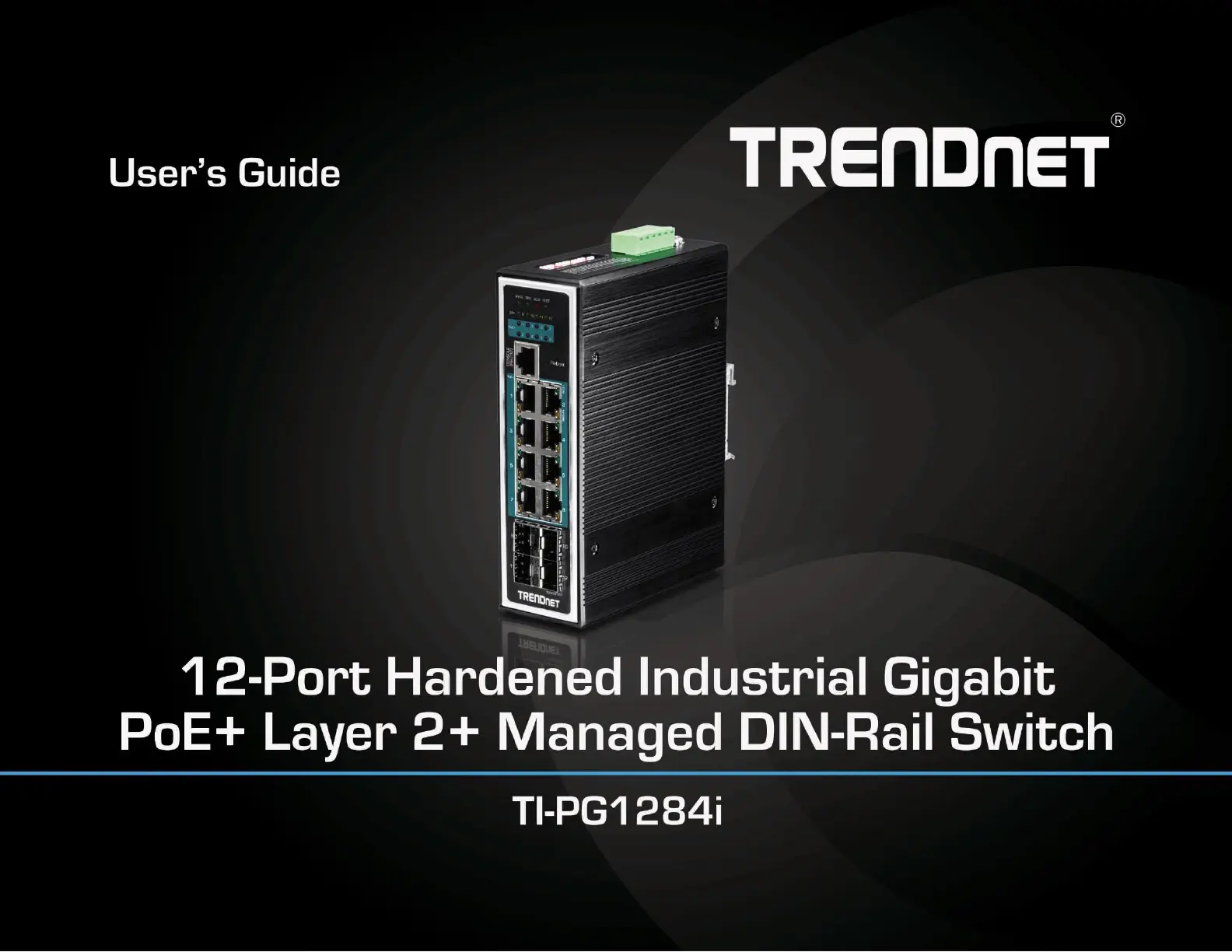

TRENDnet User’s Guide

Cover Page

TRENDnet User’s Guide

Table of Contents

Contents

Product Overview ........................................................................... 1

Package Contents .......................................................................................................... 1

Features ......................................................................................................................... 1

Product Hardware Features........................................................................................... 3

SFP Transceiver/Optical Cable Installation .................................................................... 5

Switch Installation .......................................................................... 6

DIN-Rail Installation ....................................................................................................... 6

Install power supply connections .................................................................................. 7

Basic IP Configuration .................................................................................................... 7

Connect additional devices to your switch .................................................................... 9

Accessing switch management interfaces ...................................... 10

Access your switch command line interface................................................................ 10

CLI Command Modes ......................................................................................... 11

Access your switch web management page ................................................................ 12

System Information....................................................................... 13

Basic Settings ................................................................................ 14

General Settings .......................................................................................................... 14

System ............................................................................................................... 14

Jumbo Frame ..................................................................................................... 17

SNTP ................................................................................................................... 18

Management Host ............................................................................................. 21

MAC Management ....................................................................................................... 22

Static MAC Settings ............................................................................................ 22

MAC Table .......................................................................................................... 24

Age Time Settings .............................................................................................. 24

Refusal (Black-hole MAC) ................................................................................... 24

Port Mirror ................................................................................................................... 26

Port Settings ................................................................................................................ 28

General Settings ................................................................................................ 29

Information ........................................................................................................ 31

Advanced Settings ........................................................................ 32

Bandwidth Control ...................................................................................................... 32

QoS .................................................................................................................... 32

Rate Limitation .................................................................................................. 38

IGMP Snooping ............................................................................................................ 41

IGMP Snooping .................................................................................................. 41

IGMP Filtering .................................................................................................... 46

Multicast Listener Discovery (MLD) Snooping ................................................... 49

MVR ................................................................................................................... 52

Multicast Address .............................................................................................. 56

Explicit Host Tracking ......................................................................................... 58

VLAN ............................................................................................................................ 59

Port Isolation ..................................................................................................... 59

802.1Q VLAN ...................................................................................................... 60

GARP/GVRP ....................................................................................................... 65

MAC-based VLAN ............................................................................................... 67

Protocol-based VLAN ......................................................................................... 68

Q-in-Q VLAN (VLAN Stacking) ............................................................................ 69

DHCP Option 82 ........................................................................................................... 76

DHCP Relay .................................................................................................................. 79

Dual Homing ................................................................................................................ 81

ERPS ............................................................................................................................. 83

Link Aggregation .......................................................................................................... 87

Link Layer Discovery Protocol (LLDP) ........................................................................... 91

Loop Detection ............................................................................................................ 94

Modbus ........................................................................................................................ 96

PoE (Power over Ethernet) ........................................................................................ 100

PTP (IEEE-1588 v2) ..................................................................................................... 106

Product specificaties

Merk:	Trendnet
Categorie:	Schakelaar
Model:	TI-G102i
Kleur van het product:	Zwart
Gewicht:	884 g
Breedte:	160 mm
Diepte:	120 mm
Hoogte:	50 mm
Materiaal behuizing:	Metaal
Internationale veiligheidscode (IP):	IP30
LED-indicatoren:	Ja
Snelstartgids:	Ja
Vermogensverbruik (max):	13 W
Certificering:	CE, FCC
Netwerkstandaard:	IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Upgraden van firmware mogelijk:	Ja
Reset button:	Ja
Rack-montage:	Nee
Redundante voeding:	Ja
Mean time between failures (MTBF):	617085 uur
Quality of Service (QoS):	Ja
Access Control List (ACL):	Ja
Power over Ethernet (PoE):	Nee
Switchingcapaciteit:	20 Gbit/s
MAC-adrestabel:	8192 entries
10G support:	Nee
IGMP snooping:	Ja
Switch type:	Managed
Multicast-ondersteuning:	Ja
Aantal basis-switching RJ-45 Ethernet-poorten:	8
Switch-laag:	L2
Type basis-switching RJ-45 Ethernet-poorten:	Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF:	2
Jumbo Frames ondersteuning:	Ja
Port mirroring:	Ja
Spanning tree protocol:	Ja
Verbindingsaggregatie:	Ja
Full duplex:	Ja
DHCP-functies:	DHCP relay
Beheerprotocollen:	SNMP v1, v2c, v3
Bedrijfstemperatuur (T-T):	-40 - 75 °C
Code geharmoniseerd systeem (HS):	85176990
Verzending snelheid:	14.88 Mpps
Jumbo frames:	10240
DIN rail bevestiging:	Ja
Broadcast stormbeheer:	Ja
Store-and-forward:	Ja
System event log:	Ja
Authenticatie type:	RADIUS
Locatie-instellingen (CLI) configureren:	Ja
BPDU filtering / bescherming:	Ja
Authenticatie:	Gast-VLAN
Aantal gefilterde multicast-groepen:	256
