Pagina 1/188

TRENDnet User’s Guide

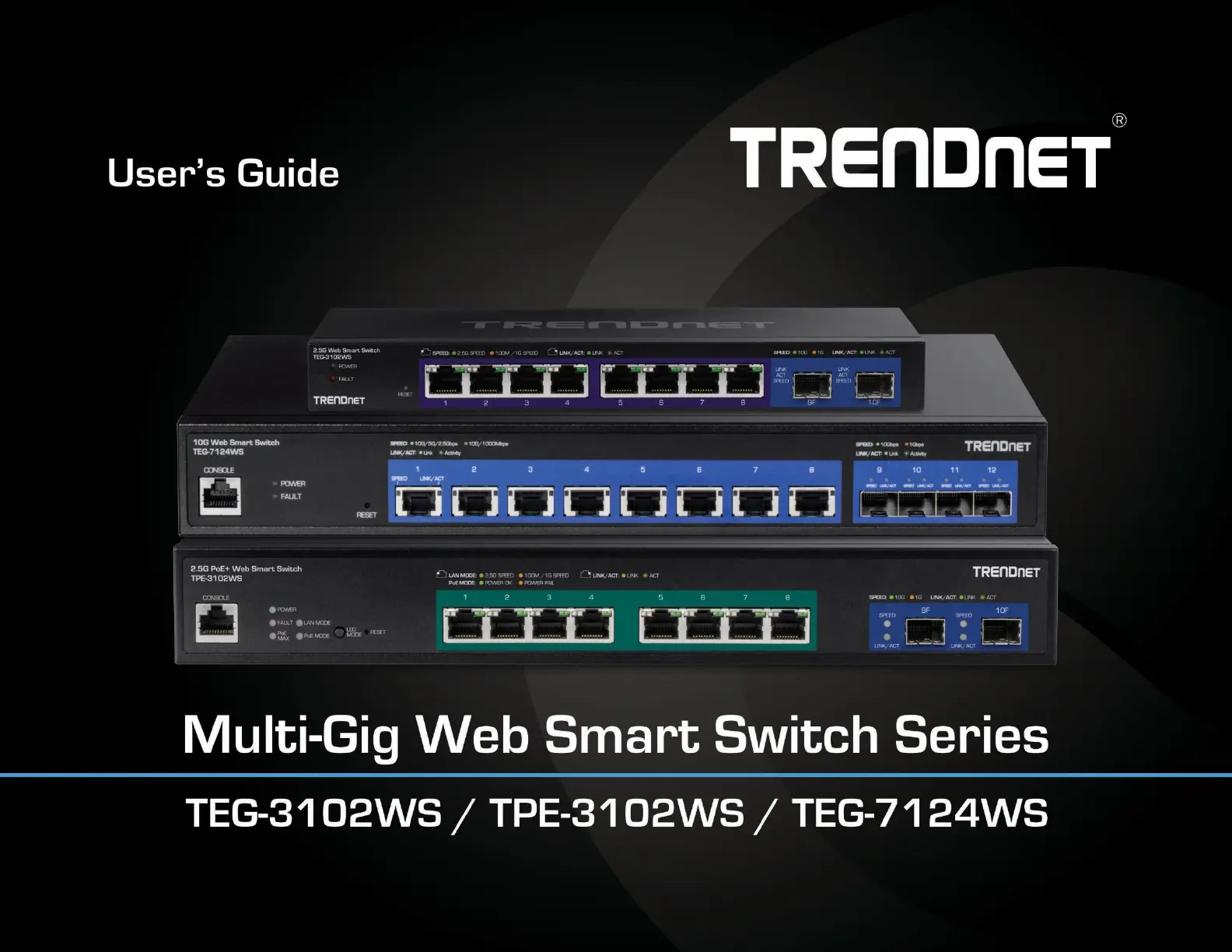

Cover Page



© Copyright 2022 TRENDnet. All Rights Reserved.


TRENDnet User’s Guide
Table of Contents
a
Thank you for purchasing your new TRENDnet PoE Web Smart Switch!



Please note: The scope of this user's guide encompasses multiple
products with varying features. Images, artwork, and other specificities
including port count, interfaces etc. may not be identical to the model
you purchased. Please consult the specific model specifications for your
unit for a full list of supported features.



Please ensure your switch’s firmware version is V2.10.010 or newer for
Layer 2+ management features. See the Firmware Upgrade section in
this document for additional information regarding the firmware upgrade
procedure.



Table of Contents
PoE Web Smart Switch Series Product Overview .............................. i
TEG-3102WS Overview .................................................................................................... i
Package Contents ................................................................................................................. i
TPE-3102WS Hardware Features ......................................................................................... i
TPE-3102WS Overview .................................................................................................. iii
Package Contents ............................................................................................................... iii
TPE-3102WS Hardware Features ....................................................................................... iii
TEG-7124WS Overview ................................................................................................... v
Package Contents ............................................................................................................. viii
TEG-7124WS Hardware Features .................................................................................... viii
Switch Installation .......................................................................... 1
Desktop Hardware Installation ...................................................................................... 3
Rack Mount Hardware Installation ................................................................................ 4
Setup Wizard ................................................................................................................. 5
Basic IP Configuration .................................................................................................... 8
Connect additional devices to your switch .................................................................. 10
Access your switch management page........................................................................ 11
Dashboard ................................................................................................................... 11
View your switch status information ............................................................................... 11
Real-time Statistics ...................................................................................................... 13
View your switch status information ............................................................................... 13
System .......................................................................................... 13
System Settings ........................................................................................................... 13
Set your system information............................................................................................ 13
L3 Feature .................................................................................................................... 15
IPv4 Interface ................................................................................................................... 15
IPv4 ARP Aging Time ........................................................................................................ 16

Product specificaties

Merk:	Trendnet
Categorie:	Schakelaar
Model:	TEG-7124WS
Kleur van het product:	Zwart
Gewicht:	1960 g
Breedte:	325 mm
Diepte:	230 mm
Hoogte:	44 mm
Geluidsniveau:	39 dB
Materiaal behuizing:	Metaal
LED-indicatoren:	Ja
Vormfactor:	1U
Certificering:	CE, FCC, UL
Netwerkstandaard:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
Aantal ventilatoren:	1 ventilator(en)
Web-gebaseerd management:	Ja
Rack-montage:	Ja
Mean time between failures (MTBF):	53900 uur
Quality of Service (QoS):	Ja
VLAN=ondersteuning:	Ja
Access Control List (ACL):	Ja
IPv4- & IPv6-functies:	IPv4/IPv6 access-control list (ACL)
Stapelbaar:	Ja
Switchingcapaciteit:	240 Gbit/s
MAC-adrestabel:	32000 entries
10G support:	Ja
Aantal VLANs:	256
Switch type:	Managed
Multicast-ondersteuning:	Ja
Aantal basis-switching RJ-45 Ethernet-poorten:	8
Switch-laag:	L2/L3/L4
Type basis-switching RJ-45 Ethernet-poorten:	10G Ethernet (100/1000/10000)
Packet buffergeheugen:	16 MB
Jumbo Frames ondersteuning:	Ja
Port mirroring:	Ja
Spanning tree protocol:	Ja
Verbindingsaggregatie:	Ja
Full duplex:	Ja
Beheerprotocollen:	HTTP/HTTPS
IP routing:	Ja
Bedrijfstemperatuur (T-T):	0 - 50 °C
Relatieve vochtigheid in bedrijf (V-V):	0 - 90 procent
Verzending snelheid:	178.56 Mpps
Jumbo frames:	1
MIB-ondersteuning:	RMON MIB RFC 1271, LLDP MIB IEEE 802.1ab, RFC 1213 MIB II, RFC 1643 Ethernet intf MIB, RFC 1493 bridge MIB
Bescherming lus:	Ja
Aantal geïnstalleerde SFP+ modules:	4
Multicast MAC adrestabel:	256 entries
Head-of-line (HOL) blocking:	Ja
IP-MAC-Port binding:	Ja
Statische route:	Ja
Multicast Listener Discovery (MLD) snooping:	v1, v2
Aantal IP-interfaces:	6
Aantal 10G Ethernet (koper)poorten:	8
