10G SFP+ Media Converter
Expand Your Ethernet Network
MC420L
For technical support and other information, please visit
https://support.omadanetworks.com/, or simply scan the QR code.
To ask questions, find answers, and communicate with TP-Link
users or engineers, please join the TP-Link Community.
Fiber Cable
Package Contents: Media Converter, Power Adapter, User Guide

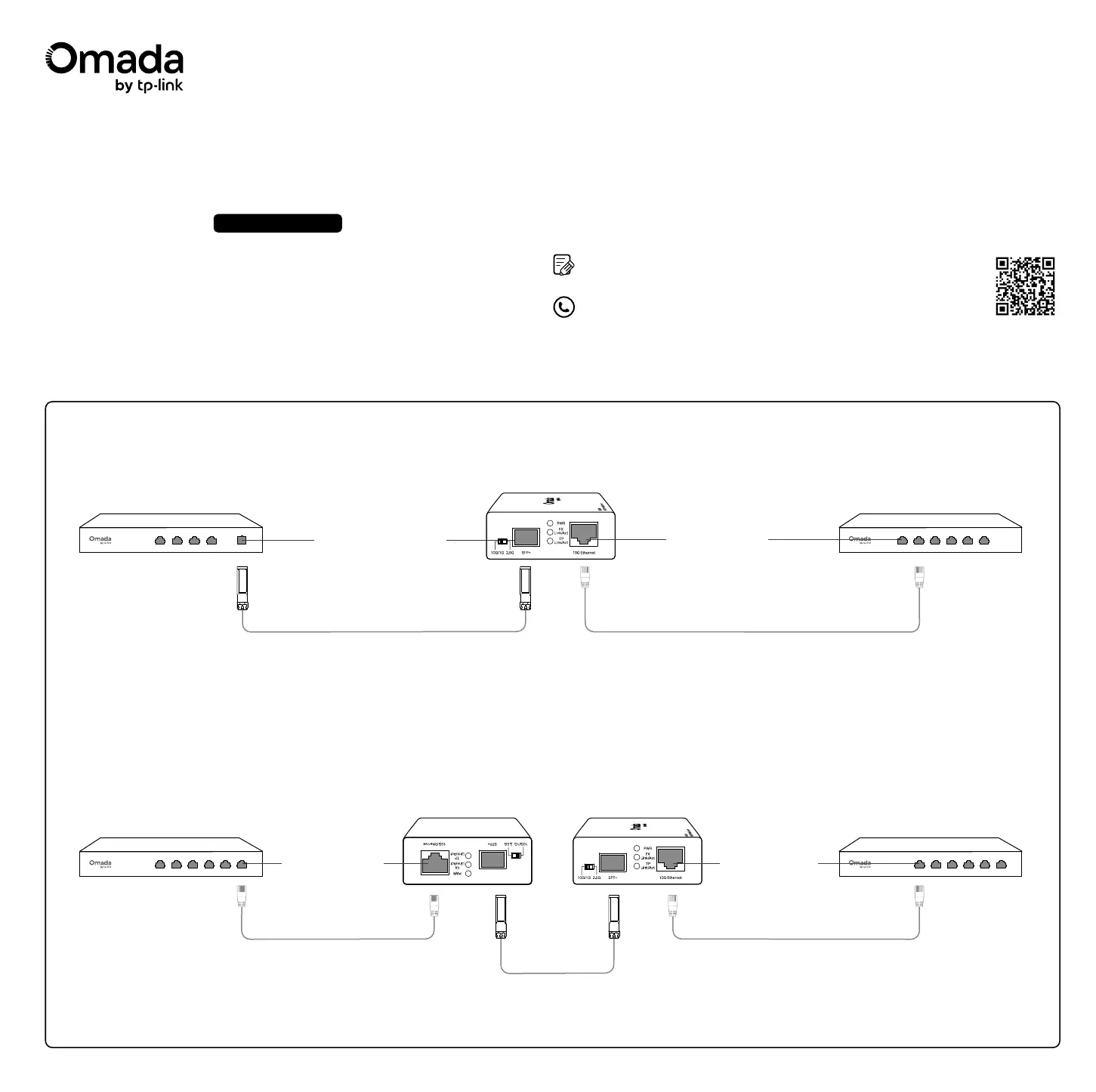

Scenario 1: Connect Devices with and without Optical Interfaces
Ethernet Device
with Optical Interfaces
Media Converter
10GBASE-SR Interface
Ethernet Device
without Optical Interfaces
Twisted-Pair Cable
Note:
Two converters with a pair of SFP/SFP+ modules can work cooperatively.
Scenario 2: Connect Devices without Optical Interfaces
Fiber Cable
Twisted-Pair Cable Twisted-Pair Cable
Ethernet Device
without Optical Interfaces
Media Converter Media Converter
Ethernet Device
without Optical Interfaces
SFP/SFP+ Module
SFP/SFP+ Module
SFP/SFP+ Module
Ethernet Interface
Ethernet Interface
Note:
1. Using an Omada SFP+ module on the MC420L is recommended, as modules from other vendors may be incompatible.
2. MC420L features a DIP switch for mode selection. The 10G/1G Mode is enabled by default (switch toggled left). To activate the 2.5G Mode, toggle the switch to the right.
3. When using the 1G SFP module, you might have to manually set the edge device connected to the Ethernet port to a rate of 1 Gbps.
Ethernet Interface
© 2025 TP-Link 7100000874 REV2.0.1
EU declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of
directives 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/
UK declaration of conformity
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the
Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016.
The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca/
Specications
IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an,
IEEE802.3z, IEEE802.3ae, IEEE802.3x
PWR, FX Link/Act, TP Link/Act
SFP+ port, RJ-45 jack
1000BASE-T/2.5GBASE-T/5GBASE-T:
4-pair UTP/STP of Cat. 5e or above (maximum 100m)
10GBase-T:
4-pair UTP of Cat. 6 (maximum 55m), 4-pair UTP of Cat. 6a
(maximum 100m),
or 4-pair STP of Cat. 6 or above (maximum 100m)
Depends on the used SFP/SFP+ module
External Power Adapter: 9V/0.6A
Standards
LED
Twisted-Pair
Interface
General Specifications
Fiber &
Wave Length
Power
Operation Temperature 0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Storage Humidity 5% to 90%RH non-condensing
Operation Humidity 10% to 90%RH non-condensing
Environmental and Physical Specifications
LED Explanation
On: Power on
O: Power o
PWR
10G/1G Mode: SFP+ port linked at 10 Gbps
2.5G Mode: SFP+ port linked at 2.5 Gbps
Link/Act
FX
TP
Solid Green
Solid Yellow
Flashing
O
Solid Green
Solid Yellow
Flashing
O
10G/1G Mode: SFP+ port linked at 1 Gbps
2.5G Mode: SFP+ port linked at 1 Gbps
SFP+ port is transmitting or receiving data
SFP+ port not linked
10G/1G Mode: RJ45 port linked at 10 Gbps
2.5G Mode: RJ45 port linked at 2.5 Gbps
10G/1G Mode: RJ45 port linked at 1G/2.5G/5 Gbps
2.5G Mode: RJ45 port linked at 1 Gbps
RJ45 port is transmitting or receiving data
RJ45 port not linked
FAQ
A: Yes. Before inserting the SFP module, make sure you toggle the DIP switch to the
2.5G Mode. In this mode, the media converter supports the IEEE 802.3bz and
2500Base-X protocols. You may need to adjust the rate of the edge device to 2.5
Gbps manually.
Is the media converter compatible with a 2.5G SFP module?
Explanation of the symbols on the product label
產品標籤上符號的解釋
Note: The product label can be found at the bottom of the product.
Symbols may vary from products.
注意：產品標籤可在產品底部找到。符號可能因產品而異。
Symbol
符號
Explanation
說明
Class II equipment
二級設備
Class II equipment with functional earthing
具有接地功能的二級設備
Alternating current
交流電
Direct current
DC 電壓
Polarity of d.c. power connector
輸出端點的極性
For indoor use only
僅供室內使用
Dangerous voltage
危險電壓
Caution, risk of electric shock
請注意，有觸電的危險
Energy eciency Marking
能源效率標誌
Protective earth
保護接地
Earth
接地
Frame or chassis
框架或外殼
Functional earthing
功能接地
Caution, hot surface
請注意，表面過熱
Caution
警告
Operator's manual
操作手冊
Stand-by
待機
"ON"/"OFF" (push-push)
“開啟”/”關閉”（按壓式）
Fuse
保險絲
Fuse is used in neutral N
保險絲用於中性線 N
RECYCLING
回收
This product bears the selective sorting symbol for Waste electrical
and electronic equipment (WEEE). This means that this product must
be handled pursuant to European directive 2012/19/EU in order to be
recycled or dismantled to minimize its impact on the environment.
User has the choice to give his product to a competent recycling
organization or to the retailer when p2-he buys a new electrical or electronic
equipment.
這個產品帶有歐盟指令 2012/19/EU 中關於廢棄電氣電子設備（WEEE）的
選擇性分類標誌。這意味著，該產品必須按照該指令處理，以便進行回收
或拆解，從而最大限度地減少對環境的影響。
用戶可以選擇將產品交給有資格的回收機構，或在購買新的電器或電子設
備時將其交給零售商進行回收。
Caution, avoid listening at high volume levels for long periods
請小心，避免長時間以高音量收聽。
Disconnection, all power plugs
斷線，所有電源插頭
m
Switch of mini-gap construction
迷你間隙結構開關
µ
Switch of micro-gap construction (for US version)
Switch of micro-gap / micro-disconnection construction (for other
versions except US)
小間隙結構開關（US 版本）
小間隙/小斷開結構的開關（非 US 版）
ε
Switch without contact gap (Semiconductor switching device)
無接觸間隙的開關（半導體開關設備）
Safety Information
Keep the device away from water, re, humidity or hot environments.
Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
Do not use damaged charger or USB cable to charge the device.
Do not use any other chargers than those recommended.
Adapter shall be installed near the equipment and shall be easily accessible.
Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
Do not point or stare directly into the beam or into the optical port of the transceiver when it is operating, as this can
injure your eyesight.
Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any
questions, please don't hesitate to contact us.
FCC STATEMENT
Responsible party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: sales.usa@tp-link.com
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Product Name: 10G SFP+ Media Converter
Model Number: MC420L
Responsible party:
TP-Link Systems Inc.
Address: 10 Mauchly, Irvine, CA 92618
Website: https://www.tp-link.com/us/
Tel: +1 626 333 0234
Fax: +1 909 527 6804
E-mail: sales.usa@tp-link.com
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the
applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the
equipment is properly maintained and operated.
Issue Date: 2025-01-14
Product Name: Power Adapter
Model Number: T090060-2B1
Component Name Model
Power Adapter T090060-2B1
This is a class A product. In a domestic environment, this product may cause radio interference, in which case the user
may be required to take adequate measures.
CE Mark Warning
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам нормативних документів
та вимогам, що передбачені чинними законодавчими актами України.
CAN ICES-3 (A)/NMB-3(A)
Industry Canada Statement
限用物質含有情況標示聲明書
產品元件名稱
PCB
外殼
電源供應器
其他及其配件
限用物質及其化學符號
備考1： "○"係指該項限用物質之百分比含量未超出百分比含量基準值。
備考2： " - " 係指該項限用物質為排除項目。
○ ○ ○ ○○
○ ○ ○ ○ ○
鉛
Pb
○
○
-
-
鎘
Cd
○
○
汞
Hg
○
○
六價鉻
Cr
+6
○
○
多溴聯苯
PBB
○
○
多
溴二苯醚
PBDE
○
○
BSMI Notice
安全諮詢及注意事項
請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
注意防潮，請勿將水或其他液體潑灑到本產品上。
插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
請不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。
警告：為避免電磁干擾，本產品不應安裝或使用於住宅環境。

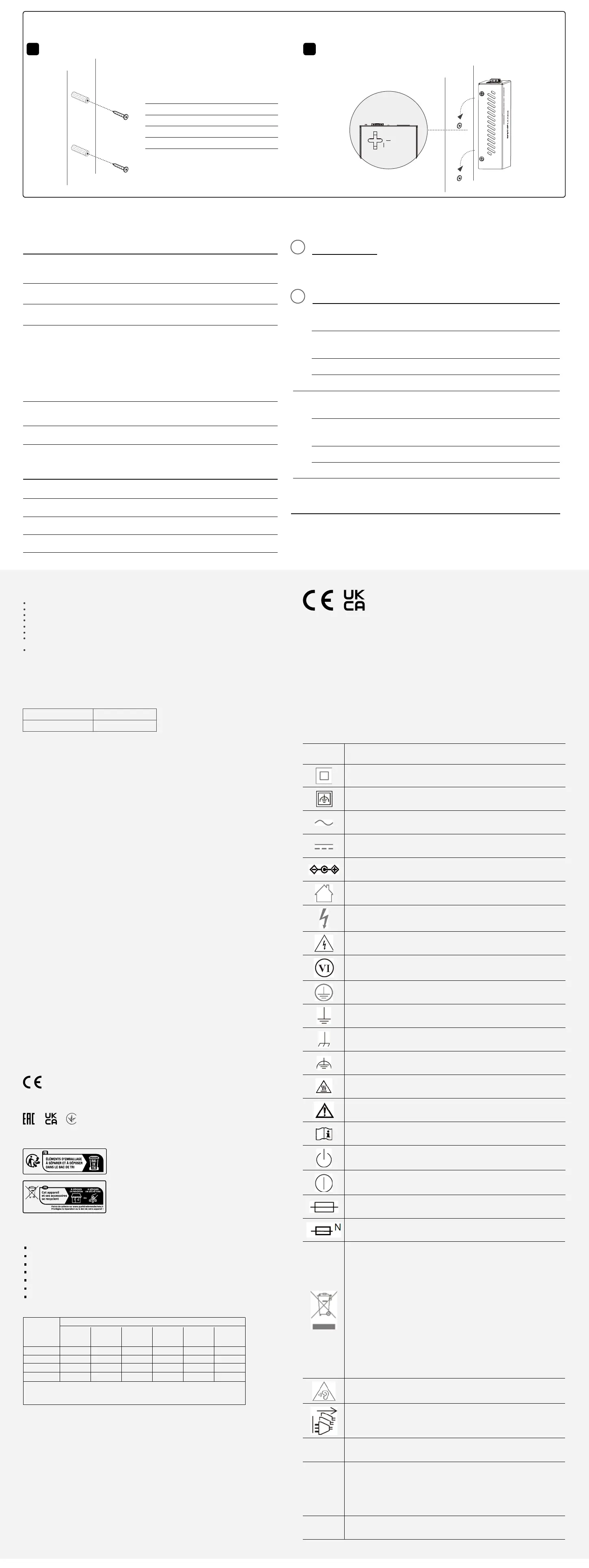

Wall-Mounting Installation
Attach the media converter to the mounting bracket by sliding the adapter
in the direction of the arrows until it locks into place.
2
Drill two holes in the wall and insert screws (not provided in the package)
into the holes.
1
Screw Specications
Screw Standard of ANSI B1.1 #4, #6, #8
7mmMinimum Length
1.5mmScrew-Head-to-Wall Minimal Distance
57.5mmWall-Mounting Holes Distance
