© MuxLab Inc. 2018 94-000825-B SE-000825-B

2321 Cohen St, Montreal, QC Canada H4R 2N7

Tel: (514) 905-0588 Fax: (514) 905-0589

Toll Free (North America): (877) 689-5228

E-mail: info@muxlab.comURL: www.muxlab.com

Specifications

Environment

HDMI 2.0a

Devices

Ultra HD Blu-Ray, projectors, monitors, TV, PC, laptops.

Transmission

Transparent to the user.

Video Bandwidth

18 Gbps

Frequency Range

25 to 600 MHz

Signals

HDMI 2.0a protocol.

HDCP

Revision 1.4 & 2.2 compliant.

Connectors

HDMI receptacle.

Dip Switch

For setting the EDID to be sent to the source (pins: 2, 3 and 4).

(Note: Pin 1 is used to select between normal operation and firmware updates via

the USB service port.)

LEDs

Power: Blue

Input & Output Link: Green

Resolution

480i to 1080p @ 50/60 FPS

1080p @ 24/50/60 FPS

3840 X 2160 @ 24/25/30/60 FPS

Color

8, 10 & 12 bit

Audio

LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master

Audio and DTS:X

Cable

HDMI cable of appropriate length for video resolution selected.

Power Supply

One (1) 110-240V/5VDC , 4A power supply

Temperature

Operating: 0° to 40°C Storage: -20° to 60°C

Humidity: up to 90% non-condensing

Enclosure

Metal enclosure

Bracket

Included

Dimensions

9.53” x 3.82” x 1.00” (242 mm x 97 mm x 25 mm)

Weight

3.2 lbs (1.45 Kg)

Compliance

Regulatory: FCC, CE, RoHS

Warranty

2 years

Order Information

500427HDMI 1X8 Splitter, 4K/60 (UPC: 627699004272)

HDMI 1X8 Splitter, 4K/60 (500427)

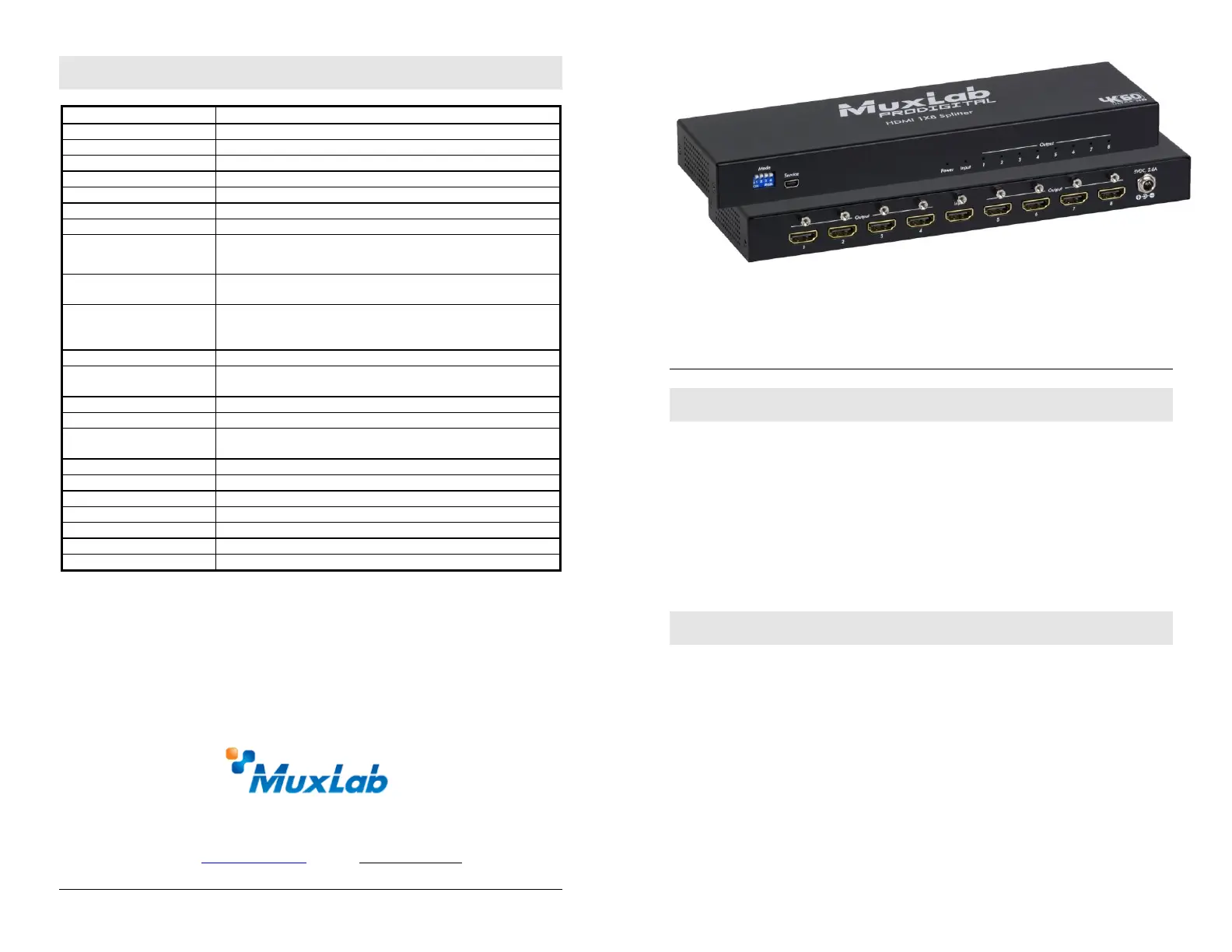

Quick Installation Guide

Overview

The HDMI 1x8 Splitter (500427) allows one (1) HDMI source to be distributed to

up to eight (8) HDMI displays. The splitter supports up to 4K (3840 X 2160)

video, HDR and HD audio. The splitter is HDCP 1.4 & 2.2 compliant, supports

EDID management and features LED diagnostics. Each output supports an

independent down-scaler from 4K to 1080p, depending on the connected display.

Additionally, all connectors are on the rear panel for neater cabling. Applications

include; commercial and residential AV systems, classroom projector systems,

digital signage, boardroom systems, collaborative PC systems, medical information

systems.

Pre-Installation Check

Identify the connectors as indicated on the product diagram above. LEDs are

located on the front and the connectors and mode switch on the rear.
