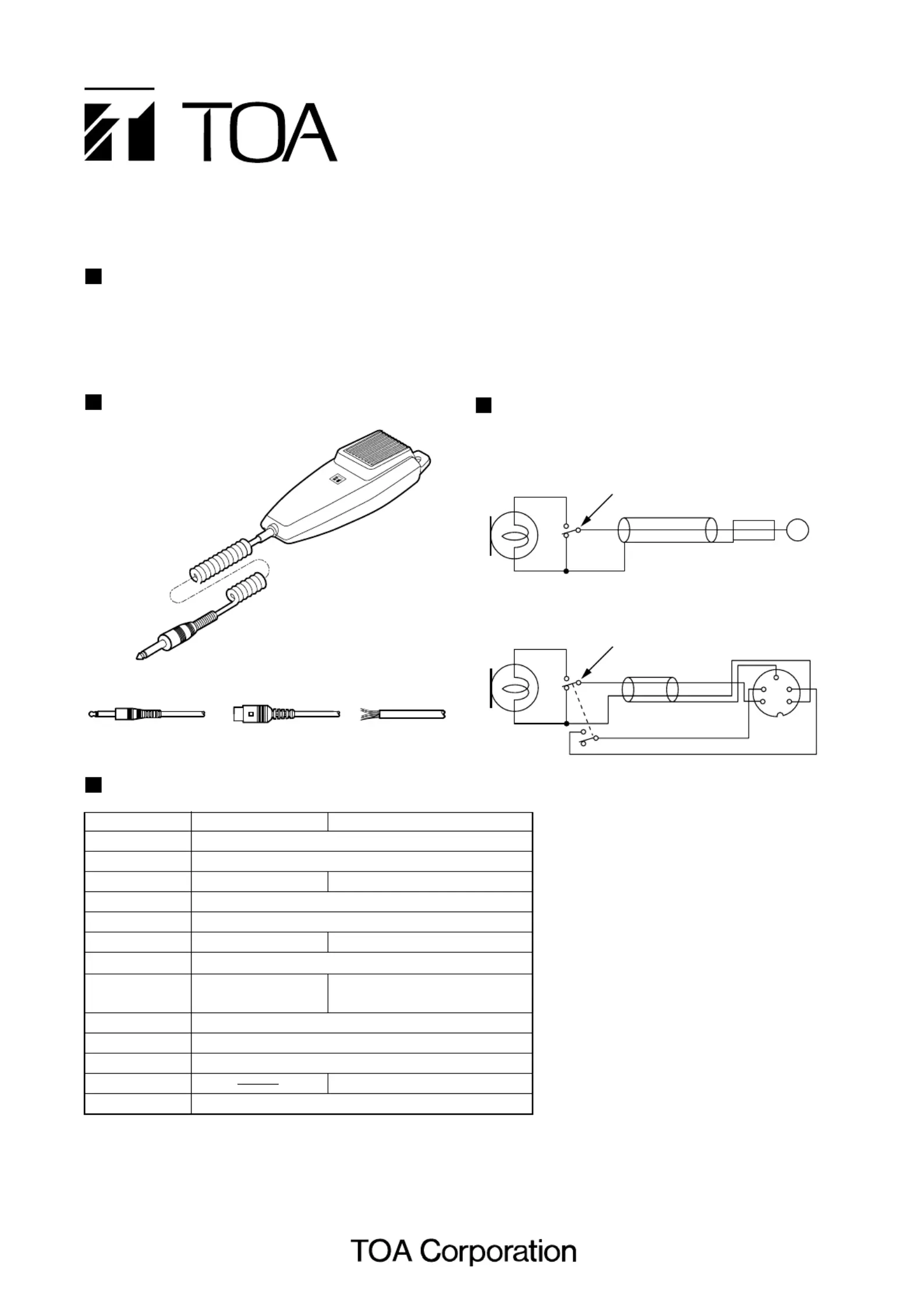

APPEARANCE
PM-222
PM-222D
PM-222U
MICROPHONE
The PM-222 series is a close-talking microphone for making general announcements. It comes with a talk switch that can
be locked. The PM-222D and PM-222U are provided with the function to remotely control both the amplifier power and
chime operation. Refer to the amplifier instruction manual for details of the remote control function and connections to the
amplifier.
Push-to-talk switch
ON
OFF
Phone plug
Push-to-talk switch
ON
OFF
5-pin DIN
plug
1
3
4
2
5
Black
Red
Shield
White
Yellow
* This specification is subject to change without notice.
• PM-222
• PM-222D/U
Model No.
Type
Directivity
Rated Impedance
Rated Sensitivity
Frequency Response
Cable
Cable length
Terminal
Weight
Dimensions
Talk switch
Remote switch
Finish
PM-222PM-222D/-222U
Moving coil microphone
Unidirectional
600 , unbalanced600 , balancedΩΩ
-
47 dB (1 kHz 0 dB=1 V/Pa)
100 Hz-10 kHz
1-core shielded cable2-core shielded plus 2-core cable
2 m (when extended)
Phone plug
PM-222D: 5-pin DIN plug
PM-222U: No connector
200 g
44 (w) x 160 (h) x 38 (d) mm
Short-off type with lock
Make contact (linked with talk switch)
ABS resin, gray
PM-222PM-222D
Phone plug5-pin DIN plug
INSTRUCTION MANUAL
GENERAL DESCRIPTION
SPECIFICATIONS
CIRCUIT DIAGRAM
Printed in Indonesia
Note: The PM-222U is equipped with no connector.
PM-222U
No connector
• Accessories
Microphone holder ..............................1
Microphone holder metal fitting ..........1
Microphone holder screw ...................2
Product specificaties
| Merk: | Toa |
| Categorie: | Microfoon |
| Model: | PM-222D |
| Kleur van het product: | Grijs |
| Breedte: | 44 mm |
| Diepte: | 38 mm |
| Hoogte: | 160 mm |
| Snoerlengte: | 2 m |
| Gewicht verpakking: | 300 g |
| Materiaal behuizing: | Acrylonitrile butadiene styrene (ABS), Metal |
| Connectiviteitstechnologie: | Bedraad |
| Microphone direction type: | Unidirectioneel |
| Gevoeligheid microfoon: | -47 dB |
| Frequentie microfoon: | 100 - 10000 Hz |
| Microphone input impedance: | 600 Ohm |
| Aantal producten inbegrepen: | 1 stuk(s) |
| Gewicht microfoon: | 200 g |
