This product is intended for installation only by expert users. Please consult with a qualified technician for installation.

Improper installation may result in damage to your equipment.

Before you start using this product please follow these basic guidelines:

1. Please carefully read through the instruction manual before beginning the installation process.

2. Please remove your graphics card from your motherboard to insure the safest process and in order to prevent any possible

damages to your CPU and motherboard.

3. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant Series.

Scan Here

Installation Guide

Pacific W9

AM3/AM2/FM2/FM1

AM4

AMD

LGA1700

LGA1200/1156/1155/1151/1150

Intel

A x 1

B x 1

C x 1

D x 4

F x 4

G x 4

H I x 4 x 4

J K x 1 x 1

L x 2

M x 1

E x 4

Water Block

AMD clip

Thermal grease

Screw

Screw Screw

Washer

Backplate

Screw Screw

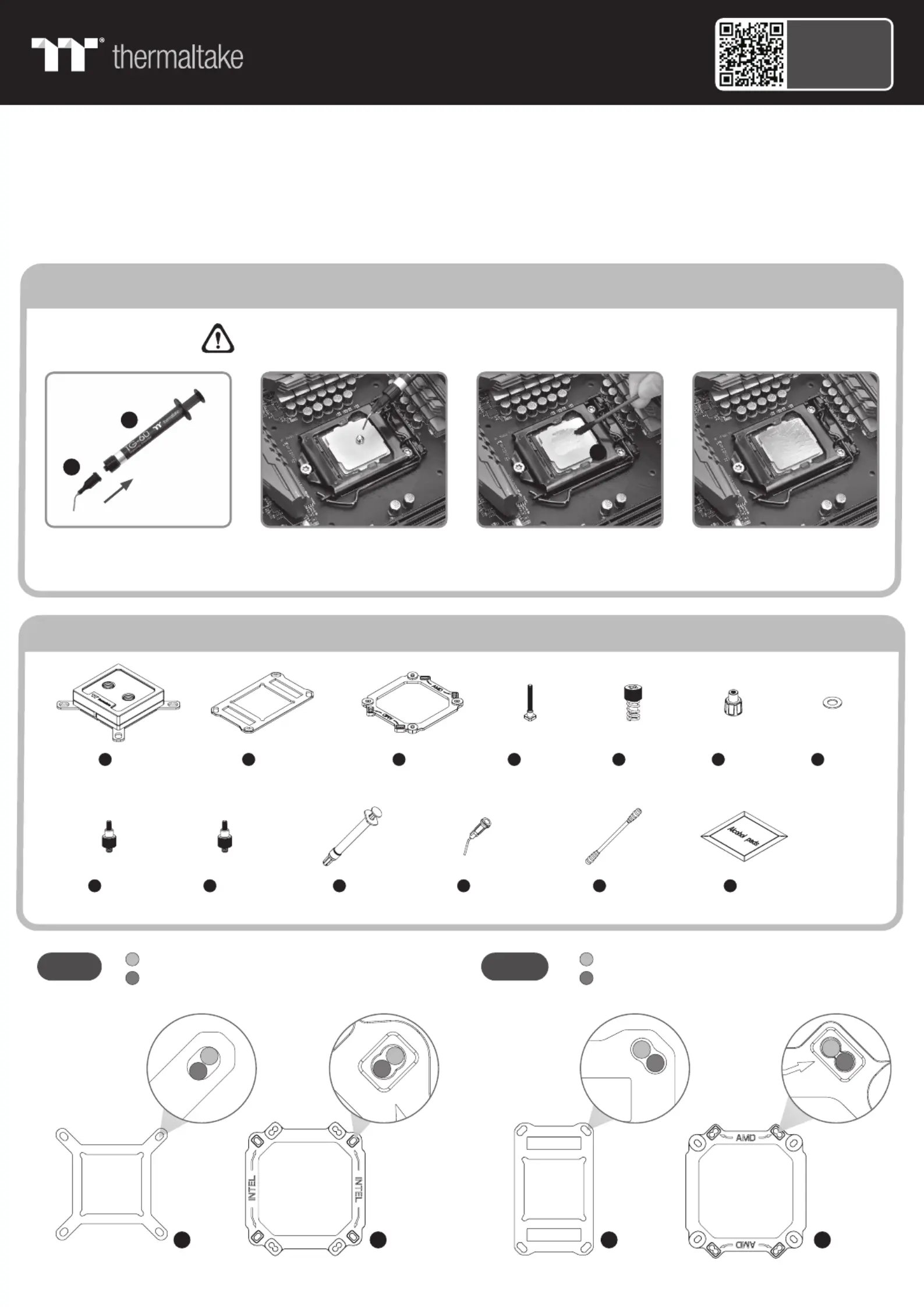

Parts List

Pinhead

Cotton swabs

Alcohol pads

Install the pinhead of TG-60. Squeeze certain amount of Liquid

Metal Thermal Grease on the CPU.

(Please wipe it out if overflowed)

Apply the thermal grease evenly

by cotton swabs.

Complete.

WARNING: Avoid Aluminum Materials

Thermal Grease Application Method

(Black) (Silver)

LGA 1700/1200/115X

LGA 2066,2011-3,2011

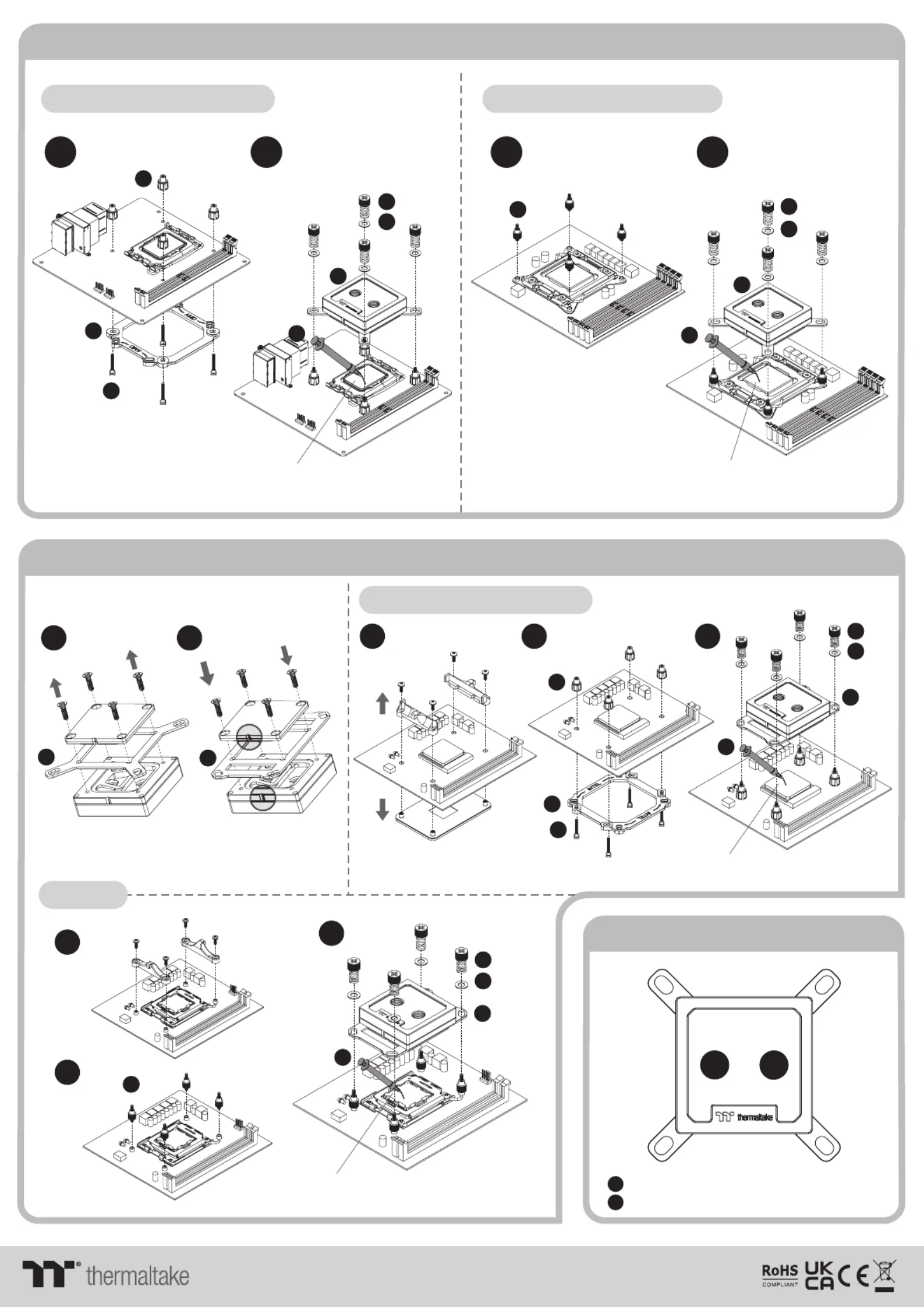

AMD Installation Guide

Intel Installation Guide

1 1

2 2

Out : Circle 1 is designed for liquid outlet

In : Circle 2 is designed for liquid inlet/fill

Installation Guide

OUT

Please refer to "Thermal Grease

Application Method"

Please refer to "Thermal Grease

Application Method"

Please refer to "Thermal Grease

Application Method"

Please refer to "Thermal Grease

Application Method"

AM4/AM3/AM2/FM2/FM1

AM5
