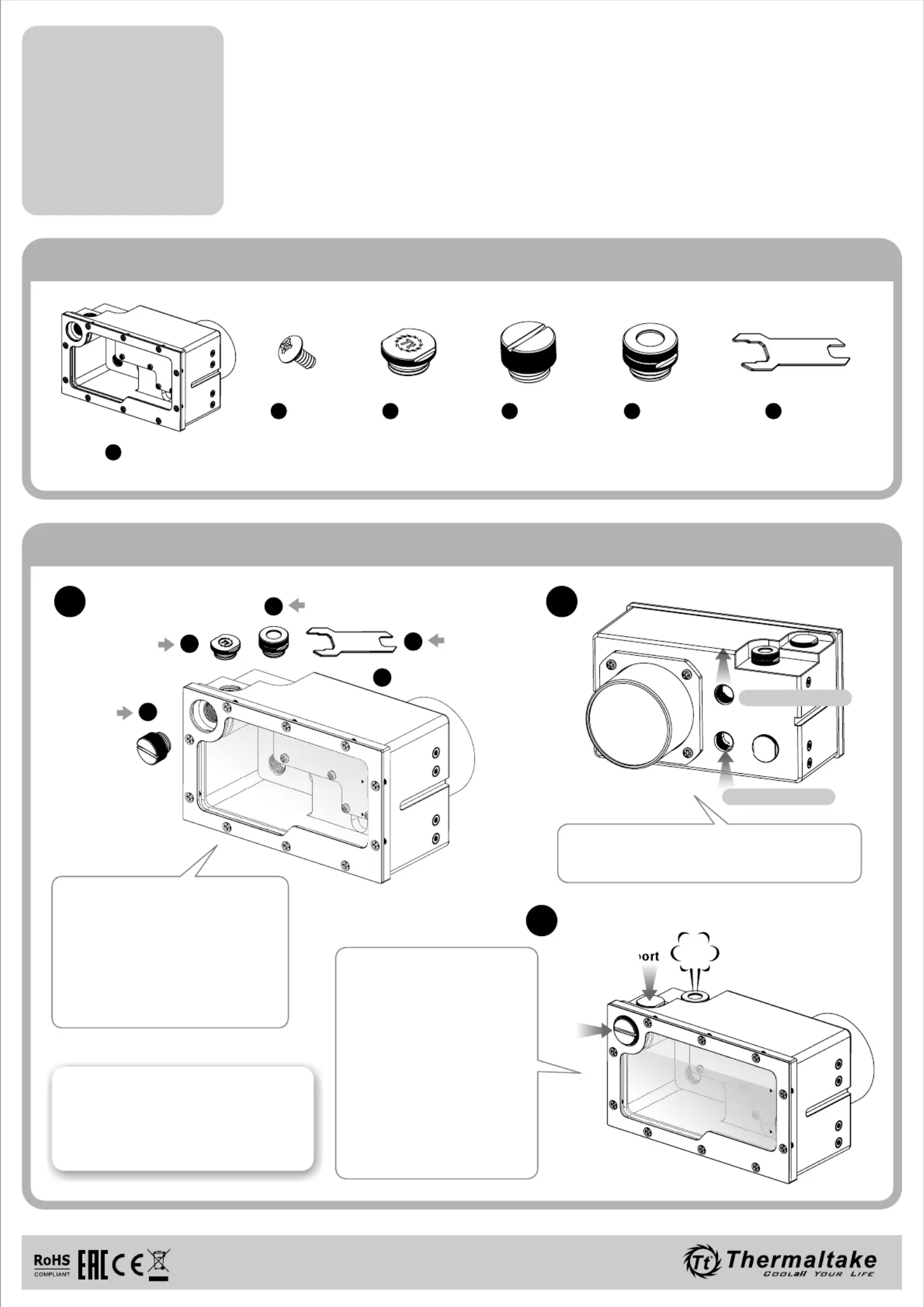

This product is intended for installation only by expert users. Please consult with a qualified technician for

installation. Improper installation may result in damage to your equipment.

1. Please carefully read the manual before beginning the installation process !

2. It is strongly recommended to use market proven pre-mix coolant, such as Thermaltake Coolant 1000.

3. DO NOT USE any kind of alcohol or alcohol derivatives with this reservoir or the acrylic tube may crack

and fail ! Do not clean it using alcohol either !

Pacific

PR2U

Pacific PR2U Pump + Reservoir

Installation Guide

Parts List

Screw G1/4 Stop Plug

WrenchPressure

Equalizer Plug

Pump + Reservoir

A x 1

B x 8

C x 2

D E F x 1 x 1 x 1

Caution

1. Do not soak the pressure equalizer plug in

water / coolant

2. Please drain your loop and seal the fill port

with stop plug before transporting your PC

Pressure equalizer plug

G1/4 Stop Plug

Stop Plug

Wrench

Pump + Reservoir

G1/4 Stop Plug

Place the Pacific PR2U in your

5.25" drive bay with the front

plate facing outwards. Secure

the reservoir to the drive bay

cage using the enclosed M3

screws(B) x 8.

1 2

Use any two of G1/4 threaded ports on the

back of reservoir as an outlet or inlet port.

Fill the reservoir through

G1/4 threaded fill ports.

Thermaltake recommends

to install the pressure

equalizer plug on the top of

the reservoir allowing air

and pressure to

automatically pass through

the plug preventing

pressure buildup in your

loop.

Pump + Reservoir

HIG H

LO W

Outlet G1/4 port

Inlet G1/4 port

Fill p

Fill port

HIG H

LOW

Product specificaties

Merk:	Thermaltake
Categorie:	Hardwarekoeling
Model:	Pacific PR2U
Kleur van het product:	Zwart
Gewicht:	933 g
Breedte:	147.9 mm
Diepte:	104.9 mm
Hoogte:	84.8 mm
Maximale temperatuur (in bedrijf):	55 °C
Certificering:	Tt LCS
Materiaal:	Polymethyl methacrylate (PMMA), Polyoxymethylene (POM)
Connectie draad:	1/4 "
Koelmiddel:	Vloeistof
Coolant capaciteit:	0.25 l
