Thermalright Peerless Assassin 140 SE Handleiding
Pagina's 1 Hardwarekoeling
Bekijk de handleiding van Thermalright Peerless Assassin 140 SE gratis online of download de PDF. 12 mensen vonden deze handleiding nuttig. Vraag over dit model? Stel een vraag
112*112mm
系 列
1200 黑色胶柱 x4
INTEL 螺丝 x4
1700 Standoffs x4
LGA115X/1700
背板 x1
散热器 x1
A
120mm风扇 x1
B
INTEL支架 x2
D
E
F
F1
H
I
G
J
KLM
C
140mm 风扇 x1
120mm风扇扣 x2140mm 风扇扣 x2
B1
INTEL LGA115X/1200
INTEL LGA115X/1200
INTEL LGA1700/1851
INTEL LGA1700/1851
PEERLESS ASSASSIN140 SE
PEERLESS ASSASSIN 140 SE
Series
AM4/AM5螺丝x4
导热膏 x1
1700蓝色胶柱 x4
Y型转接线 x1
AM4/AM5支架 x2
AM4 红色胶柱 x4
AMD AM4/AM5

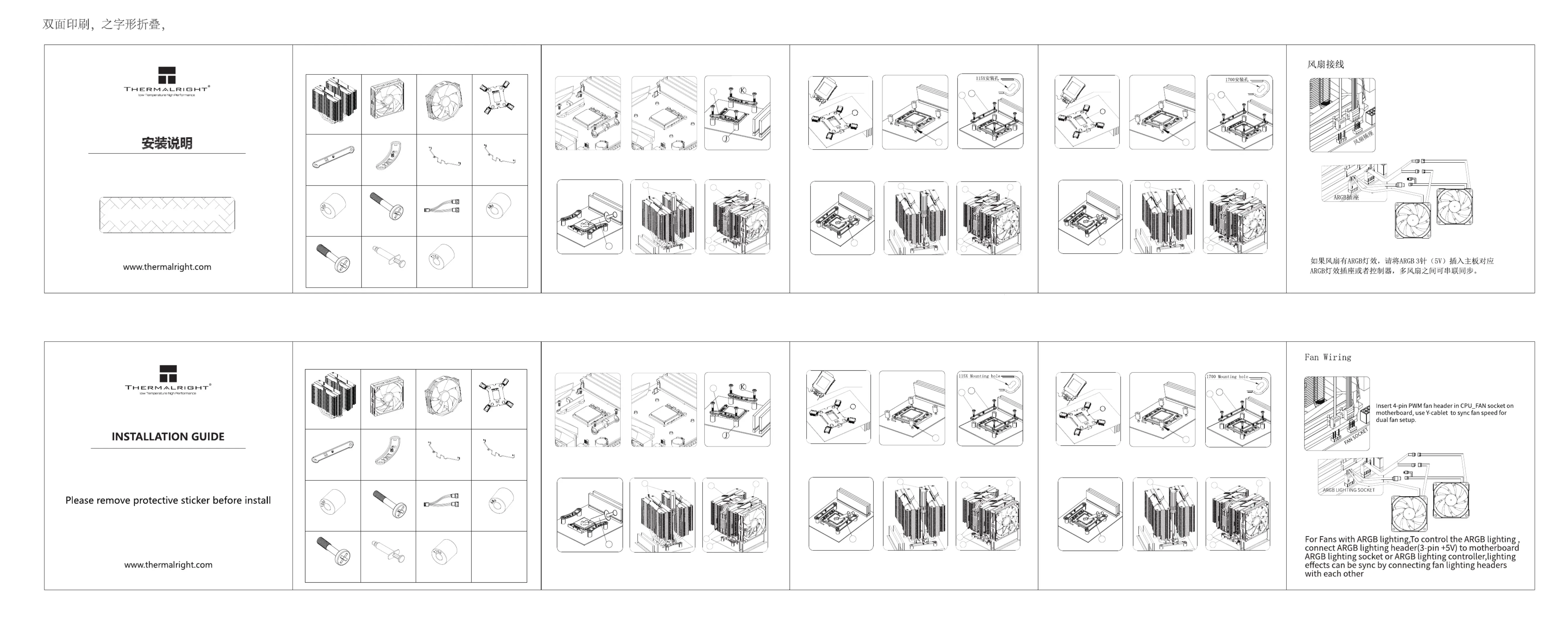

Parts List
配件清单
AMD AM4/AM5
移除AMD原装塑胶支架，保留背板;放置AM4/AM5胶柱，使用AM4/AM5螺丝
将支架固定到主板。
Remove AMD plastic brackets, Keep the back plate, install AM4/AM5
metal brackets with AM4/AM5 screws and AM4/ AM5 plastic standoffs
涂好导热膏，然后用螺丝刀锁好主体,再用风扇线扣固定风扇
涂好导热膏，然后用螺丝刀锁好主体,再用风扇线扣固定风扇
涂好导热膏，然后用螺丝刀锁好主体,再用风扇线扣固定风扇
Adjust backplate mounting hole position, install backplate from back side of
motherboard, place LGA115X/1200 standoffs from front side, install brackets
with screws.
Adjust backplate mounting hole position, install backplate from back side of
motherboard, place LGA1700 standoffs from front side, install brackets with
screws.
！安装前请先去除铜底保护膜
1200 Standoffs x4
INTEL x4Screw
LGA115X/1700
Backplate x1
Heatsink x1
A
120mm FAN x1
B
INTEL Bracket x2
D
E
F
F1
H
I
G
J
KLM
C
140mm FAN x1
120mm FAN Clip x2140mmFAN Clip x2
B1
AM4/AM5
Screw x4
Thermal Greasa x1
FAN Y Cable x1
AM4/AM5
Bracket
x2
AM4/AM5
Standoffs x4
Apply thermal compound on CPU,install the heatsink with a screw driver, and
install fans on heatsink with fan clips.
Apply thermal compound on CPU,install the heatsink with a screw driver, and
install fans on heatsink with fan clips.
Apply thermal compound on CPU,install the heatsink with a screw driver, and
install fans on heatsink with fan clips.
E
E
L
L
滑块位置
C
L
L
L
L
G
G
Slider
position
C
M
D
H
M
D
H
将背板【C】推到115X位置放置在主板背面,然后正面放置胶柱【G】,扣具【D】,
再用螺丝【H】固定住扣具。
将背板【C】推到1700位置放置在主板背面,然后正面放置胶柱【M】,扣具【D】,
再用螺丝【H】固定住扣具。
D
H
D
H
将风扇4针PWM接头插入主板 CPU FAN插座
如果使用双风扇,请使用Y型转接线。
B1
B
F
F1
B1
B
F
F1
B1
B
F
F1
A
B1
B
F
F1
A
B1
B
F
F1
A
B1
B
F
F1
A
A
A
C
Slider
position
滑块位置
C
