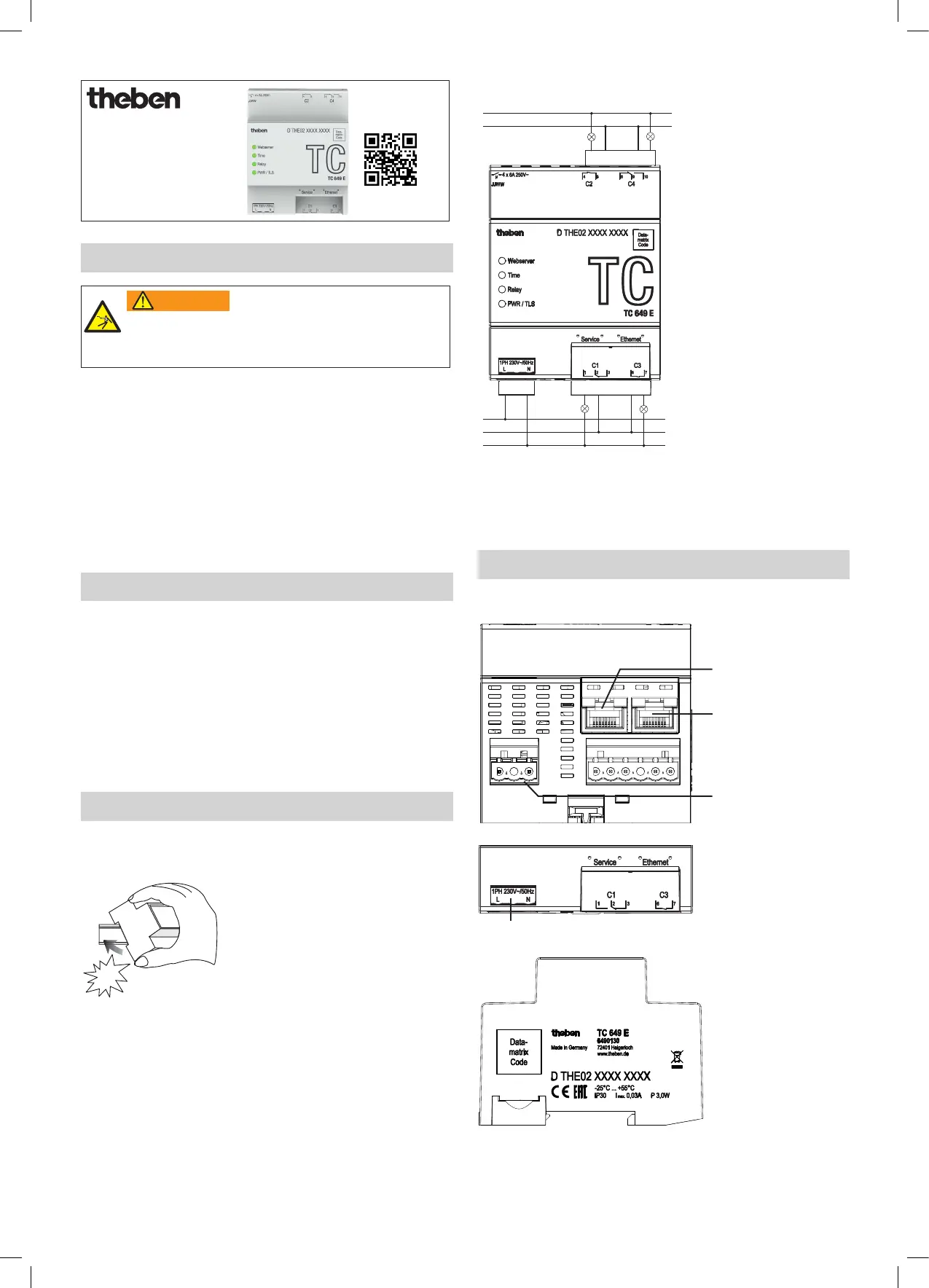

Installation and operating

instructions

310539 02

TC 649 E 6490130

Control box LAN

1. Basic safety information

Danger of death through electric shock or fire!

Installation should only be carried out by a qualied

electrician!

WARNING

•

The device is designed for installation on DIN top hat rails (in

accordance with IEC 60715)

•

It complies with product standard EN 60669-2-1

Do not operate the device outside the specied technical data

!

The device must be installed in an enclosed switchgear cabinet

made of metal or an appropriate re-resistant material!

!

After proper installation, the housing component under the

cover must not be accessible!

2. Proper use

Control box TC 649 E is an annual time switch with astronomical

function, which can be controlled and updated via LAN and managed

centrally from a computer. The control box is used for lighting and

ventilation.

!

Do not use on safety devices, e.g. escape route doors, re

safety equipment, etc.

Disposal

For an environmentally appropriate disposal, send the device back

to the owner

3. Installation and connection

Installing TC 649 E

click

Connecting TC 649 E

Connecting the power supply

Strip cable to 8 mm (max. 9 mm)

Insert the line into the terminal and fasten it

Plug terminal into power supply socket

Connect to power supply

▻During the start of the operating system, all LEDs are ashing.

After approx. 150 s the start process is completed and the

power LED (PWR/TLS) ashes.

Wiring diagram

L

L

N

L

LL

N

LL

L

N

LSwitch the load with a contactor.

!

If a load is switched directly, secure the device with a circuit

breaker of 6 A.

4. Device description

Connections

Service interface

Connection to LAN

network

Power supply

socket (230 V)

Voltage

LThe performance specications can be found on the side and on

the device shoulder (see picture). After installation they are not

visible any more!
