MMBZ30VCL-Q1 Dual Channel ESD Protection
1 Features
•Ultra Low I/O capacitance = 4.5pF (typical)
•Low leakage current <25nA
•Unidirectional ESD protection for 2 channels or
Bidirectional for 1 channel
•IEC 61000-4-2 ESD protection:
–±30kV contact discharge
–±30kV air-gap discharge
•ISO 10605 (330pF, 330Ω) ESD protection:
–±25kV contact discharge
–±30kV air-gap discharge
•AEC-Q101 qualified
•Temperature range: –55°C to +150°C
•Leaded packages used for automatic optical
inspection (AOI)
2 Applications
•Automotive in-vehicle networks
–Controller area network (CAN)
–Local interconnect network (LIN)
3 Description
The MMBZ30VCL-Q1 is a dual channel unidirectional
or single channel bidirectional ESD in a common
cathode configuration. The device's low capacitance
and low leakage features enable use in high speed
applications. The low dynamic resistance allows low
clamping voltage to help protect systems against
transient events. This protection is key as automotive
systems require a high level of robustness and
reliability when they control safety devices.
The MMBZ30VCL-Q1 is packaged in the SOT-23,
providing two channels of robust transient protection
in one space-efficient form factor.
Package Information
PART NUMBERPACKAGE
(1)
PACKAGE SIZE
(2)
MMBZ30VCL-Q1DBZ (SOT-23, 3)2.92mm × 2.37mm
(1)For more information, see Section 8.
(2)The package size (length × width) is a nominal value and
includes pins, where applicable.

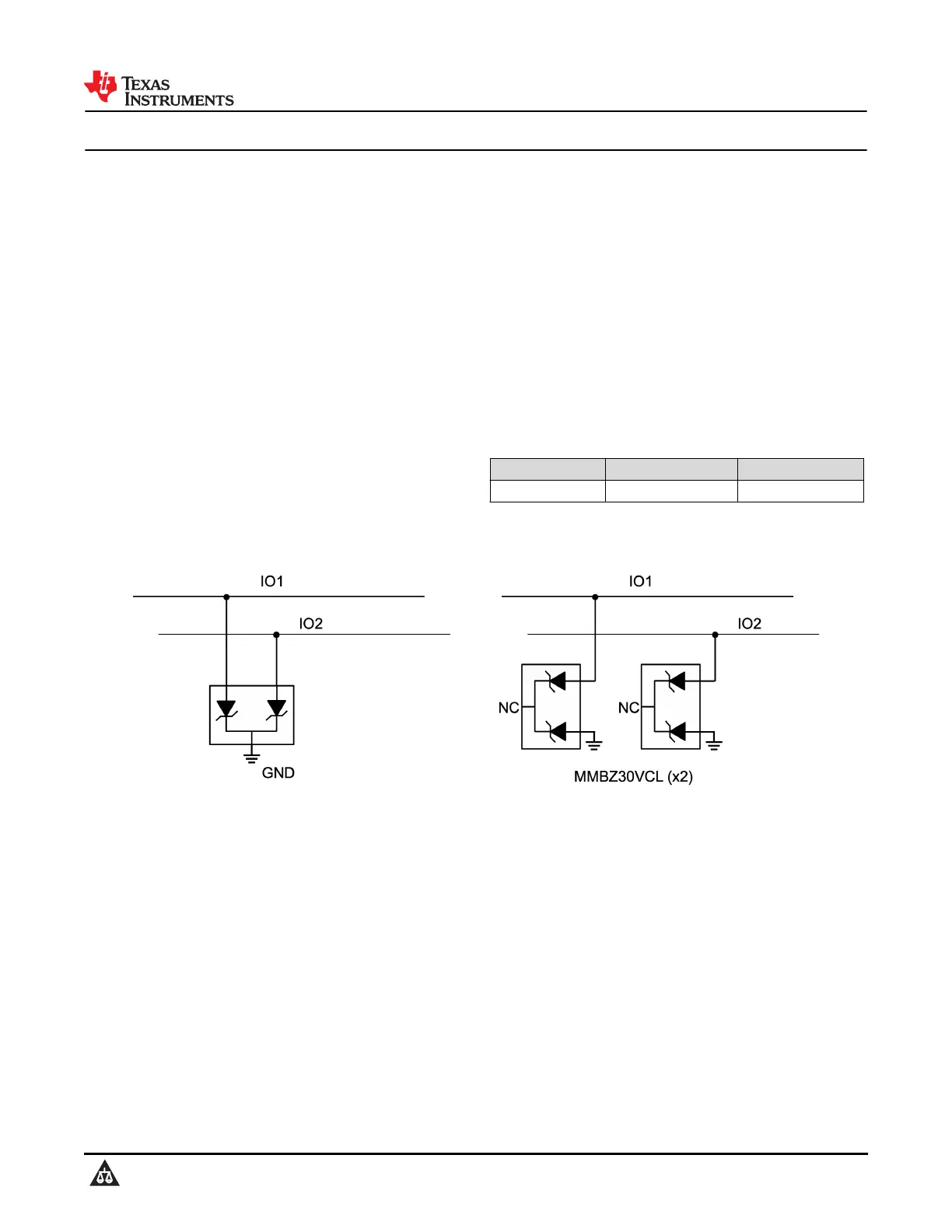

Typical Application
MMBZ30VCL-Q1
SLVSHS3 – NOVEMBER 2024
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
