MMBZxxVAL Dual Channel Zener Diode

1 Features

•IEC 61000-4-2 ESD protection:

–±30kV contact discharge

–±30kV air-gap discharge

•IEC 61643-321 surge protection:

–Up to 1.7A (10/1000µs)

•Low leakage current: 50nA (max)

•Temperature range: –55°C to +150°C

•Leaded packages used for automatic optical

inspection (AOI)

2 Applications

•Overvoltage protectection

•CAN/LIN transient suppression

•Dual channel unidirectional or single channel

bidirectional

3 Description

The MMBZxxVAL is a dual channel unidirectional or

single channel bidirectional ESD in common anode

configuration. The device's relatively low capacitance

and low leakage features enable use in higher speed

applications.

The MMBZxxVAL is packaged in the SOT-23,

providing two channels of robust transient protection

in one space-efficient form factor.

Package Information

PART NUMBERPACKAGE

(1)

PACKAGE SIZE

(2)

MMBZxxVALDBZ (SOT-23, 3)2.92mm × 2.37mm

(1)For more information, see Section 8.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

12

3

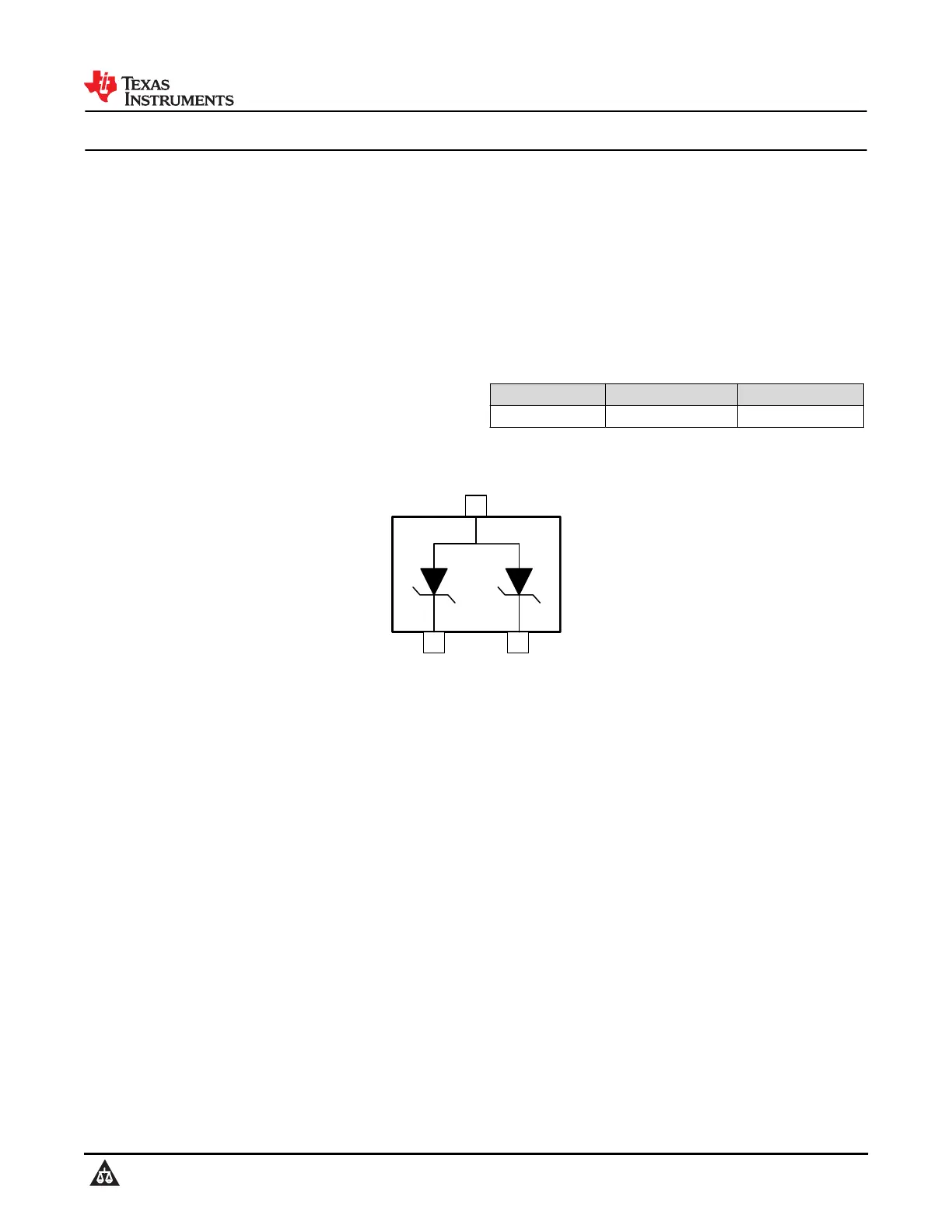

Functional Block Diagram

MMBZ15VAL, MMBZ27VAL

SLVSJ23 – JUNE 2025

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
