MC3486 Quadruple Differential Line Receiver with 3-State Outputs

1 Features

•Meets or exceeds the requirements of ANSI

standards EIA/TIA-422-B and EIA/TIA-423-B and

ITU Recommendations V.10 and V.11

•3-State, TTL-compatible outputs

•Fast transition times

•Operates from single 5-V supply

•Designed to be interchangeable with Motorola

™

MC3486

2 Applications

•Motor drives

•Factory automation and control

3 Description

The MC3486 is a monolithic quadruple differential line

receiver designed to meet the specifications of ANSI

Standards TIA/EIA-422-B and TIA/EIA-423-B and ITU

Recommendations V.10 and V.11. The MC3486 offers

four independent differential-input line receivers that

have TTL-compatible outputs. The outputs utilize 3-

state circuitry to provide a high-impedance state at

any output when the appropriate output enable is at a

low logic level.

The MC3486 is designed for optimum performance

when used with the MC3487 quadruple differential

line driver. It is supplied in a 16-pin package and

operates from a single 5-V supply.

The MC3486 is characterized for operation from 0°C

to 70°C.

Package Information

PART NUMBERPACKAGE

(1)

PACKAGE SIZE

(2)

MC3486

D (SOIC, 16)19.3 × 9.4 mm

N (PDIP, 16)19.3 × 9.4 mm

NS (SOP, 16)10.2 mm × 7.8 mm

(1)For more information, see Section 10.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

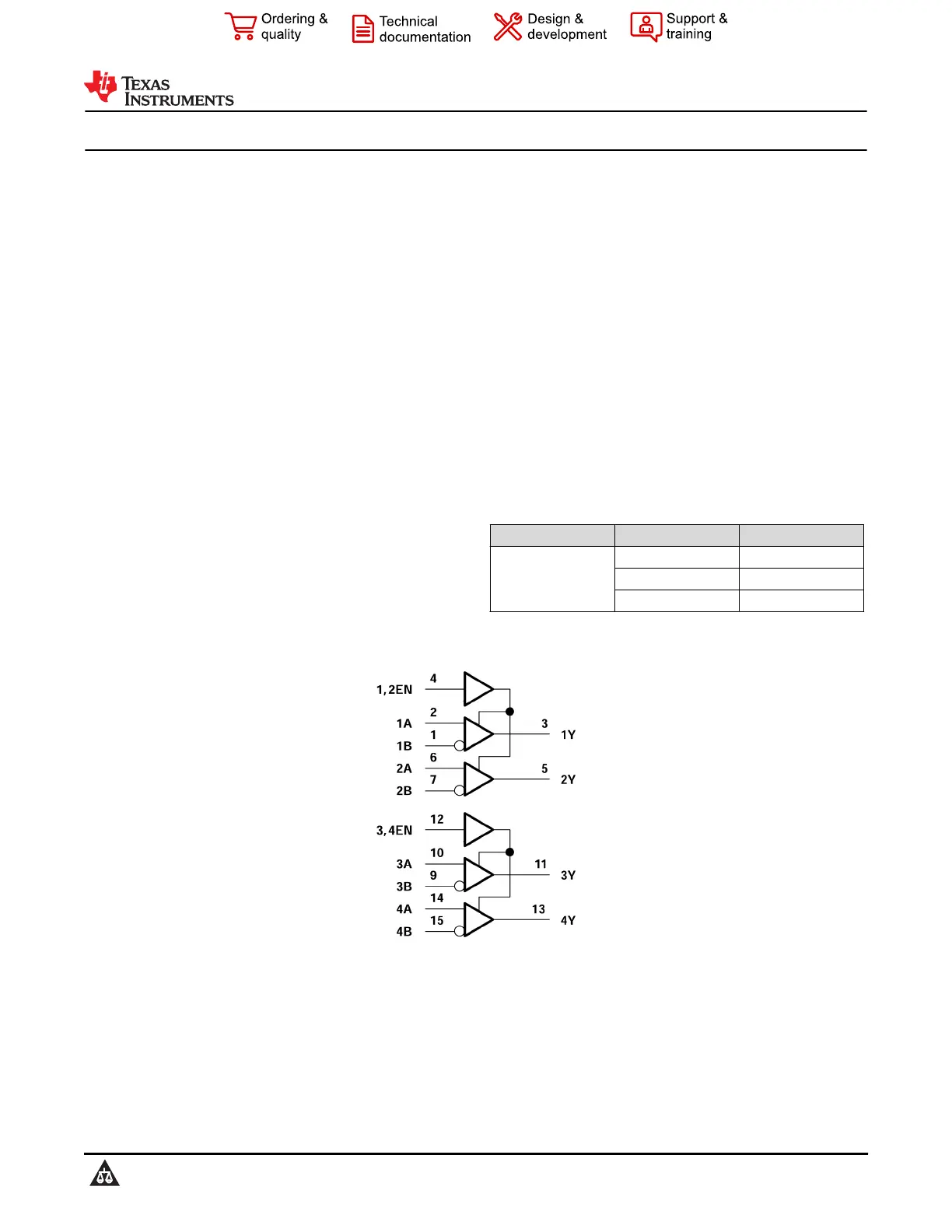

Logic Diagram (Positive Logic)

MC3486

SLLS097D – JUNE 1980 – REVISED OCTOBER 2023

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
