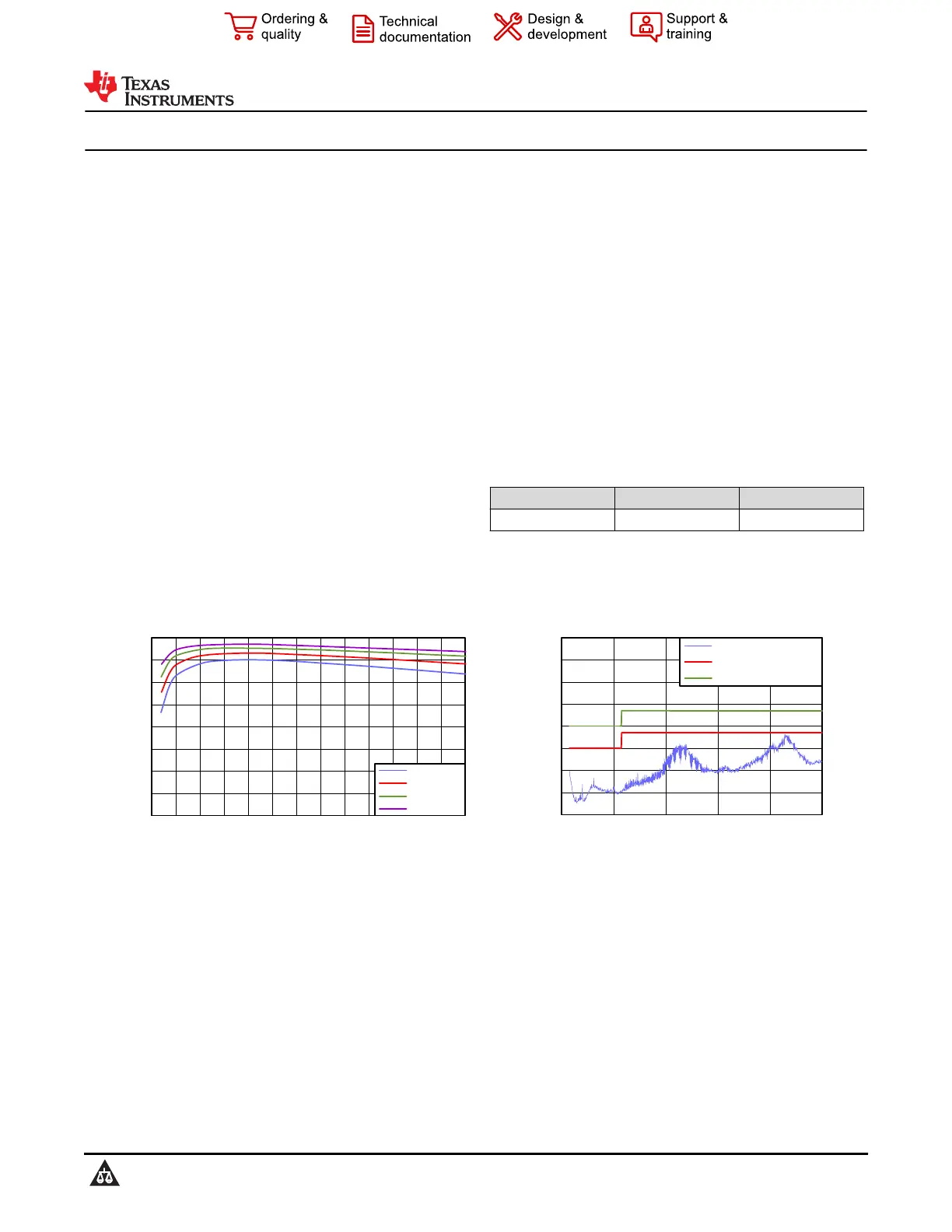

LMZ10500 650-mA Nano Module With 5.5-V Maximum Input Voltage

1 Features

•Output current up to 650 mA

•2.7-V to 5.5-V input voltage range

•0.6-V to 3.6-V output voltage range

•Efficiency up to 95%

•Integrated Inductor

•8-pin microSiP footprint

•–40°C to 125°C junction temperature range

•Adjustable output voltage

•2-MHz fixed PWM switching frequency

•Integrated compensation

•Soft-start function

•Current limit protection

•Thermal shutdown protection

•Input voltage UVLO for power-up, power-down,

and brownout conditions

•Only 5 external components — resistor divider and

3 ceramic capacitors

•Small design size

•Low output voltage ripple

•Easy component selection and simple PCB layout

•High efficiency reduces system heat generation

•Create a custom design using the LMZ10500 with

the WEBENCH

®

Power Designer

2 Applications

•Point of load conversions from 3.3-V and 5-V rails

•Space constrained applications

•Low output noise applications

3 Description

The LMZ10500 nano module is an easy-to-use step-

down DC/DC design capable of driving up to 650-mA

load in space-constrained applications. Only an input

capacitor, an output capacitor, a small V

CON

filter

capacitor, and two resistors are required for basic

operation. The nano module comes in an 8-pin µSiP

footprint package with an integrated inductor. Internal

current limit based soft-start function, current overload

protection, and thermal shutdown are also provided.

Package Information

PART NUMBERPACKAGE

(1)

PACKAGE SIZE

(2)

LMZ10500SIL (µSiP, 8)3.00 mm × 2.60 mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

(2)The package size (length × width) is a nominal value and

includes pins, where applicable.

20

30

40

50

60

70

80

90

100

00.050.10.150.20.250.30.350.40.450.50.550.60.65

EFFICIENCY (%)

LOAD CURRENT (A)

VOUT=1.2V

VOUT=1.8V

VOUT=2.5V

VOUT=3.3V

C009

Typical Efficiency at V

IN

= 3.6 V

0

10

20

30

40

50

60

70

80

02004006008001000

Radiated Emissions (dBµV/m)

Frequency (MHz)

Evaluation Board

EN 55022 Class B Limit

EN 55022 Class A Limit

C001

Radiated EMI (CISPR22) V

IN

= 5 V, V

OUT

= 1.8 V, I

OUT

= 650 mA

LMZ10500

SNVS723H – OCTOBER 2011 – REVISED OCTOBER 2023

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
