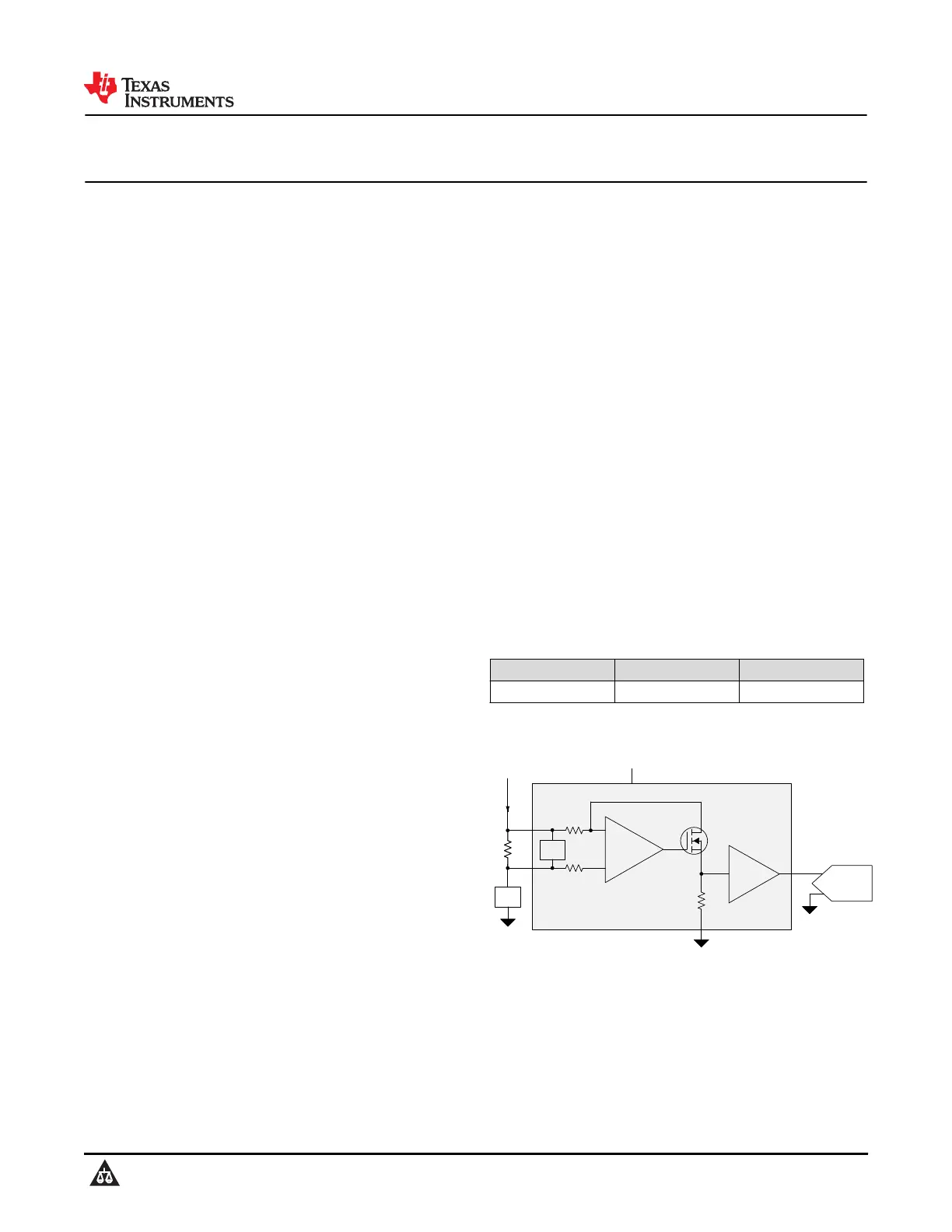

INA280-Q1 AEC-Q100, 2.7-V to 120-V, 1.1-MHz, High Precision Current Sense

Amplifier in Small (SC-70) Package

1 Features

•AEC-Q100 qualified for automotive applications:

–Temperature grade 1: –40 °C to +125 °C, T

A

•Functional Safety-Capable

–Documentation available to aid functional safety

system design

•Wide common-mode voltage:

–Operational voltage: 2.7 V to 120 V

–Survival voltage: −20 V to +122 V

•Excellent CMRR:

–120-dB DC (minimum)

–85-dB AC at 50 kHz

•Accuracy

–Gain:

•Gain error: ±0.5% (maximum)

•Gain drift: ±20 ppm/°C (maximum)

–Offset:

•Offset voltage: ±150 µV (maximum)

•Offset drift: ±1 µV/°C (maximum)

•Available gains:

–INA280A1-Q1: 20 V/V

–INA280A2-Q1: 50 V/V

–INA280A3-Q1: 100 V/V

–INA280A4-Q1: 200 V/V

–INA280A5-Q1: 500 V/V

•High bandwidth: 1.1 MHz

•Slew rate: 2 V/µs

•Quiescent current: 370 µA

2 Applications

•Solid-state LiDAR

•Automotive HVAC compressor module

•Automotive interior heater module

•Automotive parking heater module

•Automotive Pumps

3 Description

The INA280-Q1 is a current sense amplifier that can

measure voltage drops across shunt resistors over a

wide common-mode range from 2.7 V to 120 V. It is in

a highly space-efficient SC-70 package with a PCB

footprint of only 2.0 mm × 2.1 mm. The current

measurement accuracy is achieved thanks to the

combination of an ultra-low offset voltage of ±150 µV

(maximum), a small gain error of ±0.5% (maximum),

and a high DC CMRR of 140 dB (typical). The

INA280-Q1 is not only designed for DC current

measurement, but also for high-speed applications

(like fast overcurrent protection, for example) with a

high bandwidth of 1.1 MHz (at gain of 20 V/V) and an

85-dB AC CMRR (at 50 kHz).

The INA280-Q1 operates from a single 2.7-V to 20-V

supply and draws a 370-μA supply current (typical).

The INA280-Q1 available with five gain options: 20

V/V, 50 V/V, 100 V/V, 200 V/V, and 500 V/V. The low

offset and drift of the INA280-Q1 enables accurate

current sensing over the extended operating

temperature range of −40 °C to +125 °C.

Device Information

PART NUMBERPACKAGE

(1)

BODY SIZE (NOM)

INA280-Q1SC-70 (5)2.00 mm × 1.25 mm

(1)For all available packages, see the package option

addendum at the end of the data sheet.

SAR

ADC

IN+

IN±

OUT

V

CM

+

±

Buffer

Current

Feedback

V

S

GND

RL

R1

R1

Bias

Load

R

SENSE

I

SENSE

Typical Application

www.ti.com

INA280-Q1

SBOSA48 – NOVEMBER 2020

Copyright ©2020 Texas Instruments Incorporated

Submit Document Feedback

1

Product Folder Links: INA280-Q1

INA280-Q1

SBOSA48 – NOVEMBER 2020

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.
