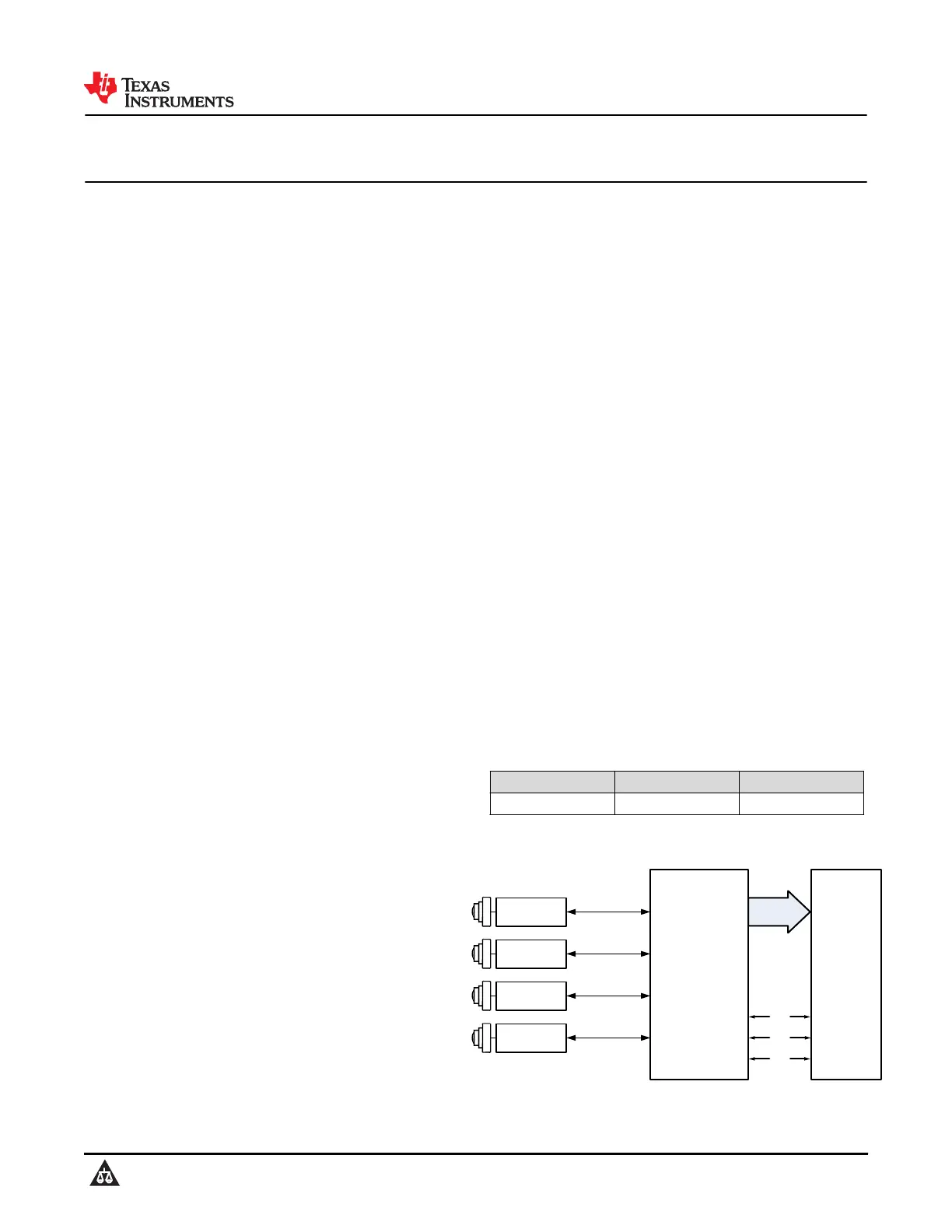

DS90UB662-Q1 Quad 3-Gbps FPD-Link III Deserializer Hub With Single CSI-2 Output

Port

1 Features

•

AEC-Q100 qualified for automotive applications:

–Device temperature grade 2: –40℃ to +105℃

ambient operating temperature range

–Device HBM ESD classification Level ±3 kV

–Device CDM ESD classification Level C5

•Quad deserializer hub aggregates data from up to

4 sensors simultaneously supports

•Supports 1-Megapixel sensors up to 60-Hz frame

rate and 2-Megapixel sensors up to 30-Hz frame

rate

•Precise multi-camera synchronization

•MIPI DPHY version 1.2 / CSI-2 version 1.3

compliant

–1 × CSI-2 MIPI Output Port

–Supports 1, 2, 3, 4 data lanes

–CSI-2 data rate scalable for 400 Mbps / 800

Mbps / 1.2 Gbps / 1.5 Gbps / 1.6 Gbps per lane

•Ultra-low data and control path latency

•Supports single-ended coaxial including Power-

over-Coax (PoC) or Shielded Twisted-Pair (STP)

cable

•Adaptive receive equalization

•Dual I2C ports with fast-mode plus up to 1 Mbps

•Flexible GPIOs for sensor synchronization and

diagnostics

•Compatible with DS90UB633A-Q1 serializer and

DS90UB63x CSI-2 Serializers

•Internal programmable precision frame sync

generator

•Line fault detection and advanced diagnostics

•Functional Safety-Capable

–Documentation available to aid ISO 26262

system design

2 Applications

•Automotive ADAS

–Rear View Cameras (RVC)

–Surround View Systems (SVS)

–Camera Monitoring Systems (CMS)

–Forward Vision Cameras (FC)

–Driver Monitoring Systems (DMS)

–Satellite RADAR, Time-of-Flight (ToF), and

LIDAR sensors modules

–Sensor fusion

•Security and Surveillance

3 Description

The DS90UB662-Q1 is a versatile sensor hub

capable of connecting serialized sensor data received

from four independent video data streams through a

FPD-Link III interface. When paired with a

DS90UB633A-Q1 or DS90UB63x CSI-2 serializer, the

DS90UB662-Q1 receives data from 1-Megapixel

image sensors supporting 720p/800p/960p/1MP

resolution at 30-Hz or 60-Hz frame rates. Data is

received and aggregated into a MIPI CSI-2 compliant

output for interconnect to a downstream processor.

The DS90UB662-Q1 includes four FPD-Link III

deserializers, each enabling a connection through

cost-effective 50-Ω single-ended coaxial or 100-Ω

differential STP cables. The receive equalizers

automatically adapt to compensate for cable loss

characteristics, including degradation over time.

Each of the FPD-Link III interfaces also includes a

separate low latency bidirectional control channel that

continuously conveys I2C, GPIOs, and other control

information. General-purpose I/O signals such as

those required for camera synchronization and

diagnostics features also make use of this

bidirectional control channel.

The DS90UB662-Q1 is AEC-Q100 qualified for

automotive applications and is offered in a cost-

effective and space-saving 64-pin VQFN package.

Device Information

PART NUMBER

(1)

PACKAGEBODY SIZE (NOM)

DS90UB662-Q1VQFN (64)9.00 mm × 9.00 mm

(1)For all available packages, see the orderable addendum at

the end of the data sheet.

MIPI CSI-2

Processor

SoC

DS90UB662-Q1

FPD-Link III HUB

FPD-Link III

Serializer

I2C

FPD-Link III

Coax or STP

FPD-Link III

Serializer

FPD-Link III

Serializer

FPD-Link III

Serializer

TX Port0:

Up to 4 Lanes

GPIO

INTB

Typical Application Schematic

www.ti.com

DS90UB662-Q1

SNLS675A – NOVEMBER 2020 – REVISED NOVEMBER 2020

Copyright ©2020 Texas Instruments Incorporated

Submit Document Feedback

1

DS90UB662-Q1

SNLS675A – NOVEMBER 2020 – REVISED NOVEMBER 2020

An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DA

TA.
