FEATURES

●NO MISSING CODES

●LOW POWER: 250mW

●INTERNAL REFERENCE

●WIDEBAND TRACK-AND-HOLD: 65MHz

●SINGLE +5V SUPPLY

DESCRIPTION

The ADS802 is a low-power, monolithic 12-bit, 10MHz Ana-

log-to-Digital (A/D) converter utilizing a small geometry CMOS

process. This complete converter includes a 12-bit quantizer,

wideband track-and-hold, reference, and three-state outputs.

It operates from a single +5V power supply and can be

configured to accept either differential or single-ended input

signals.

The ADS802 employs digital error correction in order to

provide excellent Nyquist differential linearity performance

for demanding imaging applications. Its low distortion, high

SNR, and high oversampling capability give it the extra

margin needed for telecommunications, test instrumentation,

and video applications.

This high-performance A/D converter is specified for AC and

DC performance at a 10MHz sampling rate. The ADS802 is

available in an SO-28 package.

12-Bit, 10MHz Sampling

ANALOG-TO-DIGITAL CONVERTER

APPLICATIONS

●IF AND BASEBAND DIGITIZATION

●DATA ACQUISITION CARDS

●TEST INSTRUMENTATION

●CCD IMAGING

Copiers

Scanners

Cameras

●VIDEO DIGITIZING

●GAMMA CAMERAS

ADS802

SBAS039B – MAY 1995 – REVISED FEBRUARY 2005

www.ti.com

Copyright © 1995-2005, Texas Instruments Incorporated

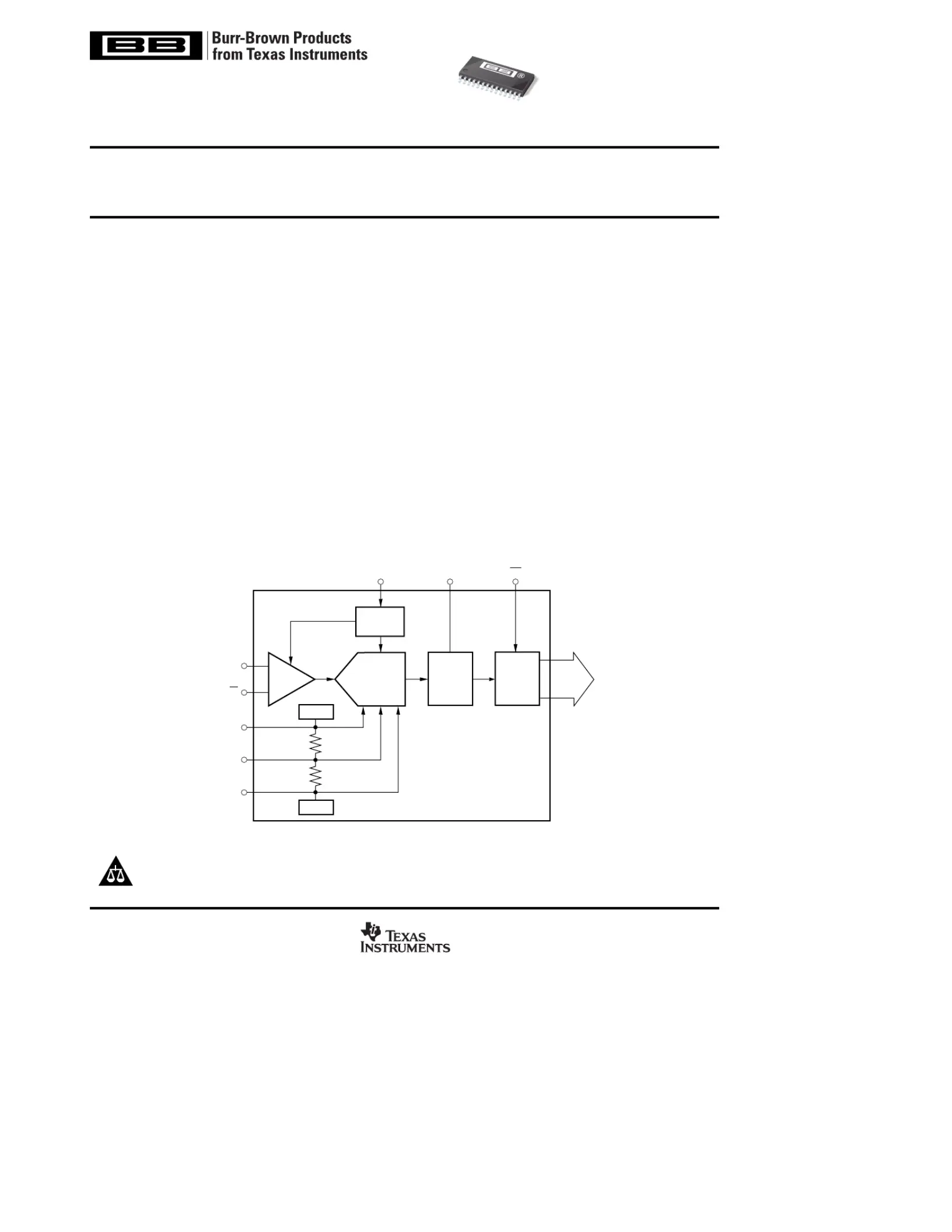

Pipeline

A/D

Converter

Timing

Circuitry

Error

Correction

Logic

3-State

Outputs

T/H

12-Bit

Digital

Data

CLK

+1.25V

+3.25V

MSBIOE

IN

IN

REFT

CM

REFB

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

ADS802U

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

All trademarks are the property of their respective owners.
