-Ensure Maximum bench thickness is (i) 25mm.

-Standard Spindles are supplied pre-installed into basin bodies and do not need to be seperated.

-Handle holes should be between diameter to allow for spindle clearance.(ii) 33mm and 36mm

-The clearance hole for the outlet should be between (iii) 22mm and 25mm.

-In order to install the basin bodies under the bench, temporarily unscrew the Outlet Locknut (N) and Washer (M)

and set aside.

-Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2025

-Recommended working water pressure 300 - 500 kPa. Maximum water temperature is 65°C

-After installation, ensure that tapware functions correctly without leaks.

-Please ensure a copy of the Installation Instructions are left with the end user for future reference.

VGBS.01

Virgo

Basin Set

Product code

Install Preparation:

Plumbers note:

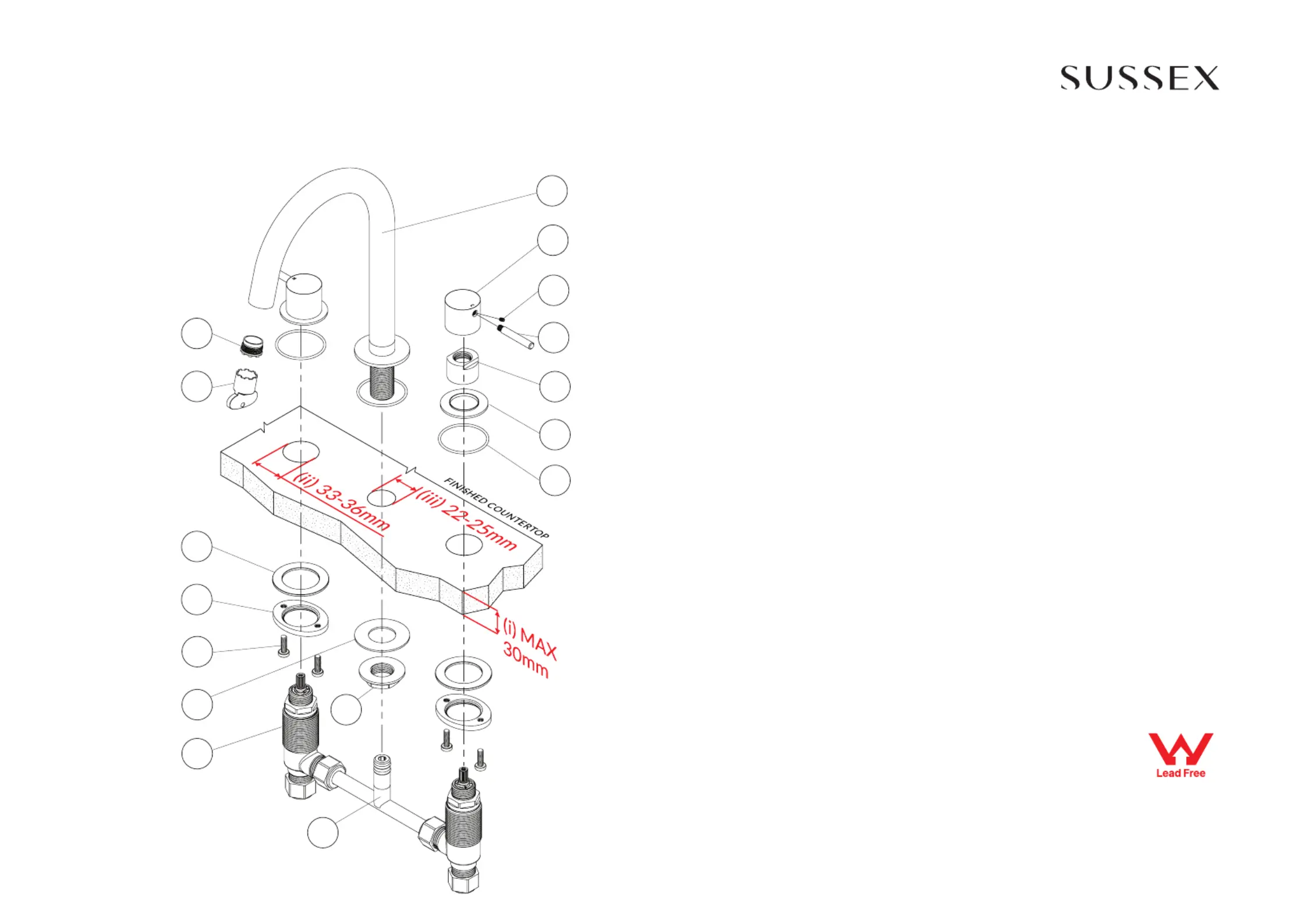

-(A) Outlet Assembly (Preassembled)

-(B) Handle

-(C) Set Screw

-(D) Handle Pin

-(E) Spindle Adaptor

-(F) Dress Ring

-(G) Dress Ring O-Ring

-(H) Aerator

-(I) Aerator Key

-(J) Basin Body Clamping Washer

-(K) Basin Body Locknut

-(L) Philips Head Screw

-(M) Outlet Clamping Washer

-(N) Outlet Locknut

-(O) Basin Body Assembly p1-x2 (Preassembled and consisting of Basin Body, H/C Spindles, Fiber Washers and

Spindle Locknuts)

-(P) Tee-Piece

Product parts:

AS 3718

LIC. 20081

H

I

A

B

C

D

E

F

G

J

K

L

M

N

O

P

sussextaps.com.au

While we aim to ensure the specifications shown are correct at time of printing, Sussex Taps reserves the right to make modifications

without prior notice. Always use the physical product for accurate measurements. Dimensions are subject to change without notice.

All measurements are shown in millimetres. This product complies with lead free requirements.
