© 2026 Supermicro Computer Inc. All rights reserved. Reproduction of this document whether in part or in whole is strictly prohibited without Supermicro's written

consent. All Trademarks are property of their respective entities. All information provided is deemed accurate at the time of printing; however, it is not guaranteed.MNL-2799-QRG-100

SUPERMICR

R

Package Contents

• One Supermicro Motherboard

• One Quick Reference Guide

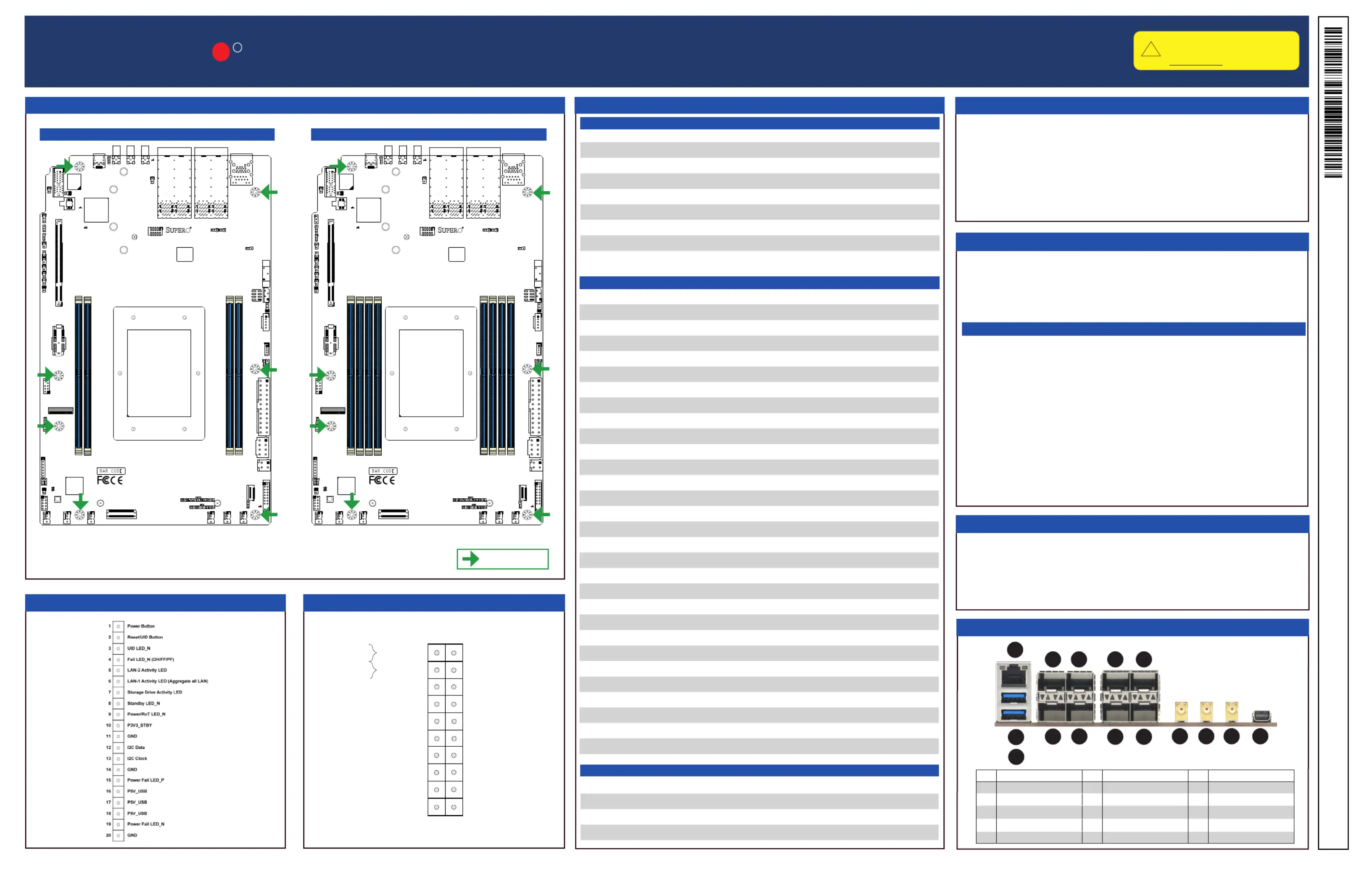

X14SDW-36C/36CE/40C/42C/64C/64CM/72C-SP9F Quick Reference Guide

WARNING: This product can expose you to chemicals including

lead, known to the State of California to cause cancer and birth

defects or other reproductive harm. For more information, go

to www.P65Warnings.ca.gov.

!

DIMMA1

DIMMB1

DIMMC1

DIMMD1

DIMMH1

DIMMG1

DIMMF1

DIMME1

JRU1

JDP1

MH1

JSEL

LED3

JBT1

COM1

LED1

JSXB1B PCIe p1-x16 + x16

JPL1

JPI2C1

JIPMB1

BT1

JPW1

JPW2

JPW3

JFP1_1

JRU1

LED6

JF1

MH7

FAN1

FAN2

FAN3

SRW2

JMCIO1

SRW1

FAN4

MH6

FAN5

FAN6

JGP1

JWD1

JPT1

JTPM1

JPT1

MH5

JBM2

JSXB1C1

JSXB1A1

SMA2

SMA1

SMA3

LAN6/7/8/9

LAN2/3/4/5

MH2

LAN1

USB0/1 (3.0)

BIOS LICENSE

DESIGNED IN USA

REV: 1.02

X14SDW-64C-SP9F

J42

CPU1

Aspeed 2600

MH4

JBM1

JL1

JMD2_SRW2

JMD3_SRW1

JMD3_SRW1

JMD2_SRW1

JTIMED1

JMD1

JMD1_SRW1

HCC: DIMMD1

HCC: DIMMC1

HCC: DIMMA1

HCC: DIMMB1

MH3

DIMMA1

DIMMB1

DIMMD1

DIMMC1

JRU1

JDP1

MH1

JSEL

LED3

JBT1

COM1

LED1

JSXB1B PCIe p1-x16 + x16

JPL1

JPI2C1

JIPMB1

BT1

JPW1

JPW2

JPW3

JFP1_1

JRU1

LED6

JF1

MH7

FAN1

FAN2

FAN3

SRW2

JMCIO1

SRW1

FAN4

MH6

FAN5

FAN6

JGP1

JWD1

JPT1

JTPM1

JPT1

MH5

JBM2

JSXB1C1

JSXB1A1

SMA2

SMA1

SMA3

LAN6/7/8/9

LAN2/3/4/5

MH2

LAN1

USB0/1 (3.0)

BIOS LICENSE

DESIGNED IN USA

REV: 1.02

X14SDW-64C-SP9F

J42

CPU1

Aspeed 2600

MH4

JBM1

JL1

JMD2_SRW2

JMD3_SRW1

JMD3_SRW1

JMD2_SRW1

JTIMED1

JMD1

JMD1_SRW1

MH3

DIMM Memory Installation

Jumpers, Connectors, and LED Indicators

Memory Support

Motherboard Layout and Features

Front Control Panel (JF1)

Processor Support

HCC SoC: Supports up to 512 GB of ECC DDR5 RDIMM memory with speeds

of up to 6400 MT/s in four slots.

XCC SoC: Supports up to 1 TB of ECC DDR5 RDIMM memory with speeds of

up to 6400 MT/s in eight slots.

When installing memory modules for HCC SoC, the DIMM slots should be popu-

lated in the following order: HCC: DIMMA1, HCC: DIMMB1, HCC: DIMMC1, and

HCC: DIMMD1.

When installing memory modules for XCC SoC, the DIMM slots should be poplu-

ated in the following order: DIMMA1, DIMMB1, DIMMC1, DIMMD1, DIMME1,

DIMMF1, DIMMG1, and DIMMH1

It is recommended to use DIMM modules of the same type, size, and speed. Mixed

DIMM speeds can be installed. However, all DIMMs will run at the speed of the

slowest DIMM. The motherboard will support odd-numbered modules. However,

for best memory performance, install DIMM modules in pairs to activate memory

interleaving.

The X14SDW Series motherboard supports the Intel

®

Xeon

®

6 SoC series,

HCC, and XCC processors.

The X14SDW-36C/36CE/40C/42C-SP9F motherboards support the HCC SoC

processor with a Thermal Design Power (TDP) of up to 235 W.

The X14SDW-64C/64CM/72C-SP9F motherboards support the XCC SoC

processor with a Thermal Design Power (TDP) of up to 325 W.

ConnectorDescription

BT1Onboard Battery

COM1COM Header

FAN1–FAN6CPU/System Fan Headers

J42Dry Contact

JDP1DisplayPort 1.1

JF1Front Control Panel Header

JFP1Front Control Board Header

JGP1General Purpose I/O Header

JIPMB14-pin BMC External I

2

C Header

JL1Chassis Intrusion Header

JMCIO1Mini Cool Edge I/O Connector

JMD1M.2-C PCIe 4.0 p1-x2 Slot

JPI2C1Power System Management Bus (SMB) I

2

C Header

JPW124-pin ATX Main Power Connector (Required)

JPW28-pin +12 V CPU Power Connector (Required)

JPW34-pin Power Out for GPU Card

JRK1Intel RAID Key Header

JSXB1A1PCIe 5.0 p1-x16 + p1-x16 Supermicro Proprietary WIO Left Add-on Card Slot

JSXB1BPCIe 5.0 p1-x16 + p1-x16 Supermicro Proprietary WIO Left Add-on Card Slot

JSXB1C1PCIe 5.0 p1-x16 + p1-x16 Supermicro Proprietary WIO Left Add-on Card Slot

JTIMED1CPU Precision Time Measurement Header

JTPM1Trusted Platform Module/Port 80 Connector

LAN11G (RJ45) LAN ports

LAN2/3/4/525G LAN Ports

LAN6/7/8/925G LAN Ports

SMA11 PPS In

SMA21 PPS Out

SMA3GNSS In

USB0/1USB 3.0 Ports

LEDDescriptionStatus

LED1GNSS 1 PPSBlinking: Receiving GNSS signal

LED3BMC HeartbeatBlinking Green: BMC Normal

LED6Power LEDLED On: Onboard Power On

I/O Ports

1

9

8

7

6

5

4

3

2

10

11

OH/Fan Fail LED

20

NIC1 Link LED

19

HDD LED

PWR LED

X

GND

NMI

X

NIC2 Link LED

+3.3 V

Power Button

Reset Button

Reset

PWR

GND

GND

12

X

+3.3 V

+3.3 V

+3.3 V Stby

+3.3 V Stby

+3.3 V Stby

12

LED Indicators

Jumpers

Connectors

###DescriptionDescriptionDescription

1.LAN16.LAN4LAN911.

2.7.LAN512.SMA3USB0 (3.0)

3.8.LAN613.SMA1USB1 (3.0)

4.9.LAN714.SMA2LAN2 (NCSI support)

5.LAN310.LAN815.DisplayPort 2.1

JumperDescriptionDefault Setting

JBM1Disable IPMI Shared LANPins 1–2 (Enabled)

JBM2Disable IPMI Dedicated/Shared LANPins 1–2 (Enabled)

JBT1CMOS ClearOpen (Normal)

JPL1LAN Enable/DisablePins 1–2 (Enabled)

JPT1Onboard TPM 2.0 Enable/DisablePins 1–2 (Enabled)

JRU1JFP1 Signal Select JumperPins 1–2 (UID Button)

JSELSMA1 Voltage SelectPins 1–2 (+3.3 V)

JWD1Watchdog TimerPins 1–2 (Reset)

= mounting hole

13

1415

Front Control Board Header (JFP1)

Download Drivers and Utilities: https://www.supermicro.com/wdl/driver/

Refer to the Component Installation section of the user manual for information on jumpers, connectors, LED Indicators, memory support, and processor installation instructions.

X14SDW-36C/36CE/40C/42C-SP9FX14SDW-64C/64CM/72C-SP9F

Motherboard SKU Guidelines

X14SDW-36CE/40C/42C/64C/72C-SP9F: Equipped with Timesync and GNSS

module.

X14SDW-36C/64CM-SP9F: Equipped without Timesync and GNSS module.
