SPXRGBCD
DYNAMIC RGB LED CONTROLLER
NOTE: Do not exceed 10 AMPS
total across all 4 outputs.
Universal, waterproof, Dynamic RGB controller with Blue-
tooth and RF Remote Control. Before you start, review
directions completely. If your vehicle is not pre-wired for
accessory lighting, you may need a switch and relay.

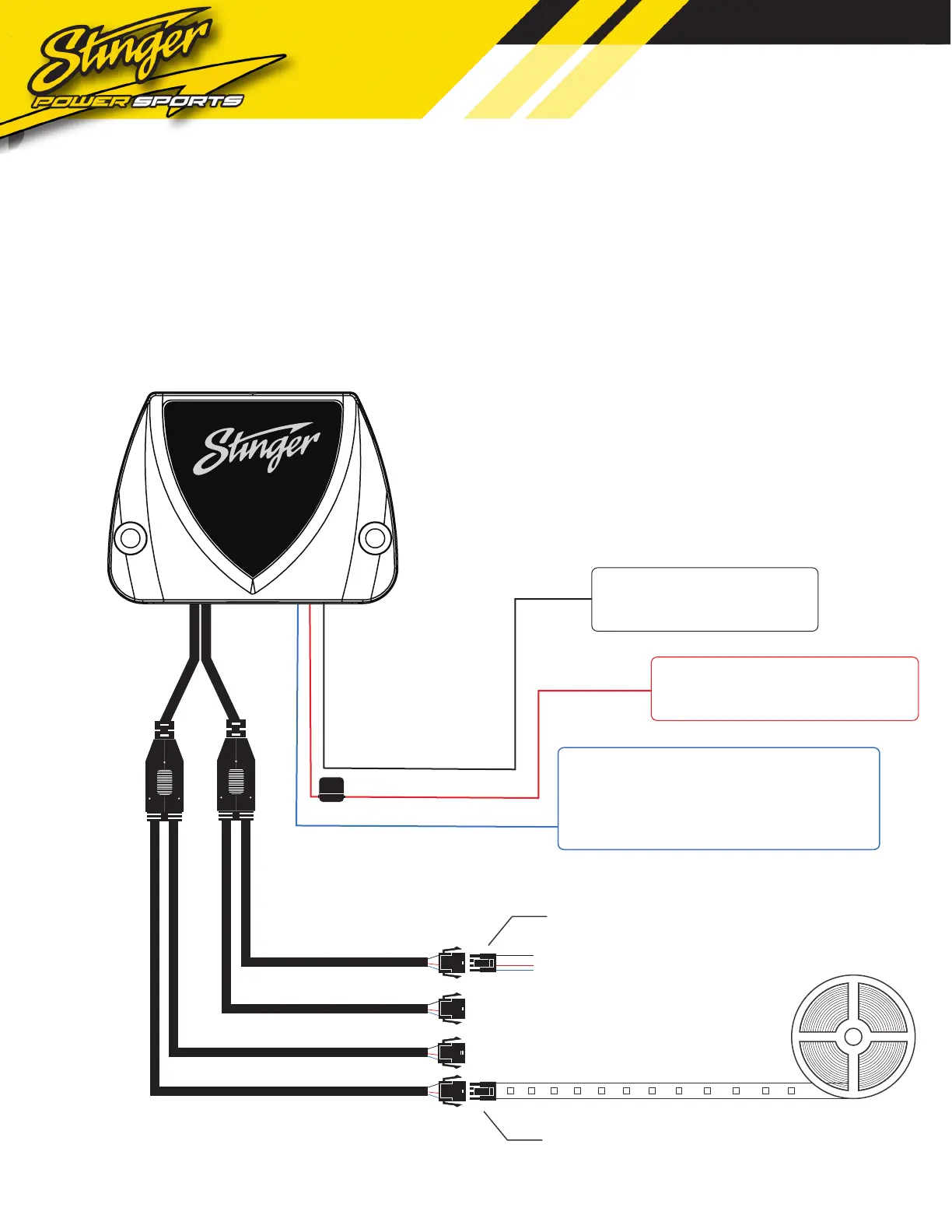

WIRING DIAGRAM
The SPXRGBCD can be wired to a
switch or to accessory power using
the BLUE lead. The RED wire should
be connected to constant power to
save the RGB light settings.
NOTE: Do not connect the Red and
BLUE to constant power and use the
app to turn the module on and off.
The module will draw power even
when turned off with the app.
Black - Ground
Red - Battery (12V+)
Blue - Remote In (12V+)
3
AMP
FUSE
The BLUE wire can be connected
to a Switch (12V+) or connected to
vehicle’s Switched Power (12V+).
Do not connect to constant power.
Connect RED wire to constant
power (12V+).
Connect BLACK wire to
Ground.
Optional SPXRGBMFD Solder Connector
Connect to optional to SPXRGB5D
Dynamic RGB LED Strip Lights
