For additional self-service support options and community forums, please visit: www.StarTech.com/support

Revision: March 24, 2025

Quick-Start Guide

10/100/1000 Mbps VDSL2 Ethernet Extender Kit - 1km

Product ID

VDSL-LAN-EXTENDER-EU

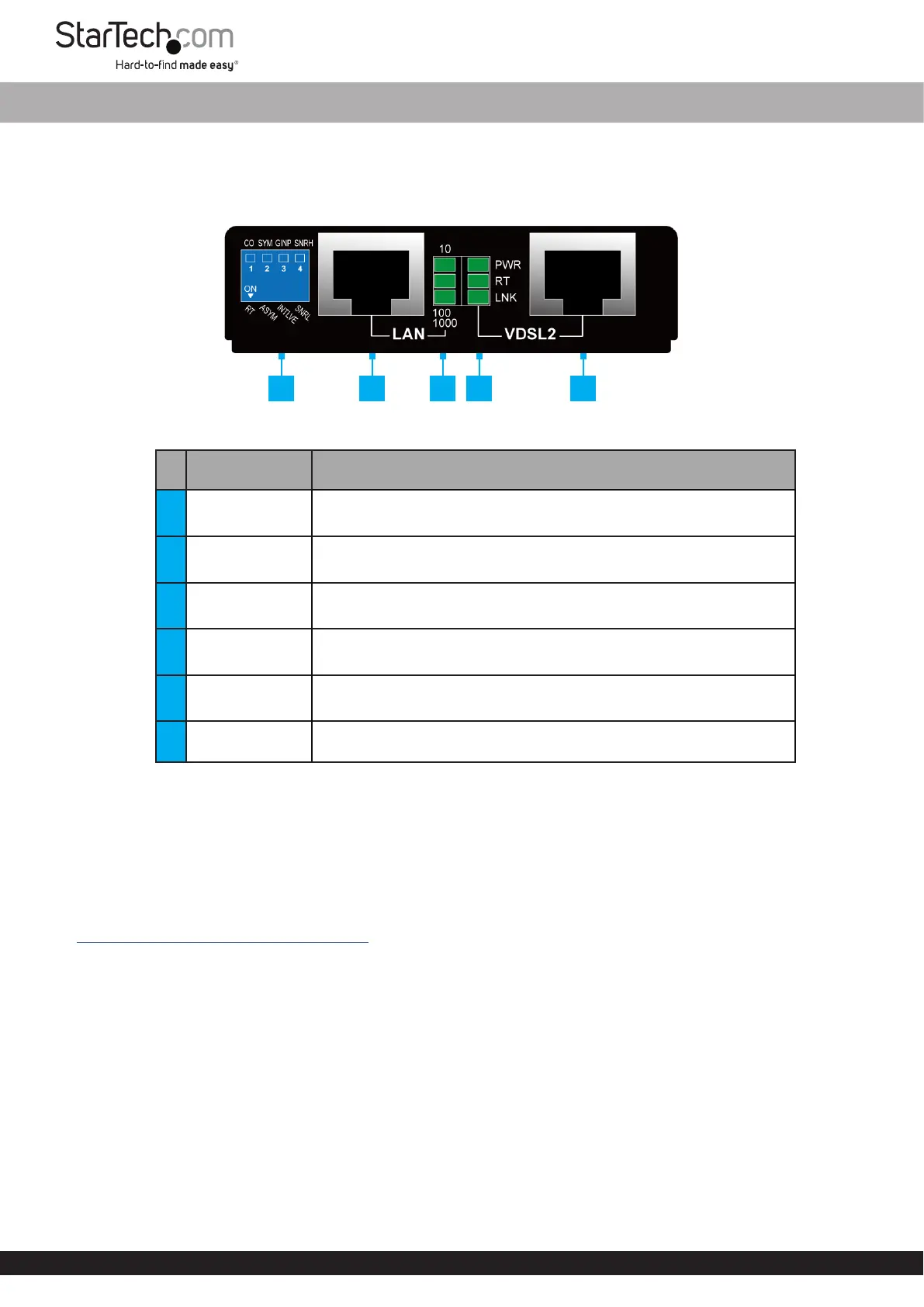

FeatureFunction

1DIP Switches

• Set the Mode or change settings on the VDSL Extenders

• Refer to DIP Switch Chart

2LAN Port• Connect to an RJ45 Port on Local and Remote Equipment

3LAN Status LEDs• Refer to the LED Chart

4

VDSL2 Status

LEDS

• Refer to the LED Chart

5VDSL2 Port

• Use a RJ45 or RJ11 Cable to connect the Local and Remote VDSL

Extenders together

6Power Input Port

• Connect the included Power Adapter

• Located on the rear of each VDSL Extender

Package Contents

• VDSL Extender x 2

• Mounting Bracket Kits x 2

• Power Supply x 2

• Quick-Start Guide x 1

Requirements

For the latest manuals, product information, technical specications, and declarations of conformance, please visit:

www.StarTech.com/VDSL-LAN-EXTENDER-EU

• Ethernet Device x 2

• RJ45 Ethernet Cables x 2

• RJ45 or RJ11 Cable x 1

Installation

(Optional) Mounting the VDSL Extender

Note: Before mounting the VDSL Extender make sure that the surface you are mounting to is strong enough to support the

VDSL Extender. It is recommended that the VDSL Extender is mounted on a wall stud to provide the correct support.

1. Determine the Mounting Surface for the Local and Remote VDSL Extender.

2. Place the VDSL Extenders upside down to expose the Mounting Bracket Holes on the VDSL Extenders. Align the Holes in

the Mounting Brackets with the Holes on the bottom of the VDSL Extenders.

3. Insert four Screws through each Mounting Bracket and into the VDSL Extender.

4. Tighten each Screw using a Phillips Head Screwdriver.

5. Mount the VDSL Extender to the desired Mounting Surface using the appropriate Mounting Hardware (e.g. Wood

Screws).

*Product may vary from image

1

2345
