StarTech.com SV1631HD Handleiding

StarTech.com Schakelaar SV1631HD

Bekijk gratis de handleiding van StarTech.com SV1631HD (16 pagina’s), behorend tot de categorie Schakelaar. Deze gids werd als nuttig beoordeeld door 2 mensen en kreeg gemiddeld 4.5 sterren uit 1.5 reviews. Heb je een vraag over StarTech.com SV1631HD of wil je andere gebruikers van dit product iets vragen? Stel een vraag

Download PDF

Pagina 1/16

The Professionalsí Source For Hard-to-Find Computer Parts

KVM SWITCH

SV831HD

SV1631HD

SV1631D1U

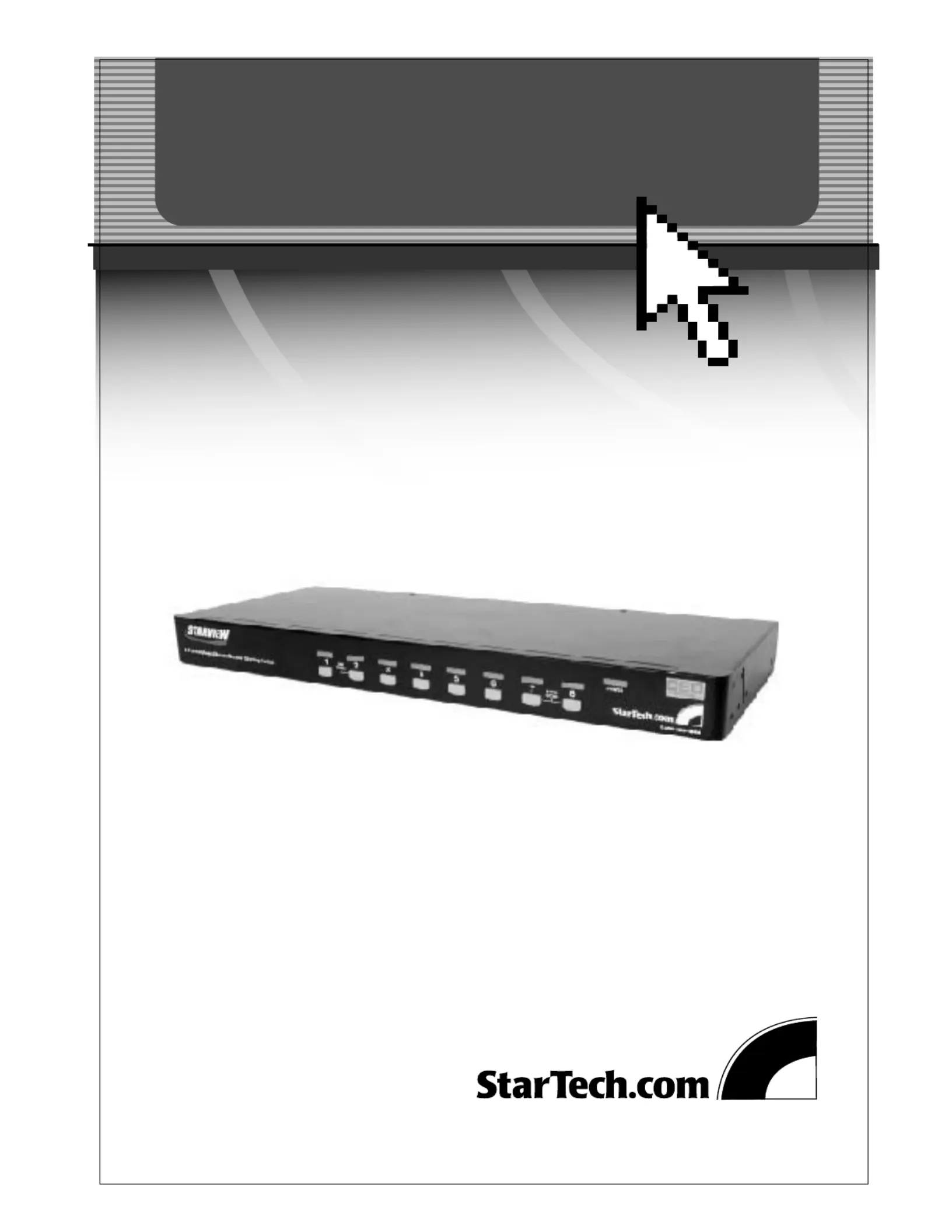

Instruction Guide

* SV831HD shown

* Actual product may vary from photo

Table of Contents

Introduction ................................................................................................2

System Requirements................................................................................2

Installation ..................................................................................................3

Operating Your KVM Switch.......................................................................4

Pushbuttons ...............................................................................................4

OSD Operations.........................................................................................4

OSD Function Keys....................................................................................5

Hot Key Commands ...................................................................................8

Changing Your Configuration .....................................................................9

Keyboard Mapping ...................................................................................10

Troubleshooting .......................................................................................11

Technical Specifications...........................................................................12

Technical Support ....................................................................................13

Warranty Information................................................................................13

Introduction

Thank you for purchasing a StarTech.com 1U KVM switch. Our universal KVM switches let you control

either 8 (SV831HD) or 16 (SV1631HD) USB or PS/2 computers using only one PS/2 keyboard, mouse,

and monitor. Our slim 16-port PS/2 switch (SV1631D1U) lets you connect 16 PS/2 computers using only

one PS/2 keyboard, mouse, and monitor. Switching between your PCs is easy thanks to pushbutton or hot-

key commands. These slim KVM switches take up only 1U of space in your cabinet and use rear cable

connections for maximum space efficiency. Each KVM can be cascaded to support 64 (SV831HD) or 136

(SV1631HD, SV1631D1U) computers and support both Manual and Auto scan modes for easy monitoring

of your PCs.

Features

• SV831HD, SV1631HD: Supports PCs with both USB and PS/2 keyboard/mouse connections

• SV1631D1U: Supports PCs with PS/2 keyboard/mouse connections

• Saves valuable rack space with thin 1U height form factor

• Supports hot-plugging: allows computers to be added or removed without having to reboot the

other connected systems

• SV831HD, SV1631HD: Works with PC, Mac, and Sun systems

• Fast switch-buttons for each port provide quick access to any connected system

• Uses On-Screen Display (OSD) menu for easy PC selection and switch configuration

• Can be cascaded to control up to 64 (SV831HD) or 136 (SV1631HD, SV1631D1U) PCs

• Visible front panel LEDs show status for each connected device

• Allows effortless monitoring of devices through configurable Auto and Manual scan modes

• Acts independent of operating system: no software or drivers required

• Complies with Plug and Play specifications

• Backed by StarTech.com’s 3-year warranty

Before You Begin

To ensure a quick and easy console installation, please read through this section carefully before attempting

to install the device.

Contents

This package should contain:

• 1 x StarView KVM Switch (SV831HD, SV1631HD, SV1631D1U)

• 1 x power adapter (9V 600mA DC)

System Requirements

• 1 x PS/2 mouse (6-pin mini-DIN male connector)

• 1 x PS/2 keyboard (6-pin mini-DIN male connector)

• 1 x HD-15 monitor (Male connector)

• SV831HD, SV1631HD: StarTech.com’s 2-in-1 USB KVM cables or 3-in-1 PS/2 KVM cables

• SV1631D1U: StarTech.com’s 3-in-1 PS/2 KVM cables

Product specificaties

Merk:	StarTech.com
Categorie:	Schakelaar
Model:	SV1631HD
Stroomvoorziening:	9V DC, 0.6A
Connectiviteitstechnologie:	Bedraad
Maximum resolutie:	1920 x 1440 Pixels
Certificering:	CE, FCC
Aansluitingen:	1 - 8 DIN\n2 - 6 DIN\n17 - HD DB15
Rack-montage:	Ja
Rackcapaciteit:	1U
Aantal poorten:	16
Aansluiting toetsenbord:	USB, PS/2
Aansluiting muis:	USB, PS/2
