Quick-Start Guide

To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.

Manual Revision: June 18, 2024 4:58 PM

Product ID

5G16AINDS-USB-A-HUB

16-Port Industrial USB 3.2 Gen 1 Hub - ESD and Surge Protection - Dual Host

ComponentFunction

1

DC Power Input

•Connect a +7~24 V DC Power Source

•120W or higher recommended for maximum

power performance

2

DC 2-Wire Terminal Block Power

Input

•Connect a +7~24 V DC Power Source

•120W or Higher Recommended for maximum

power performance

3

Power LED

•Indicates if the USB Hub is receiving power from either

a USB Host or a DC Power Source

•Solid Green - Receiving Power

•O - Not Receiving Power

4

USB Host Port A

(Screw Locking, USB-B)

•Connect to a USB-A Port on a Host Computer

•USB 3.2 Gen 1 (5 Gbps)

5

USB Host Port B

(Screw Locking, USB-B)

•Connect to a USB-A Port on a Host Computer

•USB 3.2 Gen 1 (5 Gbps)

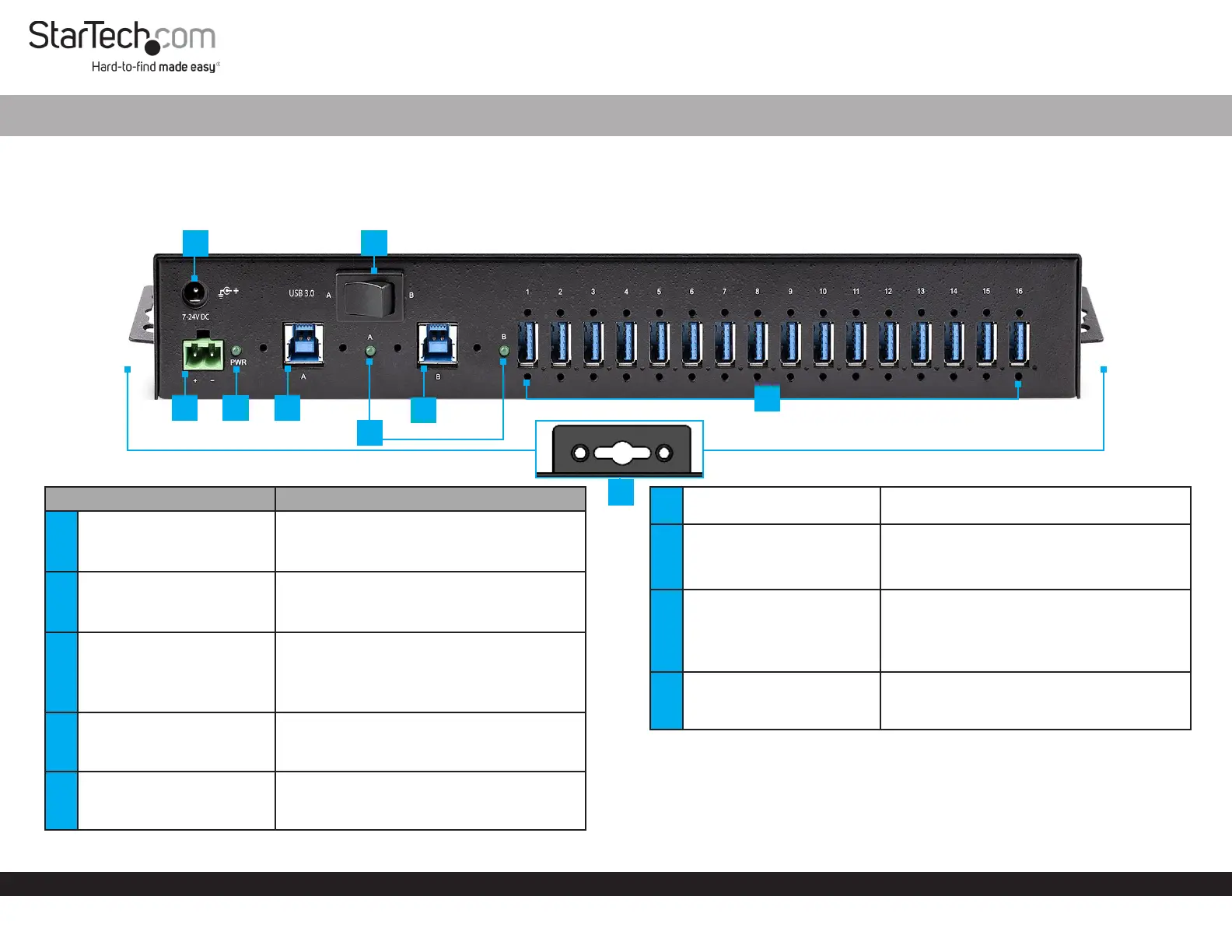

Product Diagram

1

23

7

5

6

Host Device Port Switch

•Switches Hub Connectivity between USB Host Ports

A & B

7

USB Host Selection LEDs

•Indicates which Host Device is currently selected

•Solid Green - Host Device Selected

•O - Host Device Not Selected

8

16x USB Data/Charge Ports

(Screw Locking, USB-A)

• Connect USB Peripherals

•USB 3.2 Gen 1 (5 Gbps)

•BC 1.2 Charging with 5V 2.0A Maximum or 1.5A

Simultaneous

9

1U Mounting Brackets

• Mount the USB Hub into 1U of Rack Space

• Mount the USB Hub to a wall or the side/underside of

a Desk

4

6

8

9

Package Contents

•USB Hub x 1

•10 ft [3 m] USB-A to USB-B Cable x 1

•Terminal Block Connector (Attached)

•DIN Rail Mounting Brackets (with Mounting Screws) x 2

•Quick-Start Guide x 1

* Product may vary from image
