Instruction manual

FR: Guide de l’utilisateur - fr.startech.com

DE: Bedienungsanleitung - de.startech.com

ES: Guía del usuario - es.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

IT: Guida per l’uso - it.startech.com

Manual Revision: 09/27/2016

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/PDU08C13H.

PDU08C13H

8-Port Rack-Mount PDU with C13 Outlets - 1U - 16 A

*actual product may vary from photos

Introduction

The PDU08C13H is a cost-eective power distribution solution that

you can mount in your rack to deliver power to your rack-mounted

equipment. The PDU is constructed from durable steel and mounts

horizontally in your rack, taking up only 1U of space. The PDU

features a dual circuit breaker that is designed to protect your

equipment from power surges, and two reset buttons that you can

use to reset the PDU after a power surge.

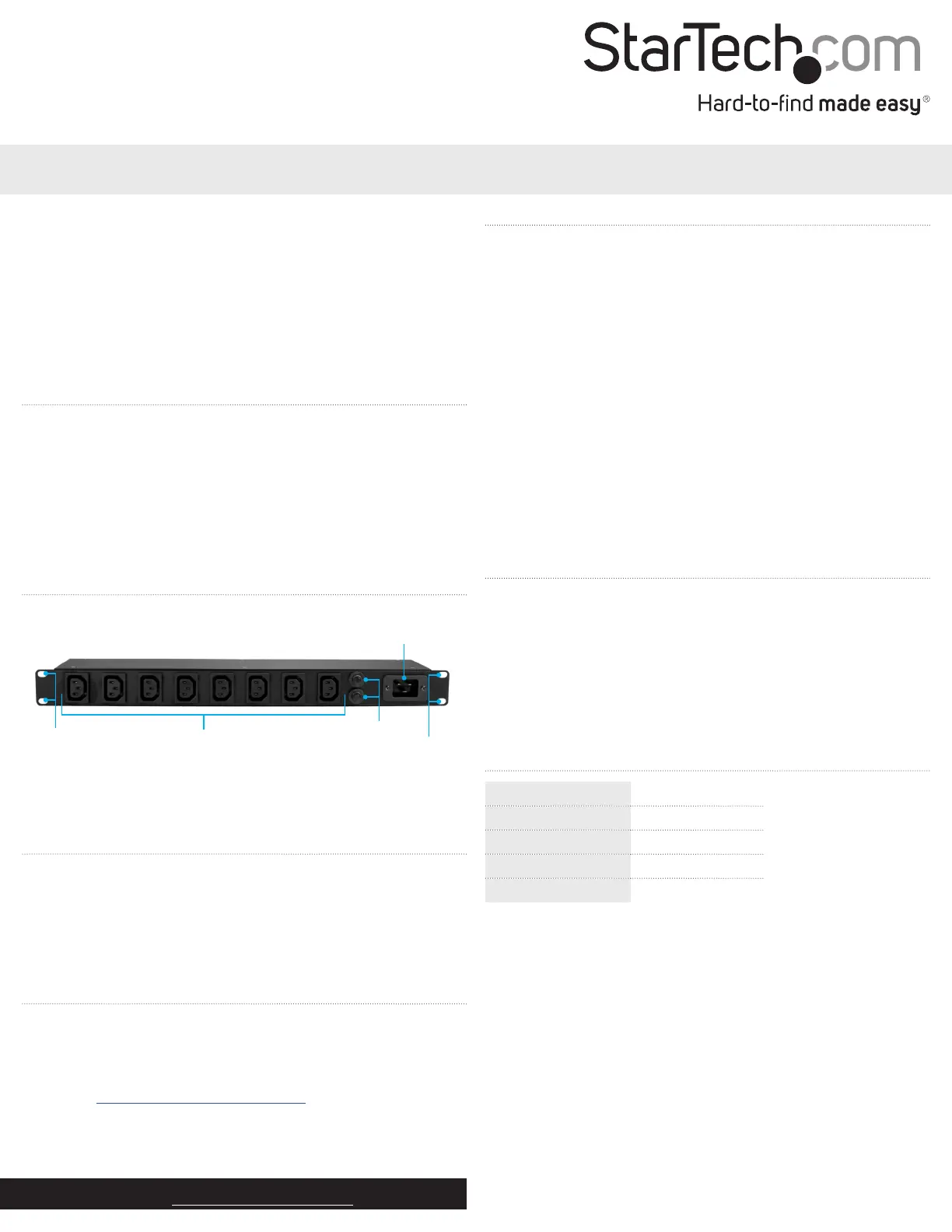

Product diagram

C13 outlets

Reset buttons

C20 power port

Mounting

holes

Mounting

holes

Package contents

• 1 x rack-mount PDU

• 1 x 10 ft. (3 m) C19 to NEMA5-20p power cord

• 4 x screws

• 4 x cage nuts

• 1 x instruction manual

Requirements

• Power source

• 1U of space in a server rack

Requirements are subject to change. For the latest requirements,

please visit www.StarTech.com/PDU08C13H.

Installation

The rack-mount PDU takes up 1U of space.

1. Line up the Mounting holes on the rack-mount PDU with the

mounting holes on your server rack.

2. Use the provided screws and cage nuts or the mounting hardware

that came with your rack to attach the rack-mount PDU to your

server rack.

3. Connect the power cord to the C20 power port on the rack-

mount PDU and a power source. Make sure that you connect the

power cord directly to the power source and not another PDU.

4. Connect the devices in your server rack to the C13 outlets on the

rack-mount PDU.

Caution!The combined power draw of all of the devices attached to

the rack-mount PDU shouldn’t exceed 16 A, otherwise you will trip

the built-in circuit breaker.

Troubleshooting

What do I do if I trip the circuit breaker?

If you trip the circuit breaker, complete the following:

1. Make sure that the combined power draw of all of the devices

attached to the rack-mount PDU doesn’t exceed 16 A.

2. Press one of the Reset buttons on the rack-mount PDU.

Specications

InputC20

OutputC13 (x8)

Voltage100 to 240 V ac

Maximum current16 A

Number of fuses2
