Quick-Start Guide
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Manual Revision: June 18, 2020

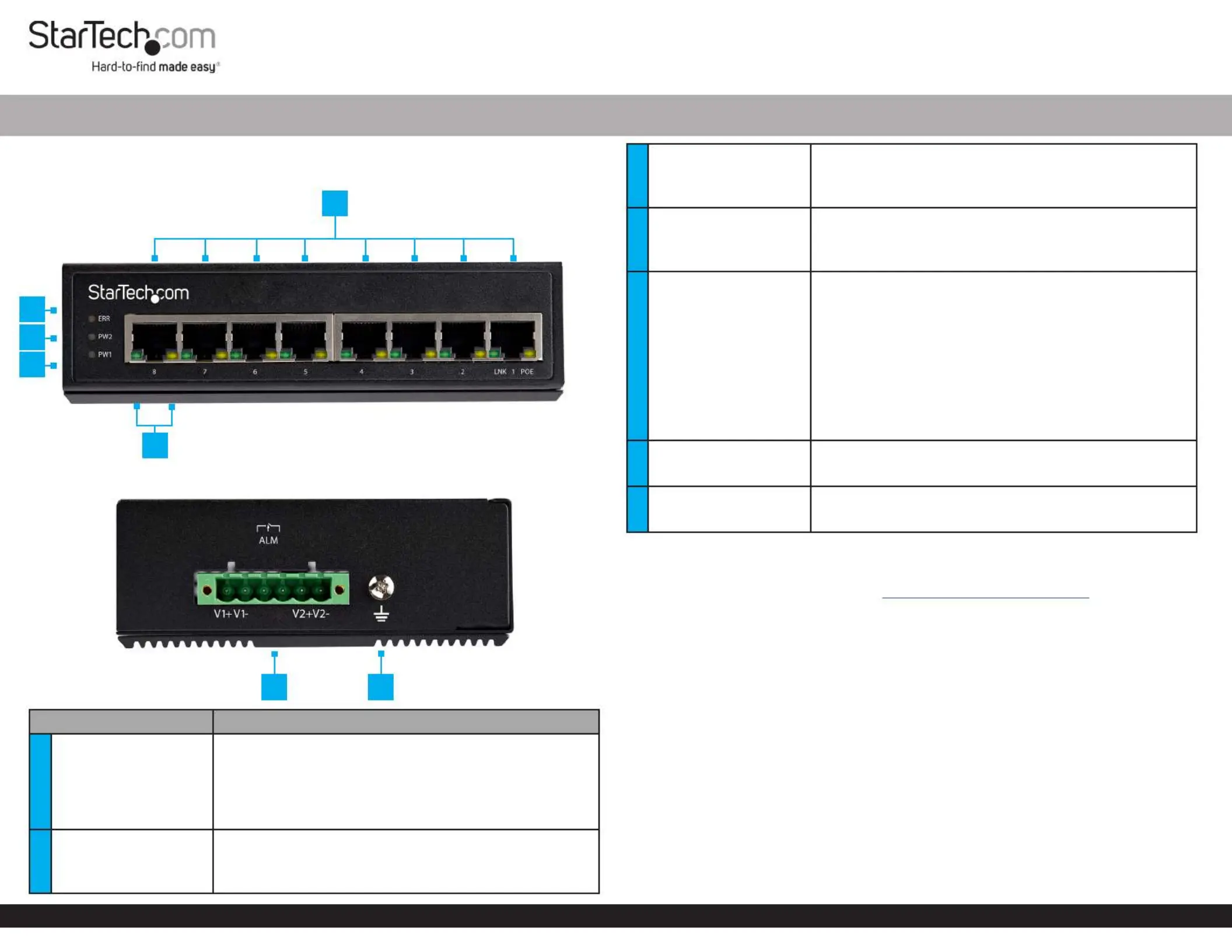

Product Diagram (IESC1G80UP)
Front View
Side View
ComponentFunction
1PoE Ports
• Connect any to provide an Network DeviceEthernet
ConnectionNetwork Devices to up to 8
• Provide a to 8 PoE ConnectionDevices
• Maximum PoE power budget is 30W per port up to a
total overall power budget of 200W
2ERR LED Indicator
• Color - Amber
• On - Either or is connectedPW1PW2
• O - Both and are connectedPW1PW2
8 Port Unmanaged Industrial-Grade Switch 10/100/1000 Mbps
3PW2 LED Indicator
• Color - Green
• On - when and are connectedPW2+PW2-
• O- when and are not connected PW2+PW2-
4PW1 LED Indicator
• Color - Green
• On - when and are connectedPW1+PW1-
• O- when and are not connectedPW1+PW1-
5PoE LED Indicators
• Indicates the link and status PoEPowered Device (PD)
of each PoE Port
LNK(Green)
• On - Network connection detected
• O - Network connection not detected
PoE (Amber)
• On - is detectedPoE
• O - is not detectedPoE
6
Terminal Block Power
Input Port
• Provides power to the PoE Ports
• Supported power input voltage range is 48-56V
7Grounding Screw
• Attach a to protect Grounding WireNetwork
Equipment
Requirements
For the latest requirements, please visit .www.startech.com/IESC1G80UP
• DC Power Supply x 1 (maximum of two)
• PoE Powered Device x (up to) 8
• RJ45 Terminated UTP/STP Cat 5e (or better) Network Cable (sold separately) x 8
• Earth Ground Connection x 1
• Grounding Wire x 1
• (Optional - for power) Flat Head Screwdriver x 1
• (Optional) #2 Phillips Head Screwdriver x 1
• (Optional) Screws for Wall Mounting x 2
Installation
Grounding the Switch
1. Using the loosen the on the . Phillips Head ScrewdriverGrounding Screw Switch
2. Attach the to the . Grounding WireGrounding Screw
67
2
3
4
5
1
Product specificaties
| Merk: | StarTech.com |
| Categorie: | Niet gecategoriseerd |
| Model: | IESC1G80UP |
| Kleur van het product: | Zwart |
| Gewicht: | 536 g |
| Breedte: | 105 mm |
| Diepte: | 142 mm |
| Hoogte: | 39.6 mm |
| Gewicht verpakking: | 781 g |
| Breedte verpakking: | 211 mm |
| Diepte verpakking: | 162 mm |
| Hoogte verpakking: | 64 mm |
| Materiaal behuizing: | Aluminium |
| Internationale veiligheidscode (IP): | IP30 |
| LED-indicatoren: | Ja |
| Snelstartgids: | Ja |
| Vermogensverbruik (max): | 206 W |
| DC voltage input: | 48 - 56 V |
| Certificering: | CE, FCC, UL, ROhS |
| Netwerkstandaard: | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Rack-montage: | Nee |
| Mean time between failures (MTBF): | 693764 uur |
| Ophangsysteem voor aan de muur: | Ja |
| Auto MDI/MDI-X: | Ja |
| Power over Ethernet (PoE): | Ja |
| Switchingcapaciteit: | 16000 Gbit/s |
| MAC-adrestabel: | - entries |
| 10G support: | Nee |
| Datastroombeheer: | Ja |
| Switch type: | Unmanaged |
| Aantal basis-switching RJ-45 Ethernet-poorten: | 8 |
| Aantal Gigabit Ethernet (koper)-poorten: | 8 |
| Type basis-switching RJ-45 Ethernet-poorten: | Gigabit Ethernet (10/100/1000) |
| Jumbo Frames ondersteuning: | Ja |
| Full duplex: | Ja |
| (Buitenste) hoofdverpakking hoogte: | 225 mm |
| (Buitenste) hoofdverpakking breedte: | 355 mm |
| (Buitenste) hoofdverpakking lengte: | 345 mm |
| Hoeveelheid per (buitenste) hoofdverpakking: | 10 stuk(s) |
| Buffergrootte: | 128 KB |
| Code geharmoniseerd systeem (HS): | 85176990 |
| Totaal Power over Ethernet (PoE)-budget: | 200 W |
| Aantal Power over Ethernet plus (PoE +)-poorten: | 8 |
| Jumbo frames: | 9000 |
| DIN rail bevestiging: | Ja |
| Klemmenblok inclusief: | Ja |
| Ondersteundende kabel types: | Cat5e, Cat6 |
| Spanningsbeveiliging: | Ja |
| Vermogen per poort Power over Ethernet (PoE): | 30 W |
| Klemmenblokpoort: | Ja |
| Overspanningsbeveiliging in voltage: | 2 kV |
