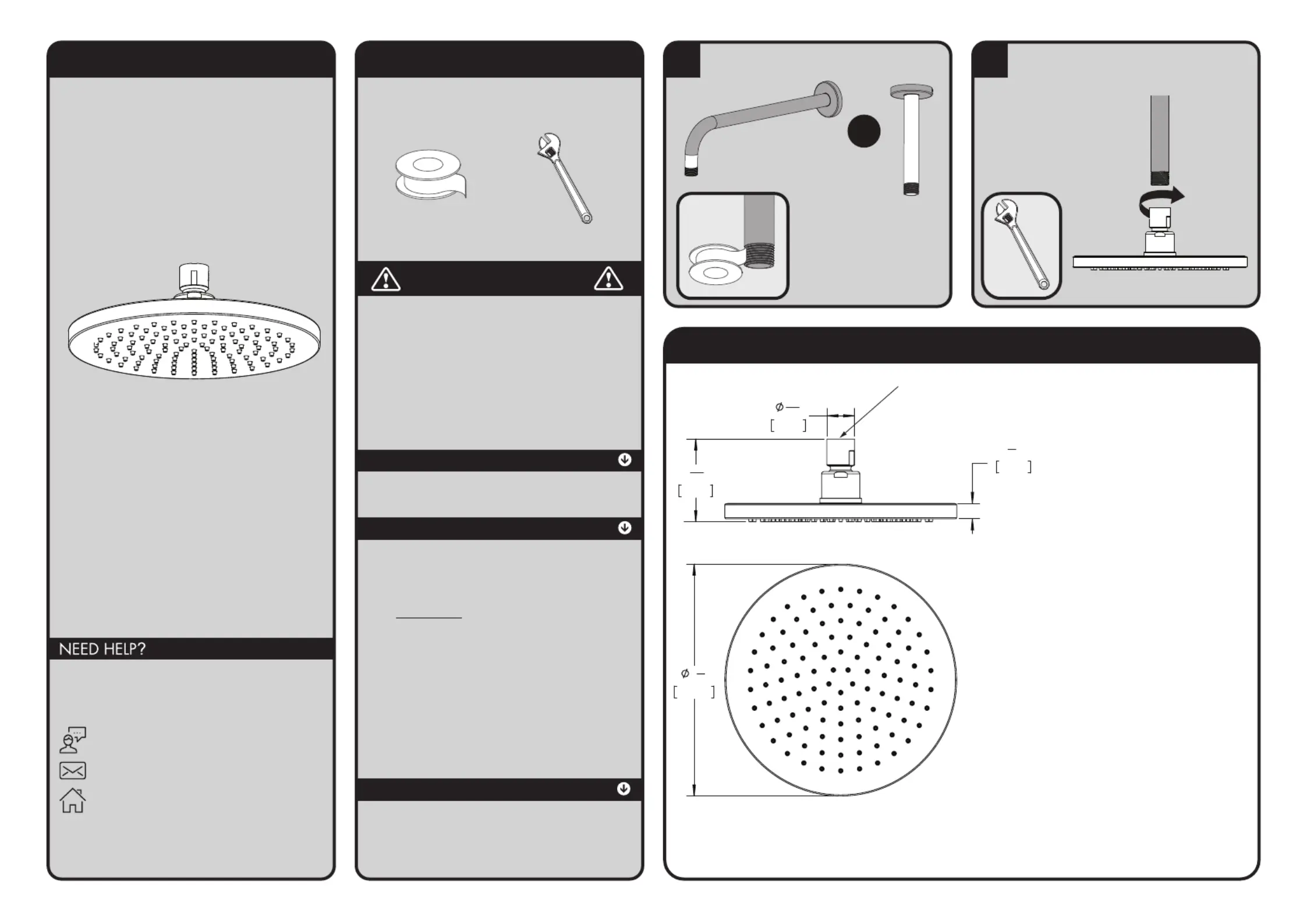

INSTRUCTIONS FOR MODELS

92-S-2762-05

For additional assistance or service please contact:

SPEAKMAN

®

800-537-2107

customerser[email protected]

www.speakman.com

S-2762 (-E2) (-E175) (-E15)

TOOLS AND SUPPLIES

IMPORTANT

SAFETY TIPS

Cover your drain to prevent loss of parts.

MAINTENANCE

WARRANTY

Warranty information can be found at:

www.speakman.com

Thread Seal

Tape

(INCLUDED)

Adjustable

Wrench

Be sure to read instructions thoroughly before

beginning installation. Do not overtighten any

connections or damage may occur.

NOTE: Rain shower heads are intended to be used

with a vertical drop shower arm. If used at an angle,

the shower head will not produce the correct flow

rate for the product.

Periodic cleaning using a mild soap and warm water

will help keep your Shower Head's appearance in its

original condition.

For best results, dry immediately with a soft, clean

cloth. DO NOT USE harsh and/or abrasive cleaners.

In certain water conditions, mineral deposits may

form. To remove these deposits, it is recommended

that you soak the shower head in a solution of 2 parts

vinegar to 1 part water for one hour. Rinse thoroughly

with fresh water. Brush off any remaining mineral

deposits from the spray channels.

1

Apply Thread Seal Tape to the outlet side of a

vertical drop shower arm.

OR

2

Thread Shower Head onto shower arm by turning

it in a clockwise direction. Tighten with adjustable

wrench. Turn water supply on and check for leaks.

ROUGH IN DIMENSIONS

DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Model:S-2762-E175

Max. Flow Rate:1.75 gpm (6.6 L/min)

Min. Flow Rate:1.5 gpm (5.7 L/min) @ 45psi

FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED

AT 5.7 L/MIN (1.50 GPM) OR LESS.

Model:S-2762-E15

Max. Flow Rate:1.5 gpm (5.7 L/min)

Min. Flow Rate:1.3 gpm (4.9 L/min) @ 45psi

FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED

AT 4.2 L/MIN (1.1 GPM) OR LESS.

Model:S-2762

Max. Flow Rate:2.5 gpm (9.5L/min)

Min. Flow Rate:2.0 gpm (7.6 L/min) @ 45psi

FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED

AT 7.6 L/MIN (2.0 GPM) OR LESS.

Model:S-2762-E2

Max. Flow Rate:2.0 gpm (7.6 L/min)

Min. Flow Rate:1.75 gpm (6.6 L/min) @ 45psi

FOR USE WITH AUTOMATIC COMPENSATING VALVES RATED

AT 6.6 L/MIN (1.75 GPM) OR LESS.

15

16

"

24mm

7

7

8

"

200mm

1

2

"

13mm

2

9

16

"

65mm

Inlet:

½” NPT Female
