SS-ATB - Adjustable Tilt Bracket
OWNER’S MANUAL
© 2021 MSE Audio. Rev. 02.25.2021
360º of the Best Sound Around™
Contact: MSE Audio, 855.663.5600 / 913.663.5600 / sales@mseaudio.com
1. Assemble the ATB to the loudspeaker’s leg, with the ‘U’ bolts
supplied, as shown. Note that the stop bracket pad faces the
reector.
2. Tighten the nylon locknuts on the ‘U’ bolts until snug.almost
3. Slide the ATB along the leg toward the reector of the
loudspeaker until the Stop Bracket Pad the rim rmly contacts
of the reector.
4. Secure the locknuts taking care to keep the Stop Bracket Pad
at against the reector rim.
ATB Nomenclature & Assembly
BOOM BRACKET
LEG CHANNEL
PIVOT BRACKET
ANGLE ADJUSTING
HOLES & LOCKING
BOLT
STOP BRACKET
STOP BRACKET PAD
LEG OF LOUDSPEAKER
‘U’ BOLTS
Assembly Details

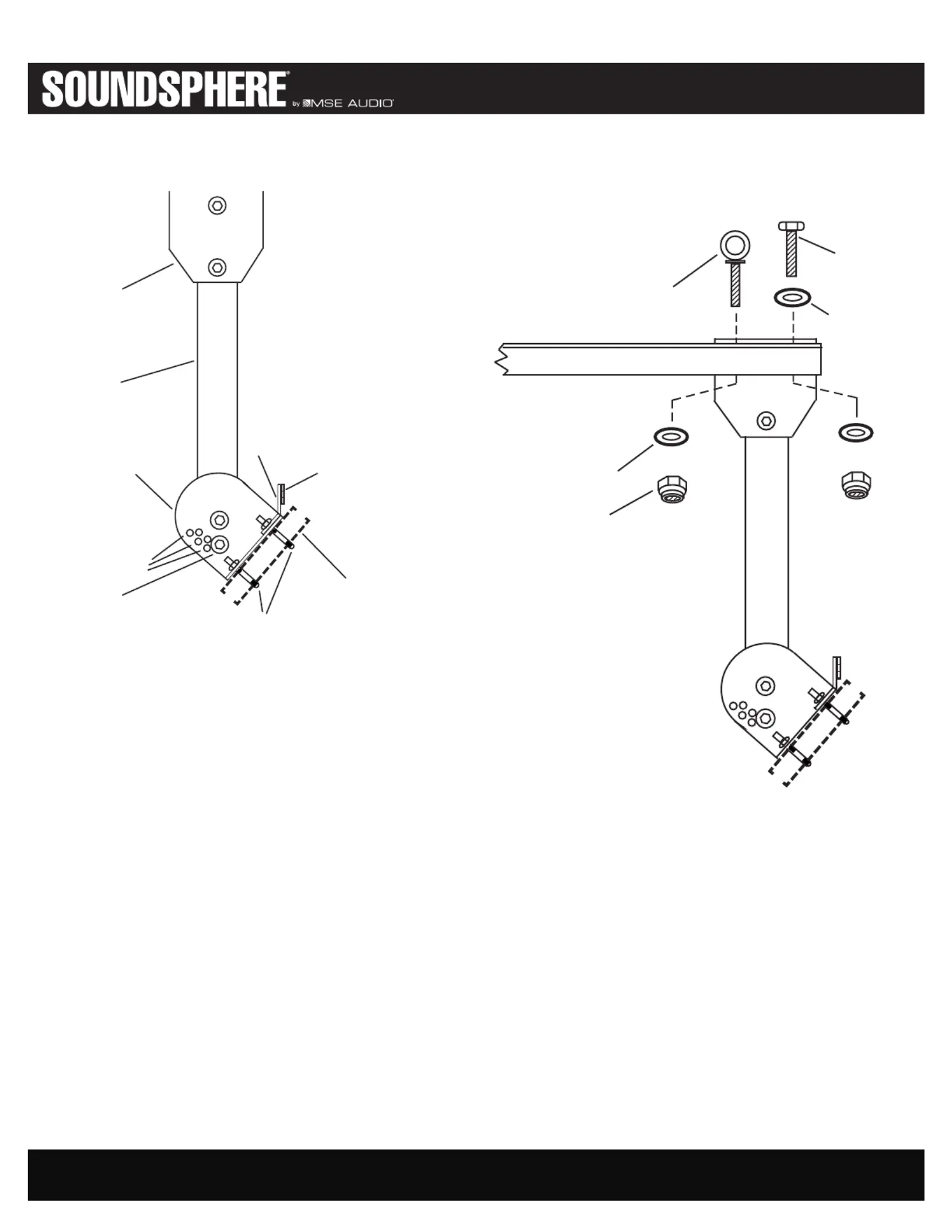

Mounting the ATB to the BK-2 & BK-4
EYE BOLT
HEX BOLT
FLAT WASHER
FLAT WASHER
LOCKNUT
1. Assemble the ATB to the loudspeaker’s leg, with the ‘U’ bolts
supplied, as shown.
2. Tighten the nylon locknuts on the ‘U’ bolts until snug.almost
3. Slide the ATB along the leg toward the reector of the
loudspeaker until the Stop Bracket Pad the rim rmly contacts
of the reector.
4. Secure the locknuts taking care to keep the Stop Bracket Pad
at against the reector rim.
SS-ATB - Adjustable Tilt Bracket
OWNER’S MANUAL
© 2021 MSE Audio. Rev. 02.25.2021
360º of the Best Sound Around™
Contact: MSE Audio, 855.663.5600 / 913.663.5600 / sales@mseaudio.com
HEX BOLTHEX BOLT
FLAT WASHER
LOCKNUT
EYE BOLT
FLAT WASHER
Assembly Details

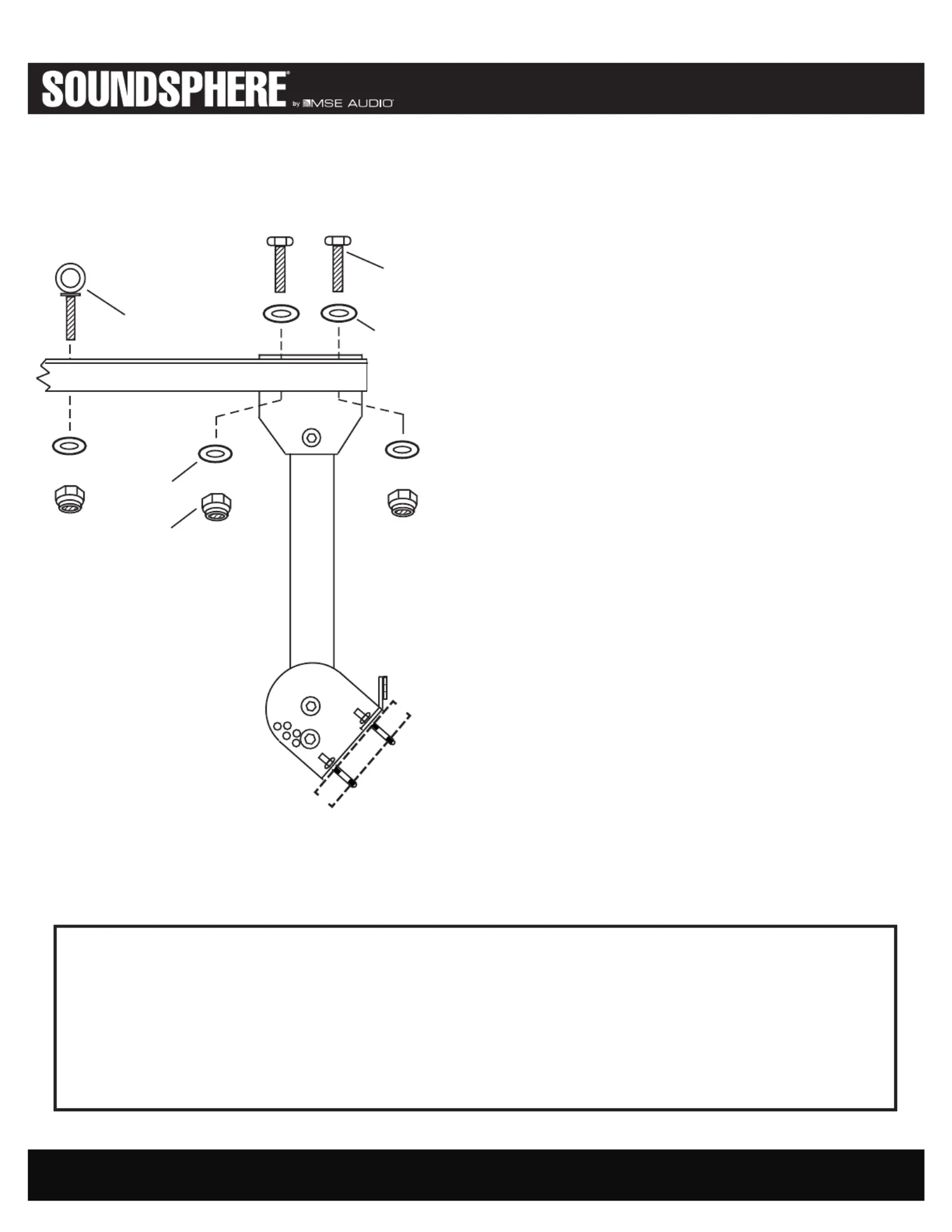

Mounting the ATB to the BK-3 & BK-5
1. Assemble the ATB to the loudspeaker’s leg, with the ‘U’ bolts
supplied, as shown.
2. Tighten the nylon locknuts on the ‘U’ bolts until snug.almost
3. Slide the ATB along the leg toward the reector of the
loudspeaker until the Stop Bracket Pad the rim rmly contacts
of the reector.
4. Secure the locknuts taking care to keep the Stop Bracket Pad
at against the reector rim.
WARNING
Be sure to securely tighten all hardware before hanging the loudspeaker. Wire rope (steel cable), cable clamps with
saddles and thimbles of suitable size and strength are the recommended materials for overhead suspensions. All
loudspeakers should be redudantly safety wired to structural members of the building with an approved safety wire
system or other agency certied materials.
IMPORTANT: Always check local safety codes before installing any overhead loudspeaker system and for periodic
inspection and maintenance of the installation.
