Pagina 1/36

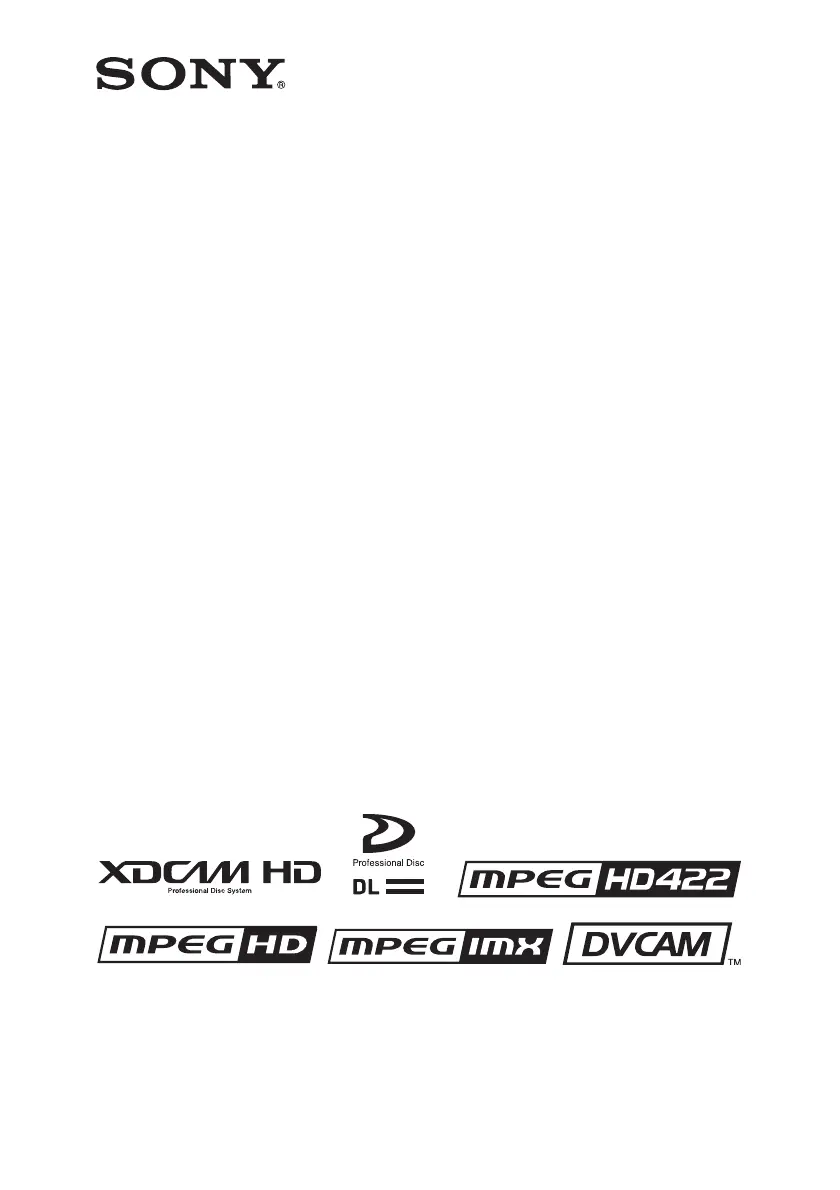

PROFESSIONAL DISC DRIVE UNIT

PDW-U1

OPERATION MANUAL

[English]

2nd Edition (Revised 6)

To reduce the risk of fire or electric shock,

do not expose this apparatus to rain or

moisture.

To avoid electrical shock, do not open the

cabinet. Refer servicing to qualified

personnel only.

WARNING

When installing the unit, incorporate a

readily accessible disconnect device in the

fixed wiring, or connect the power plug to

an easily accessible socket-outlet near the

unit. If a fault should occur during

operation of the unit, operate the disconnect

device to switch the power supply off, or

disconnect the power plug.

WARNING: THIS WARNING IS

APPLICABLE FOR USA ONLY.

If used in USA, use the UL LISTED power

cord specified below.

DO NOT USE ANY OTHER POWER

CORD.

Plug Cap Parallel blade

(NEMA 1-15P Configuration)

Cord Type NISPT-2 or SPT-2, two

16 or 18 AWG wires

Length Minimum 1.5 m (4 ft. 11in.),

Less than 2.0 m (7 ft.)

Rating Minimum 7A, 125V

Using this unit at a voltage other than 120V

may require the use of a different line cord

or attachment plug, or both. To reduce the

risk of fire or electric shock, refer servicing

to qualified service personnel.

WARNING: THIS WARNING IS

APPLICABLE FOR OTHER

COUNTRIES.

1. Use the approved Power Cord (2-core

mains lead) / Appliance Connector / Plug

that conforms to the safety regulations of

each country if applicable.

2. Use the Power Cord (2-core mains lead) /

Appliance Connector / Plug conforming

to the proper ratings (Voltage, Ampere).

If you have questions on the use of the

above Power Cord / Appliance Connector /

Plug, please consult a qualified service

personnel.

The PDW-U1 is classified as a CLASS 1

LASER PRODUCT.

Laser diode properties

Wavelength: 400 to 410 nm

Emission duration: Continuous

Laser output power: 135 mW (max. of

pulse peak), 65 mW (max. of CW)

Tekniska data för laserdiod

Våglängd: 400 till 410 nm

Emissionslängd: Kontinuerlig

Laseruteffekt: 135 mW (max. för

pulstopp), 65 mW (max. för kontinuerlig

våg)

Spesifikasjoner laserdiode

Bølgelengde: 400 til 410 nm

Strålingens varighet: Kontinuerlig

Laserens effekt: 135 mW (maks

stråletoppunkt), 65 mW (maks ved

kontinuerlig stråling)

Laserdiodin ominaisuudet

Aallon pituus: 400 - 410 nm

Välityksen kesto: Jatkuva

Laserlähdön teho: 135 mW (sykehuipun

maks.), 65 mW (jatkuvan aallon maks.)

WARNING

Product specificaties

Merk:	Sony
Categorie:	Niet gecategoriseerd
Model:	PDW-U1
Gewicht:	1400 g
Breedte:	59 mm
Diepte:	226 mm
Hoogte:	164 mm
Temperatuur bij opslag:	5 - 40 °C
Luchtvochtigheid bij opslag:	20 - 90 procent
Type product:	Opslagschijf
Media type:	Magneet-optische schijf
