Operating Instructions

3-903-974-15(1)

HD 3CCD Color

Video Camera

© 2005 Sony Corporation

BRC-H700

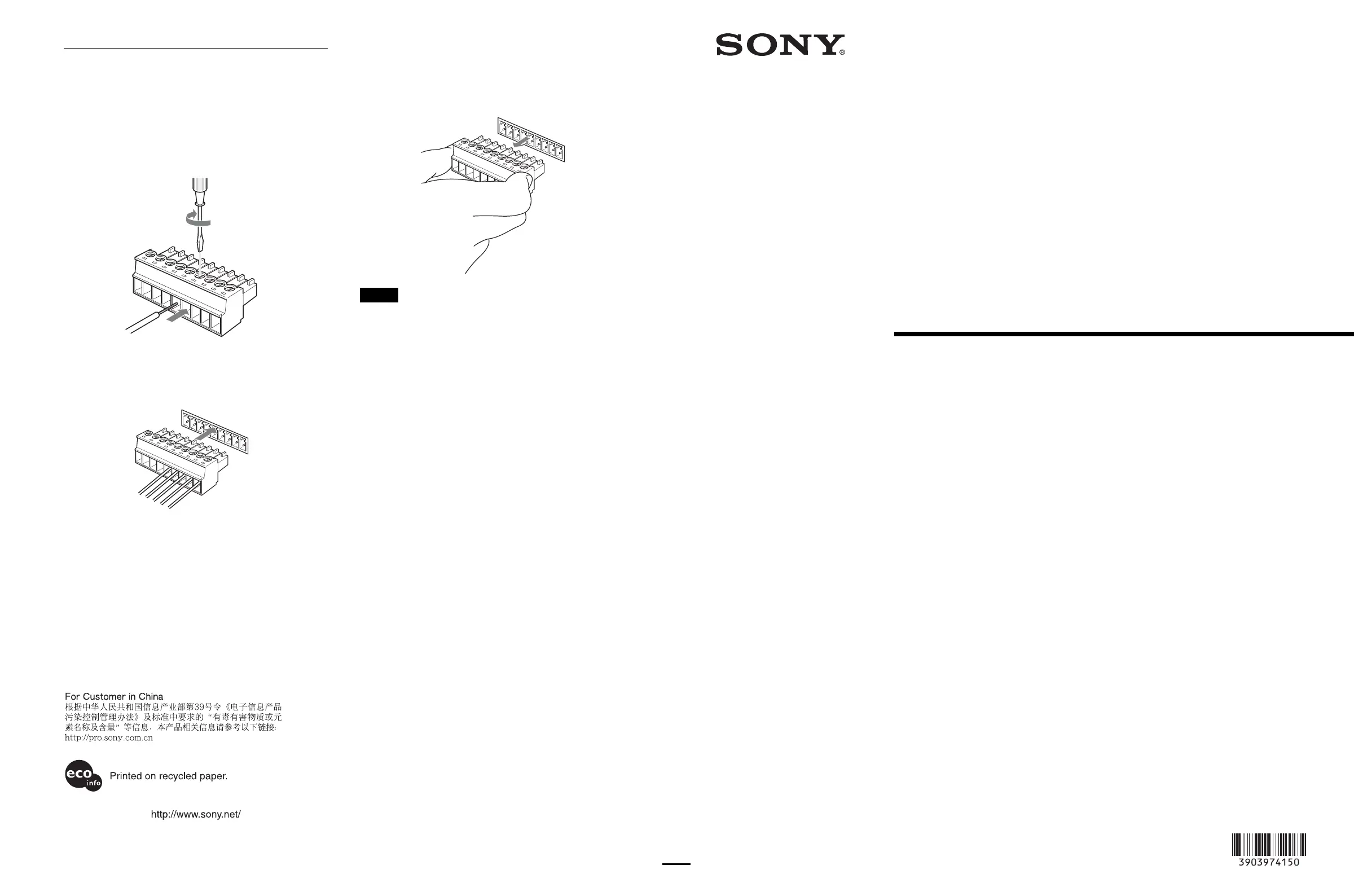

Using the VISCA RS-422 Connector

Plug

1

Insert a wire (AWG Nos. 28 to 18) into the desired

wire opening on the VISCA RS-422 connector

plug, and tighten the screw for that wire using a flat-

head screwdriver.

2

Insert the VISCA RS-422 connector plug into the

VISCA RS-422 connector.

To remove the connector plug

Grasp both ends of the VISCA RS-422 connector plug

and pull it out as shown in the illustration.

Notes

•In order to stabilize the voltage level of the signal,

connect both ends to GND.

•When the connections using the VISCA RS-422

connectors are made, the VISCA RS-232C connection

is not available.

•The maximum connection distance with the VISCA

RS-422 connection is approximately 1,200 m (3,937

feet).

Wire

Flat-head screwdriver

12

34

5678

9

12

3

4

5678

9
