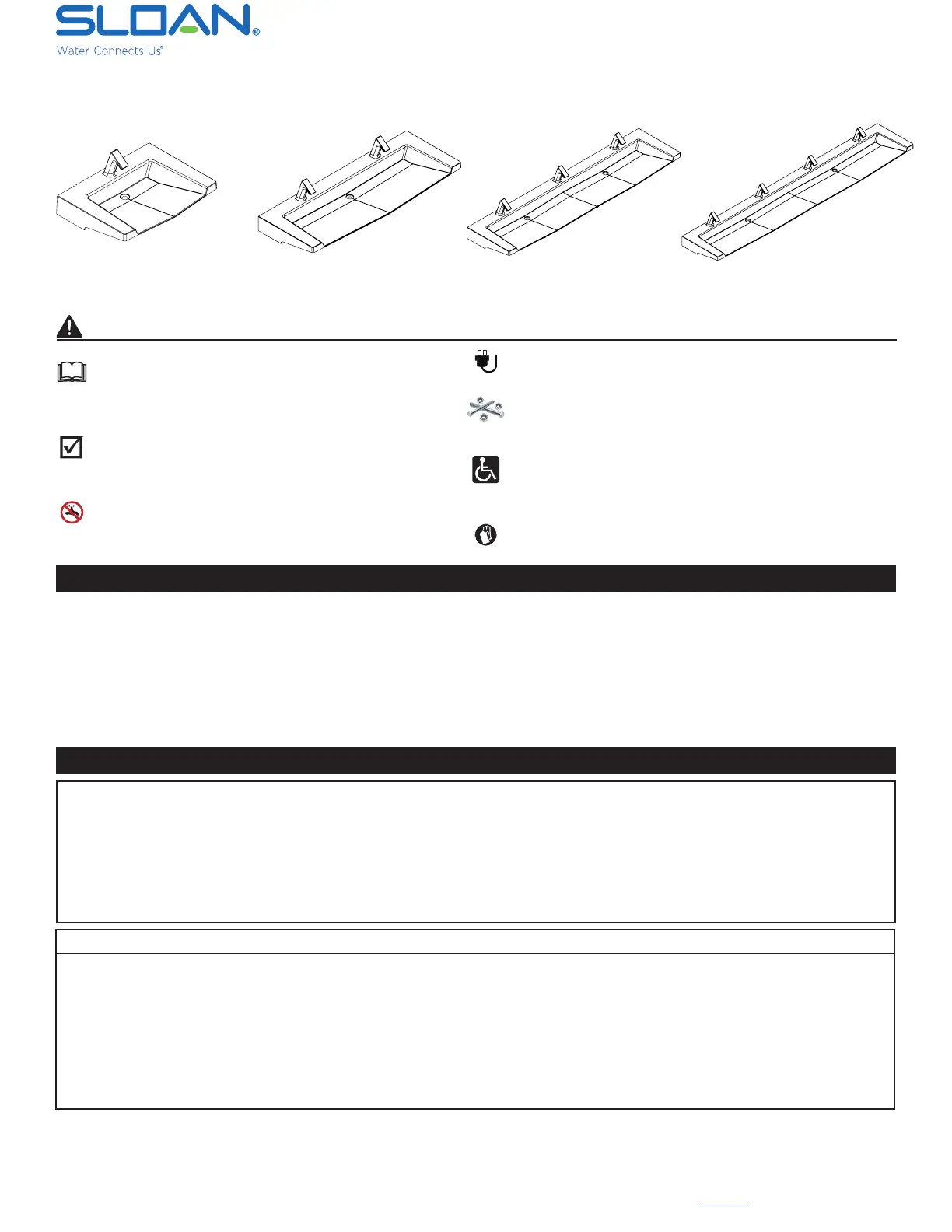

Electronic Lavatory Arrowhead

One, Two, Three, and Four Station

ELA-81000

Electronic Lavatory System

ELA-82000

Electronic Lavatory System

ELA-83000

Electronic Lavatory System

ELA-84000

Electronic Lavatory System

Important

Read this entire installation manual to ensure proper

installation. When nished with the installation, le this

manual with the owner or maintenance department.

Compliance and conformity to local codes and

ordinances is the responsibility of the installers.

Separate parts from packaging and make sure

all parts are accounted for before discarding any

packaging material. If any parts are missing, do not

begin installation until all parts are obtained.

Make sure that all water supply lines have been

ushed and completely turned off before starting the

installation. Debris in supply lines can cause valves to

malfunction.

Turn off electrical power to the electrical outlets, then

unplug units prior to installation. Electrical power MUST

remain off until installation is complete.

Installers hardware must be appropriate for wall

construction. Wall anchors and mounting fasteners MUST

have a minimum pull-out rating of 1,000 lbs for 3/8” hole.

For standard height mounting, DO NOT exceed the

recommended 34 inch distance from the top of the sink

deck to the nished oor. To meet ADA requirements

the sink deck cannot not exceed the 34 inch maximum

height dimension.

Wear all proper safety equipment prior to installation

CAUTION:

Adequate structural support in or behind the wall is required. Refer to the appropriate rough-in diagram for dry weight of sink.

All electrical wiring is to be installed in accordance with national/local codes and regulations. Electrical outlets should be recessed and

installed prior to installation.

All plumbing should be installed in accordance with applicable codes and regulations.

Before connecting ex hoses to supply stops, ush all water lines until water is clear.

Hot and cold water supply lines/tempered supply line and drain lines. Recommended to have Control Stops on water supply lines in

place prior to installation.

Limited Warranty

Unless otherwise noted, Sloan Valve Company warrants its Products to be made of rst class materials, free from defects of material or

workmanship under normal use and to perform the service for which they are intended in a thoroughly reliable and efcient manner

when properly installed and serviced, for a period of three years (1 year for SF Faucets, special nishes and PWT electronics and 30 days

on PWT software) from date of purchase. During this period, Sloan Valve Company will, at its option, repair or replace any part or parts

which prove to be thus defective if returned to Sloan Valve Company, at customer’s cost, and this shall be the sole remedy available

under this warranty. No claims will be allowed for labor, transportation or other incidental costs. This warranty extends only to persons or

organizations who purchase Sloan Valve Company’s products directly from Sloan Valve Company for purpose of resale. This warranty

does not cover the life of the batteries.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. IN NO EVENT IS SLOAN VALVE COMPANY

RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY MEASURE WHATSOEVER.

Prior to Installation

Tools and Supplies Required for Installation

•Electric drill for drilling anchor holes

•Standard sockets, basin wrench, and open end wrench set for

installing anchoring fasteners and faucets

•Pipe wrench for installing drain lines

•Phillips and straight blade screwdrivers

•Tubing cutter

•Level

•Carpenter’s square

•Caulk gun

•1/2” NPT hot/cold or tempered supply piping

•1 1/2” NPT drain piping including p-trap

•Adhesive: Loctite® PL Premium® FAST GRAB Polyurethane

Construction Adhesive, or equivalent

•110 volt GFCI protected electrical outlet for 100-120 VAC

plug-in transformer

•Screen lter(s) included with faucet(s)

•Backing supplied by others to meet local codes

Installation Instructions

Code No.0816151

(03/2018)
