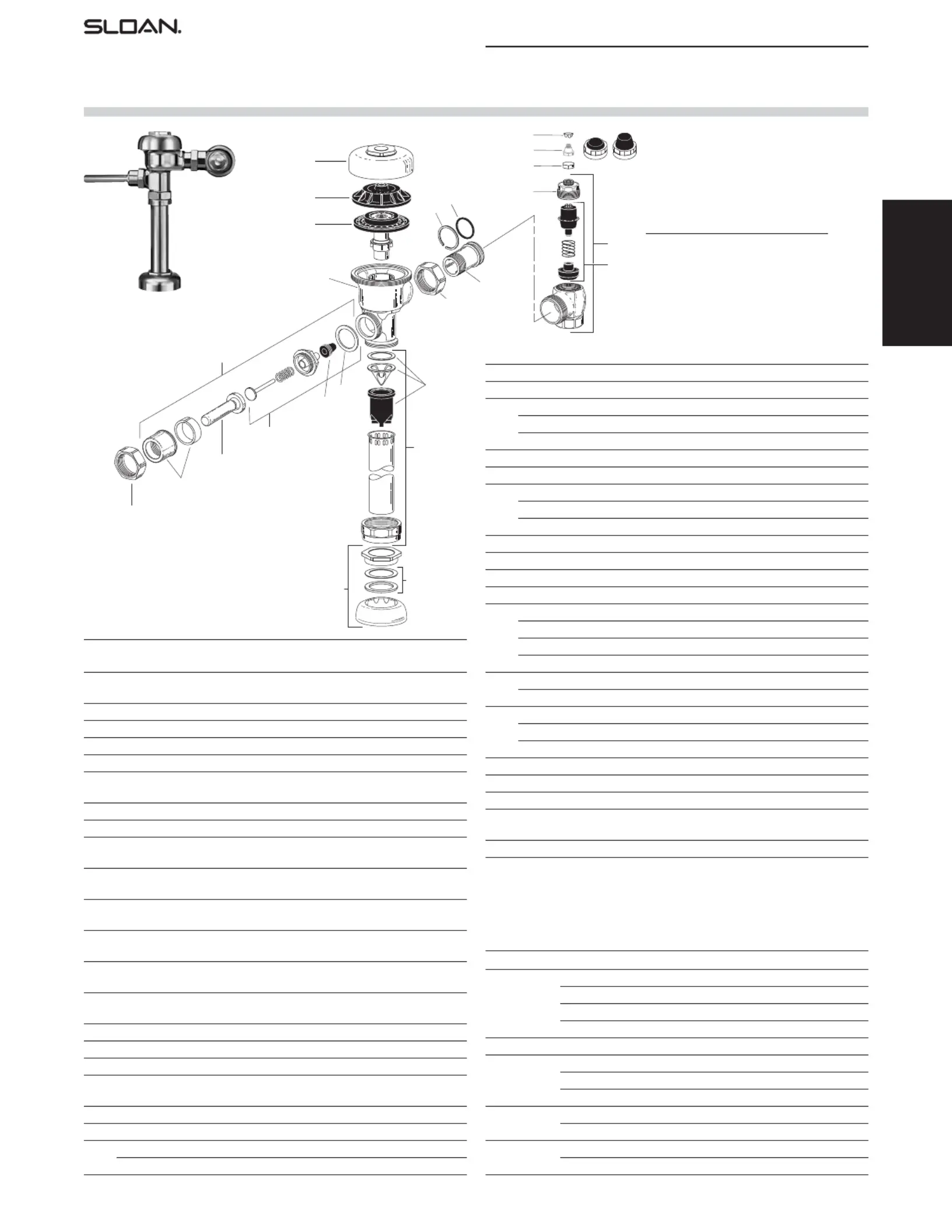

Regal

®

Flushometer

Repair Parts and Maintenance Guide

19

Valve Body

(not sold separately)

7

(Items 3 thru 6,

refer to illustration

on next page.)

2

10

11

12

13

8

14

16

17

15

9

1

25

26

27

28

24

23

20A

20B

19

18

21

22

15A

The repair kits and parts listed on this page are

designed to service all Sloan diaphragm type

flushometers, including those manufactured for

low consumption (LC) usage.

ABBREVIATIONS:

CP = Chrome plated

gpf = gallons per flush

Lpf = Liters per flush

LC = Low consumption

pkg = package

PARTS LIST

Item

No.Code No.Part No.Description

1.0317004R-10CP Cover

—R-10-HECP High Efficiency Cover

2.0301168A-71Inside Cover

SEE ITEMS 3A THROUGH 6E IN CHART ON NEXT PAGE

3A. 5301058A-19-ACRelief Valve, White (Closet) – 12 per package

3B. 5301059A-19-AURelief Valve, Black (Urinal) – 12 per package

3C.5301211A-19-ALCRelief Valve, Green (Closet/Urinal-LC) –

12 per package

3D.0301143A-19-ALRelief Valve, Blue (9 Liter Closet) – 12 per package

4.5301111A-15-ADisc – for all Inside Parts Kits – 12 per package

5.5301188A-156-ADiaphragm – for all Inside Parts Kits –

12 per package

6A.5301236A-163-AGuide Assembly 4.5 gpf/17.0 Lpf Closet &

1.5 gpf/5.7 Lpf Urinal –12 per package

6B.5301032A-152-AGuide Assembly 3.5 gpf/13.2 Lpf Closet –

12 per package

6C.5301031A-151-AGuide Assembly 1.6 gpf/6.0 Lpf LC Closet –

12 per package

6D.5301155A-155-AGuide Assembly 1.0 gpf/3.8 Lpf LC Urinal –

12 per package

6E.5301157A-157-AGuide Assembly 0.5 gpf/1.9 Lpf Urinal –

12 per package

7.SEE INSIDE PARTS KITS CHART ON NEXT PAGE

8.5302297B-39Seal – 12 per package

9.5302279B-32-ACP Handle Assembly – 6 per package

0302390B-73-ACP Handicap Handle Assembly

(ADA Compliant)

10.0301082A-6CP Handle Coupling

11.0302109B-7-ACP Socket Assembly

12.5302274B-32CP Handle Grip – 12 per package

0302389B-74-ACP Handicap Handle Grip (ADA Compliant)

Item

No.Code No.Part No.Description

13.5302305B-50-AHandle Repair Kit – 6 per package

14. 5301139A-31Handle Gasket – 48 per package

15.0306102F-54-A3/4'' CP Spud Coupling Assembly

0306142F-55-A1-1/4'' CP Spud Coupling Assembly

0306145F-56-A1-1/2'' CP Spud Coupling Assembly

15A.SEESLIP JOINT GASKETS AND RINGS TABLE BELOW

16.3323192V-551-AVacuum Breaker Repair Kit

17.5323005V-500-AA3/4'' x 9'' CP Vacuum Breaker – 6 per package

5323006V-500-AA1-1/4'' x 9'' CP Vacuum Breaker – 6 per package

5323007V-500-AA1-1/2'' x 9'' CP Vacuum Breaker – 6 per package

18.0308676H-550CP Stop Coupling

†

19.0308801H-551-ACP Adjustable Tailpiece 2-1/16'' long

†

20A.5308696H-553O-ring – 24 per package

20B.5308381H-552Locking ring – 12 per package

21.0388065H-790-A1'' Screwdriver Bak-Chek

®

Stop CP – complete

0388064H-790-A3/4'' Screwdriver Bak-Chek

®

Stop CP – complete

0388029H-740-A1'' Screwdriver Bak-Chek

®

Stop CP –OBSOLETE

0388031H-740-A3/4'' Screwdriver Bak-Chek

®

Stop CP –OBSOLETE

22.3308853H-541-ASD1'' Control Stop Repair Kit *

3308856H-543-ASD3/4'' Control Stop Repair Kit **

23.0308612H-622CP Bonnet (Current Regal)

.0308991H-639CP Bonnet –Pre 2010 Regal Stops*

0308601H-538CP Bonnet ** –OBSOLETE

24.5388001H-1012-ACP Cap – 6 per package VP

25.5310034J-2/J-7Bumper Assembly – 6 per package –OBSOLETE

26.3308866H-574Stop Cap, chrome plated with Seat Bumper (-YO)

27.3308867H-576Stop Cap, chrome plated with Extended Seat

Bumper (-YG)

28.5388002H-528Hole Plug

†See pages 100-101 for additional lengths

*For use with 1" and 3/4" H-740-A CP (less cap) and 1" – H-540-A CP (with H-37 cap) Bak-Chek

®

screwdriver

control stops

**For use with 3/4" H-740-A CP Bak-Chek

®

screwdriver control stops

ITEM 15A. SLIP JOINT GASKETS AND RINGS

SizeCode No.Part No.Description

1-1/2”5306058F-3Red Friction Ring

5322001VBF-5Black Slip Joint Gasket

0319086/5319086S-30Flexible Seat

0319079S-21Rigid Seat (rubber over brass)

1-1/2” x 1-1/4”0396062F-105Slip Joint Gasket –Rigid

1-1/4”5306057F-3Red Friction Ring

5322176VBF-5Black Slip Joint Gasket

0307052/5307052G-21Rigid Seat (rubber over brass)

1”5306056F-3Red Friction Ring

5306115F-5Black Slip Joint Gasket

3/4”5306055F-3Red Friction Ring

5306113F-5Black Slip Joint Gasket

TAILPIECES, CONTROL STOPS

AND FLUSH CONNECTIONS

For additional information on

tailpieces, control stops and flush

connections see Showerheads, Parts

and Accessories Tab.

NOTE: Also for use with Regal

®

XL

(Since mid-2010)
