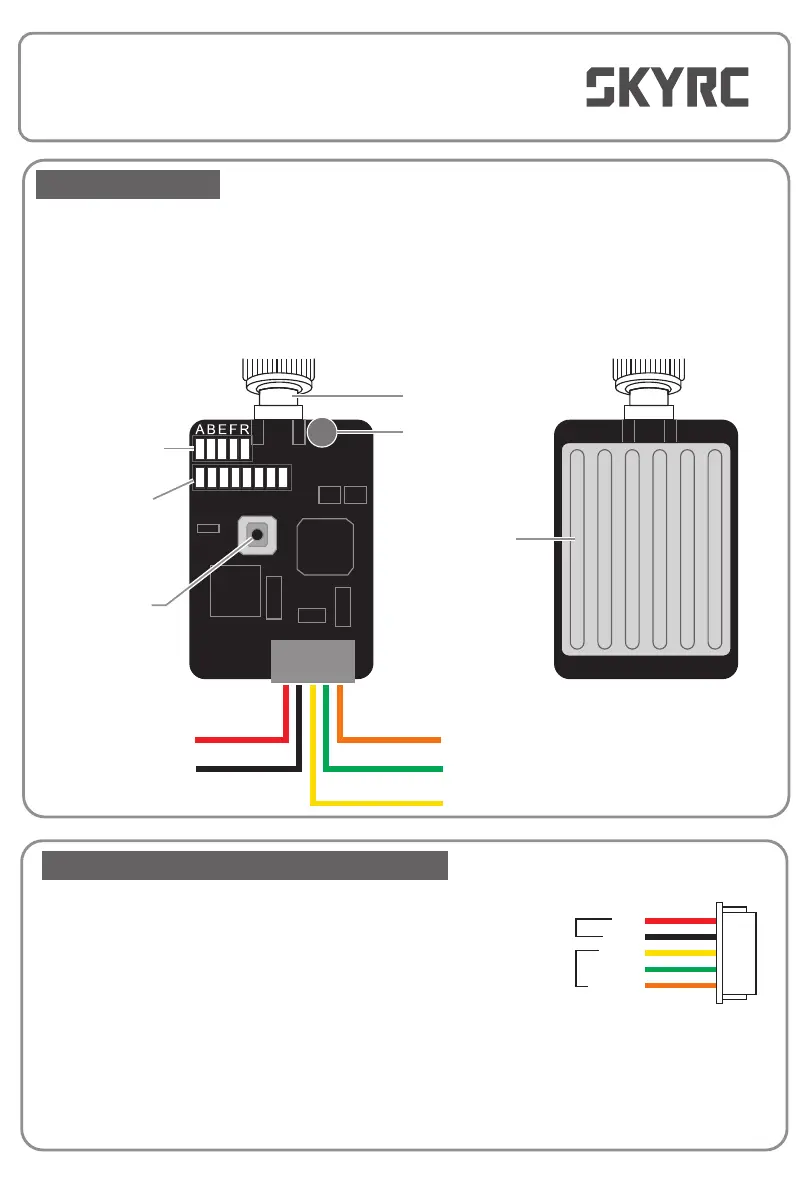

Red
7-18V Input
Ground Input
Black
Yellow
Video Input
Ground Output
Green
5V Output
to Camera
Orange
Microphone
SMA Connector
SkyRC S-WAVE's TX58200 FPV video transmitter (Tx) is used for sending video signals from a camera
mounted inside quadcopter to a 5.8GHz receiver (Rx) on the ground. The medium 200mW transmission
power means more pilots can fly together without overpowering each other on close frequencies.
TX58200 use single button, LEDs interface to select and display band/frequency. Five bands with a total
of 40 frequencies in the 5.8GHz spectrum can be selected by user. It also comes a clean pre-wired
harness. The Tx includes a 5V output to power FPV cameras and an on-board microphone to transmit
audio to your receiver.
Red
Black
Yellow
Green
Orange
ToBattery
ToCamera
Input Power Connection
Connect the red and black wire to the battery. Make sure
polarities match! Do NOT exceed the acceptable input
voltage range of 7.4 - 18 volts, which can be achieved
with a 2S-4S lithium-polymer(LiPo) battery.
Camera Connection
Connect the yellow, green and orange wire to the camera’s video signal output.
Yellow wire to video signal output
Green wire to ground
Orange wire to power input
INSTRUCTIONMANUAL
TX58200SK-600108-01
INTRODUCTION
CONNECT TO BATTERY AND CAMERA
Aluminum
Heat Sink
BAND/
CHANNEL
Button
BAND
LED Display
A,B,E,F,R
CHANNEL
LED Display
1,2,3,4,5,6,7,8
