Dimensions

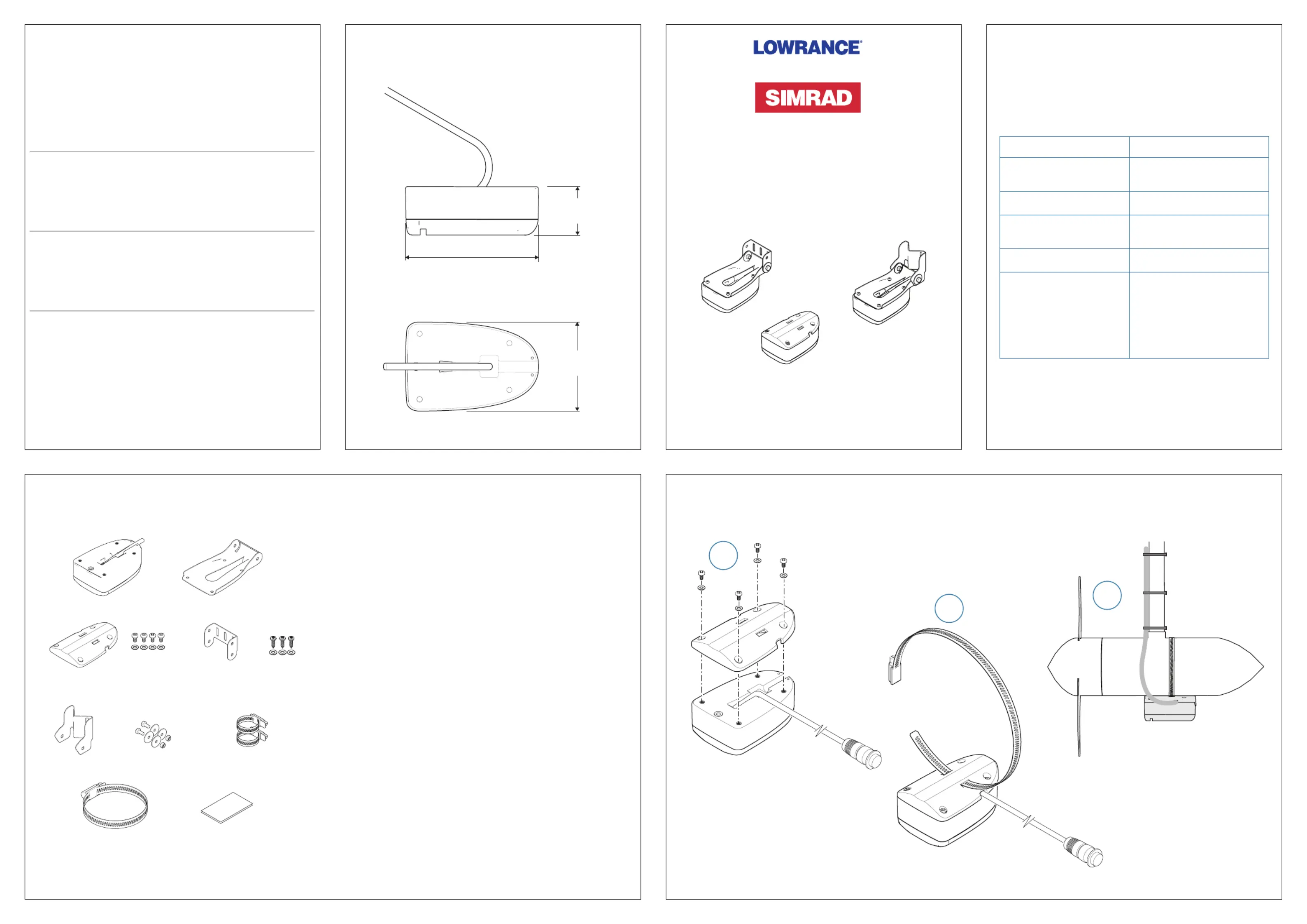

Parts included
Compliance statements
A. LiveSight transducer, incl. 7,6 m (25 ft) cable
B. Transducer bracket
C. Trolling motor adapter
D. Screws M4x8 Ph SS18-8 and washers (4x)
E. Transom mounting bracket
F. Screws #10x11/4” tap and washers (for transom
bracket) (x3)
G. Trolling motor pole adapter
H. Hex Flange Bolts M6-1x12, SS18-8, nuts and
washers (x2)
I. Clamp hose 20 SS (for trolling motor shaft) (x2)
J. Clamp hose 72 SS (for trolling motor adapter)
K. Documentation
LiveSight transducer
Installation Guide
Technical specications
Environmental
Water temperature for
operation
0°C to +35°C
(32°F to +95°F)
Physical
Weight (without cable) 0,614 kg
(1.354 lbs.)
Cable length 7,6 m (25 ft)
Mounting options • Transom
• Trolling motor shaft
(forward-looking)
• Trolling motor
(down-looking)
The relevant Declaration of conformity is
available in the product’s section at:
¼Note: The most up-to-date specications are
available at the product web site.
This product complies with:
• CE under EMC Directive 2014/30/EU
• the requirements of level 2 devices of the Radio
communications (Electromagnetic Compatibility)
standard 2017
Warning
The user is cautioned that any changes or modications not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
www.lowrance.com
www.simrad-yachting.com
*988-12333-001*
90 mm
3.5 “
50 mm
2.0 “
134 mm
5.3 “
A
B
C
F
H
I
G
E
K
J
D

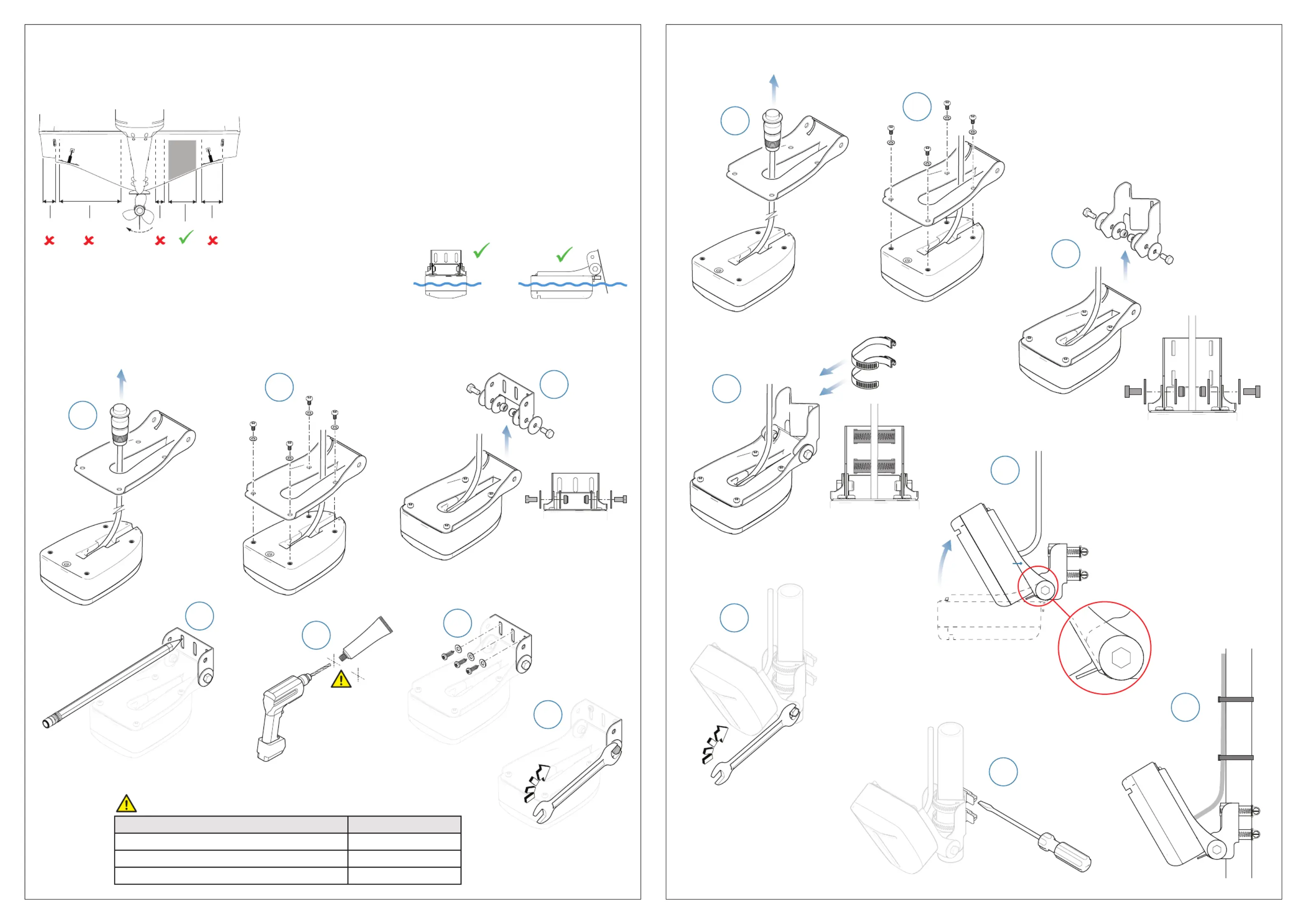

Trolling motor installation (down-looking)
3
4
8
5
1
2
6
7
B
A
1
2
4
5
6
7
3
Mount the transducer parallel
to the water surface.
Apply a marine high-
grade above- or below-
waterline sealant/
adhesive compound to
the pilot holes.
Torque to 7 Nm
(15 lbf in).
Tilt the transducer until the
bottom of the tranducer
bracket ( ) hits the bottom A
of the trolling motor shaft
bracket ( ).B
Mounting guidelines
Installation
¼Notes:
The transducer could lose bottom signal when the boat
is on plane.
The transducer will not work while it is out of the water.
Mirror the example if your boat has a
counterclockwise propeller rotation.
B EC D
A
Best mounting location:
A. undisturbed water ow
Avoid mounting:
B. behind planing strake
C. 1 m (3.3’) to port (left) of propeller
D. within 7.5 cm (3“) to starboard of propeller
E. close to trim tabs
Material #10 screw
Soft materials e.g. plywood Ø 3.7-4.0 mm (5/32”)
Hard materials e.g. berglass, acrylic, hardwoods Ø 4.1-4.7 mm (3/16”)
Aluminum Ø 4.2-4.5 mm (0.173”)
Recommended pilot holes for self-tapping screws:
Torque to 7 Nm
(15 lbf in).
Transom installation (down-looking)
Trolling motor shaft installation (forward-looking)
