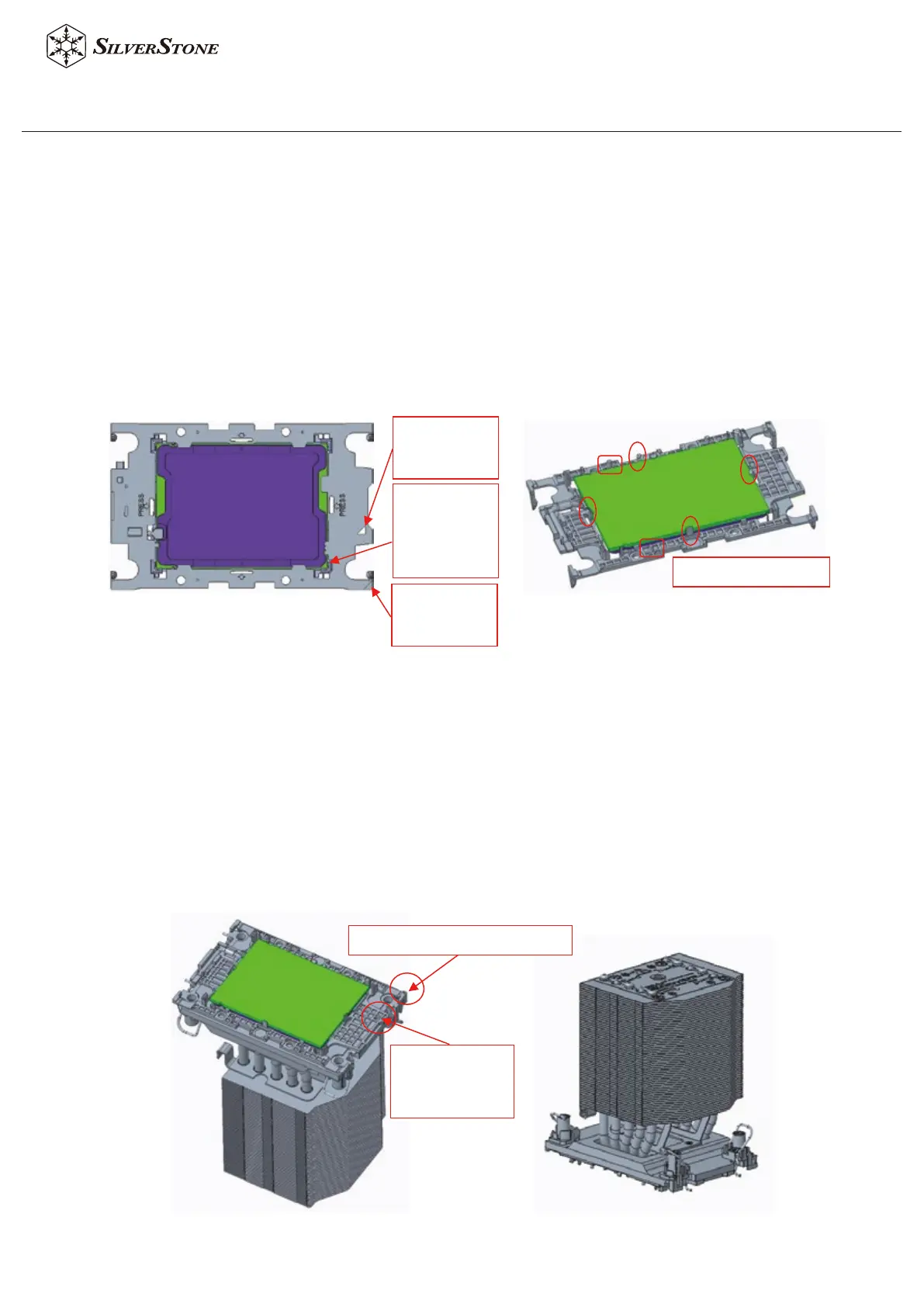

Figure 1 Figure 2
Figure 3 Figure 4
Pin-1 Golden
Triangle Marker
both on CPU
Top and Bo�om
Substrate
Hollow Triangle
Marker on the
Carrier
Carrier Latches and keying
Slots
Pin 1 solid triangle mark on carrier top
side
Pin 1 hollow
triangle mark on
carrier bo�om side
Solid Triangle
Marker on the
Carrier
XE02-4677 & XE04-4677 are active heatsinks designed for Intel LGA4677 socket
Please wear ESD gloves to protect the processor and CPU socket before installation process
Install the processor first with the plastic carrier. Align the golden color triangle mark with the hollow triangle mark on the
carrier, then align the key on the processor IHS cover and side, push the processor and confirm the 4 clips securely
locked (Figure 1 &2)
Note: the carrier latches must be fully engaged with the keying slots on the edges of the processor and the processor
must be securely seated on the carrier after insertion.
XE04-4677/XE02-4677
CPU Heatsink Assembly Guide
1.
2.
3.
Remove the heatsink from its packaging and remove the protection cover of Thermal Interface Material (TIM). The
required amount of TIM has been pre-applied on the bottom of the heatsink. Inspect the pre-applied TIM for any
damage before use.
Identify processor Pin 1 and onboard socket Pin 1 to decide the heatsink installation direction; for certain motherboards,
the Pin 1 location will be different with CPU1 and CPU2. (Figure 3 & 4)
Note: The complete assembly of processor, carrier, and heat sink is called Processor Heat Sink Loading Module
(PHLM) or Processor Heat Sink Module (PHM).
4.
5.
