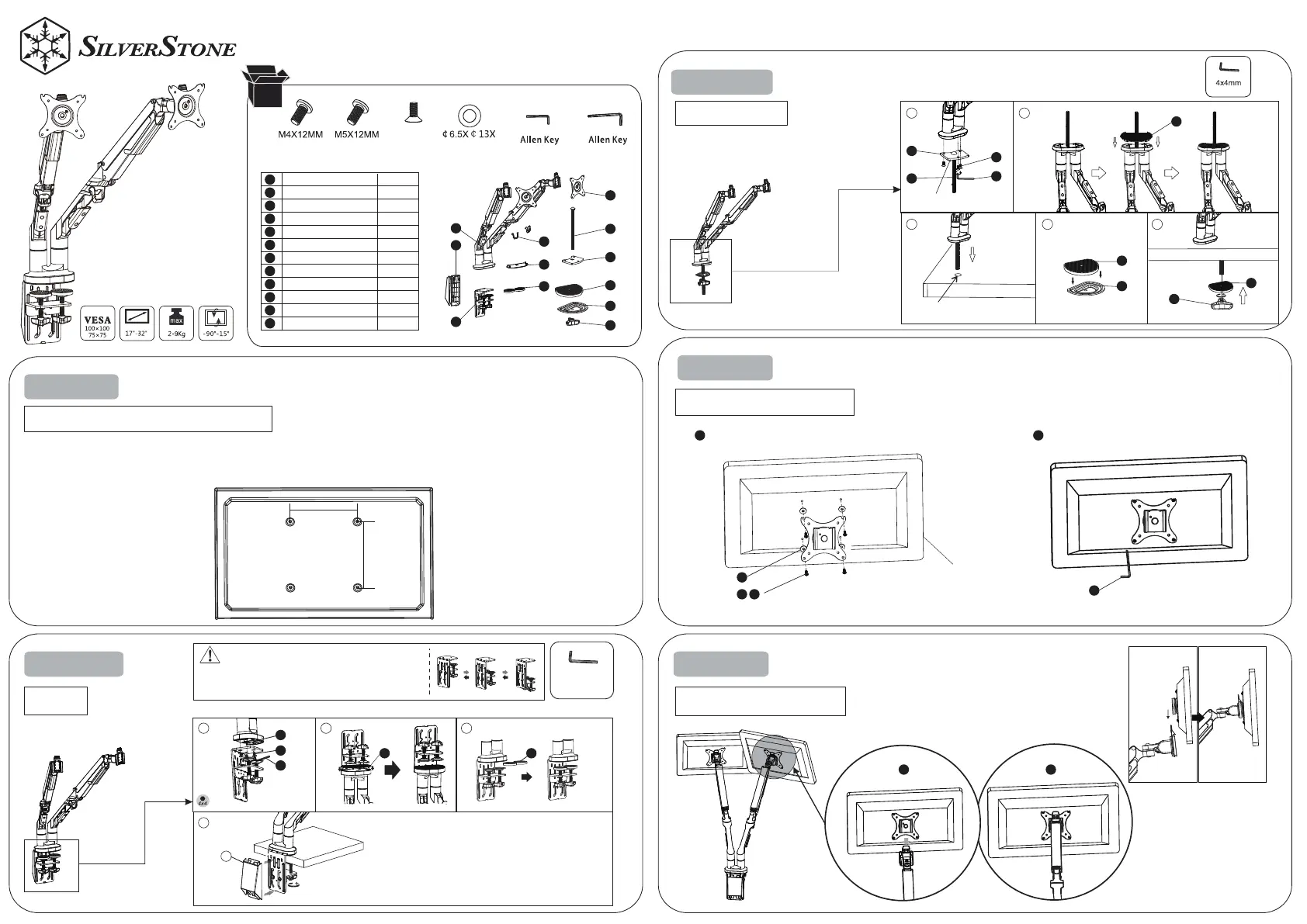

STEP 1
STEP 2-A
STEP 2-B
Option2:Grommet
Connect the plate and moniter
The Preparation Before Monitor Installation
75mm x 75mm,
100mm x 100mm
1. Make sure there are VESA holes 100x100mm or 75 x 75mm in the monitor. If not, the mount installed.
2. Remove the original fixed base of monitor. Be careful not to scratch the screen.
Install the monitor to the arm
Tighten
For desk thickness:20-100mm
4 x 4mm
Select proper available hole
according to thickness of desk
Option 1:
Notice:Keep the
counterbore side down
For desk thickness:25-100mm
Tighten
Available hole size:8.5-70mm
Use the allen key (F) to thighten the screw
Tighten
Monitor
Use washer if needed
Hang the monitor on the plate
from top to bottom and ensure
it be tightened
STEP 3
STEP 4
A(8
Support arm
Base Mounting Plate
Protection pad
Protection pad
Plastic cable cover
Perforated plate
Long screw
Protection pad
Knob nut
Pressure plate
Mount Plate
Clip
1PC
1PC
2PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
2PC
2PC
PCS)B(8PCS)C(3PCS)D(16PCS)
E(1PC)F(1PC)
4x4mm
5x5mm
M6x12
2
MM
ARM21
Gas Spring Swing
Dual MonitorMount
1
2
3
4
5
6
7
8
9
10
11
12
1
345
2
7
6
11
F
D
A
12
B
8
8
10
9
E
C
4
1
2
3
4
7
6
8
9
12
11
10
5
34
1
1
4
5
23
C
E
