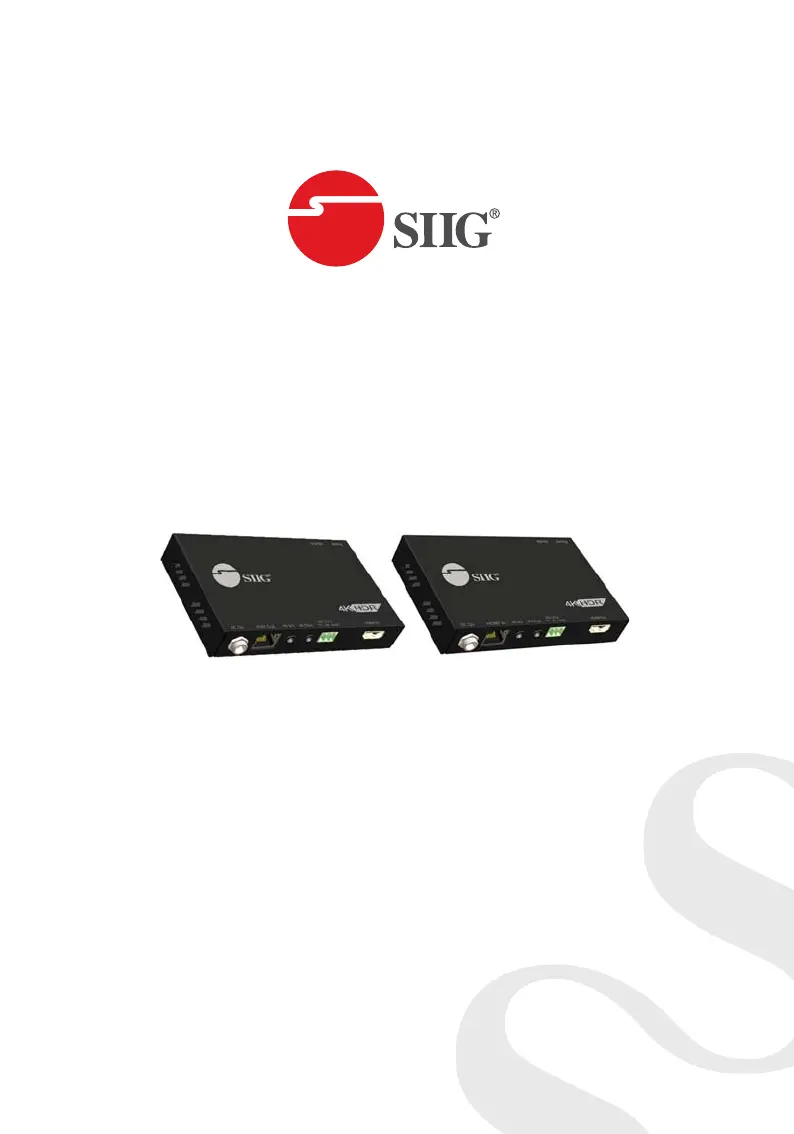

4K HDR HDMI 2.0 HDBaseT

Extender Over Single Cat5e/6

with RS-232 & IR - 100m

User Reference Guide

P/N: CE-H23311-S1

04-1122A

Introduction

The 4K HDR HDMI 2.0 HDBaseT Extender Over Single

Cat5e/6 with RS-232 & IR - 100m extends HDMI

transmission distance up to 330ft (100m) at 1080p or

230ft (70m) at 4K over an economical CAT5e/6 cable.

Features and Benefits

Supports video resolutions up to 4Kx2K @60Hz

(4:4:4 8bit) or HDR 4Kx2K @60Hz (4:2:0 10bit) to

deliver crystal clear images

7.1 Digital sound capabilities as well as

uncompressed LPCM and compressed DTS-HD

& Dolby True HD for a state-of-the-art

entertainment experience

PoC (Power over Cable) feature, only one power

adapter is required to power both the transmitter

and receiver units

Bi-directional IR sensors allow you to remotely

control the HDMI source device from the remote

display side or control the remote display from

the source device side

Supports 3D, CEC, HDMI 2.0 and HDCP 2.2

protocols. Bandwidth up to 18Gb/s

Premium metal housing with ventilation panels

improve heat dissipation for enhanced safety

and stability

Built-in phoenix connector for RS232 control

signal transmission or firmware update. Included

mounting ears for easy installation

Specifications

Package Contents

4K HDR HDMI 2.0 HDBaseT Extender (TX & RX)

Power adapter

IR blaster extension cable & IR receiver extension

cable

Mounting ears & Screw kit

Terminal block

User Reference Guide

Compliance HDMI 2.0a / HDCP 2.2

Resolution HDR 4Kx2K @60Hz (4:2:0 10bit) / 4Kx2K@60Hz (4:4:4 8bit)

Audio LPCM, DTS-HD and Dolby True HD (7.1CH)

Transmission Distance HDR 4Kx2K @60Hz: Up to 70m

1080p @60Hz: Up to 100m

IR Signal Frequency 20KHz to 60KHz

Connectors

TX:

1x Power jack

1x 8-pin RJ45

1x 3.5mm IR Receiver

1x 3.5mm IR Blaster

1x 3-pin phoenix connector (RS-232)

1x Dip switch

1x 19-pin HDMI Type-A, Female

3x LED indicator (Power/Link/Signal)

RX:

1x Power jack

1x 8-pin RJ45

1x 3.5mm IR Receiver

1x 3.5mm IR Blaster

1x 3-pin phoenix connector (RS-232)

1x Dip switch

1x 19-pin HDMI Type-A, Female

3x LED indicator (Power/Link/Signal)

Housing Material Metal

Power Adapter Input: AC 100-240V/ 50~60Hz

Output: DC 12V / 2A

Dimensions 4.7" x 2.9" x 0.8"

Weight 0.27Ibs

Operating Temperature 32 to 104 degrees F

Storage Temperature -4 to 140 degrees F

Product specificaties

Merk:	SIIG
Categorie:	AV extender
Model:	CE-H23311-S1
Kleur van het product:	Zwart
Soort:	AV-zender & ontvanger
Type verpakking:	Doos
Connectiviteitstechnologie:	Bedraad
Ethernet LAN:	Ja
Ondersteunde video-modi:	480p, 720p, 1080i, 1080p, 2160p
Maximum resolutie:	3840 x 2160 Pixels
Meegeleverde kabels:	AC
Snelstartgids:	Ja
Inclusief AC-adapter:	Ja
Vermogensverbruik (max):	10 W
Certificering:	FCC, CE, TAA
HDCP:	Ja
Aansluiting voor netstroomadapter:	Ja
HDMI versie:	2.0
Remote (IR) ingang:	1
Duurzaamheidscertificaten:	RoHS
Temperatuur bij opslag:	-10 - 70 °C
HDBaseT-gecertificeerd:	Ja
Output current:	2 A
Remote (IR) uitgang:	1
HDMI in:	1
RJ-45 uitgang ports:	1
IR-doorvoer:	Ja
Bandbreedte:	18 Gbit/s
Aantal HDMI-uitgangen:	1
Receiver afmetingen (B x D x H):	71.12 x 119.38 x 20.32 mm
RJ-45 invoer ports:	1
Operating voltage:	12 V
Maximaal bereik:	100 m
AC-ingangsspanning:	100 - 240 V
AC-ingangsfrequentie:	50 - 60 Hz
Bedrijfstemperatuur (T-T):	0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V):	5 - 90 procent
Receiver gewicht:	145.14 g
Transmitter afmetingen (WxDxH):	71.12 x 119.38 x 20.32 mm
Transmitter gewicht:	117.93 g
HDCP- & EDID-omzeiling:	Ja
Electrostatic Discharge (ESD) bescherming:	15 kV
