Instructions

April,2001

Supersedes Issue of

July,2000

Siemens Energy & Automation,Inc.1000 McKee Street Batavia,Illinois 60510

52-HPA8

Push Button & Accessories

Class 52

Cat No 52PA8,52 PB9,52ABT,

52AABA,52ABW,52PX

When installed as indicated,these

operators are suitable foruse in Type

1,3,3R,4,12,or13 enclosures.

Black Max (52PX) suitable forType

4X enclosures.

ForEngineering Reference Only - Rev.K

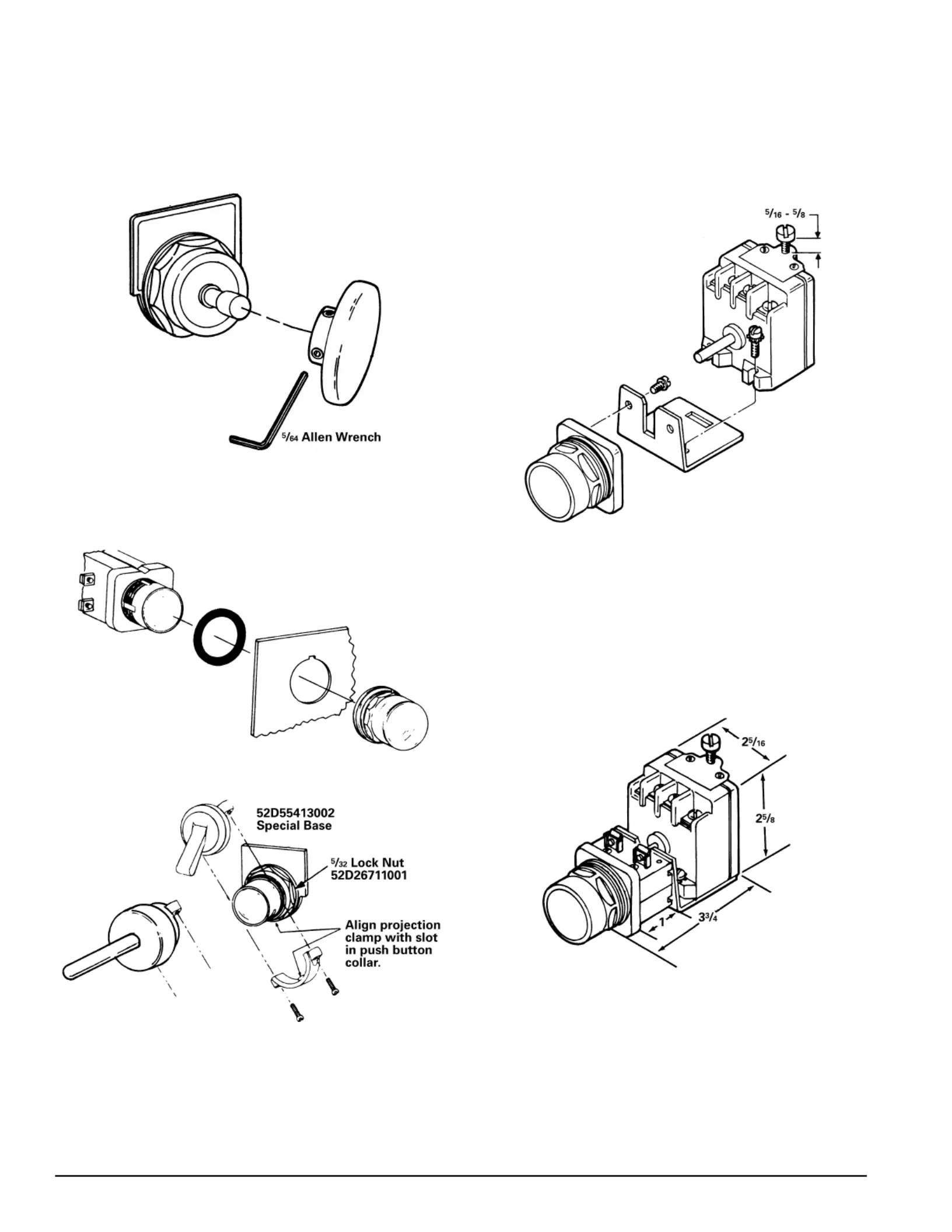

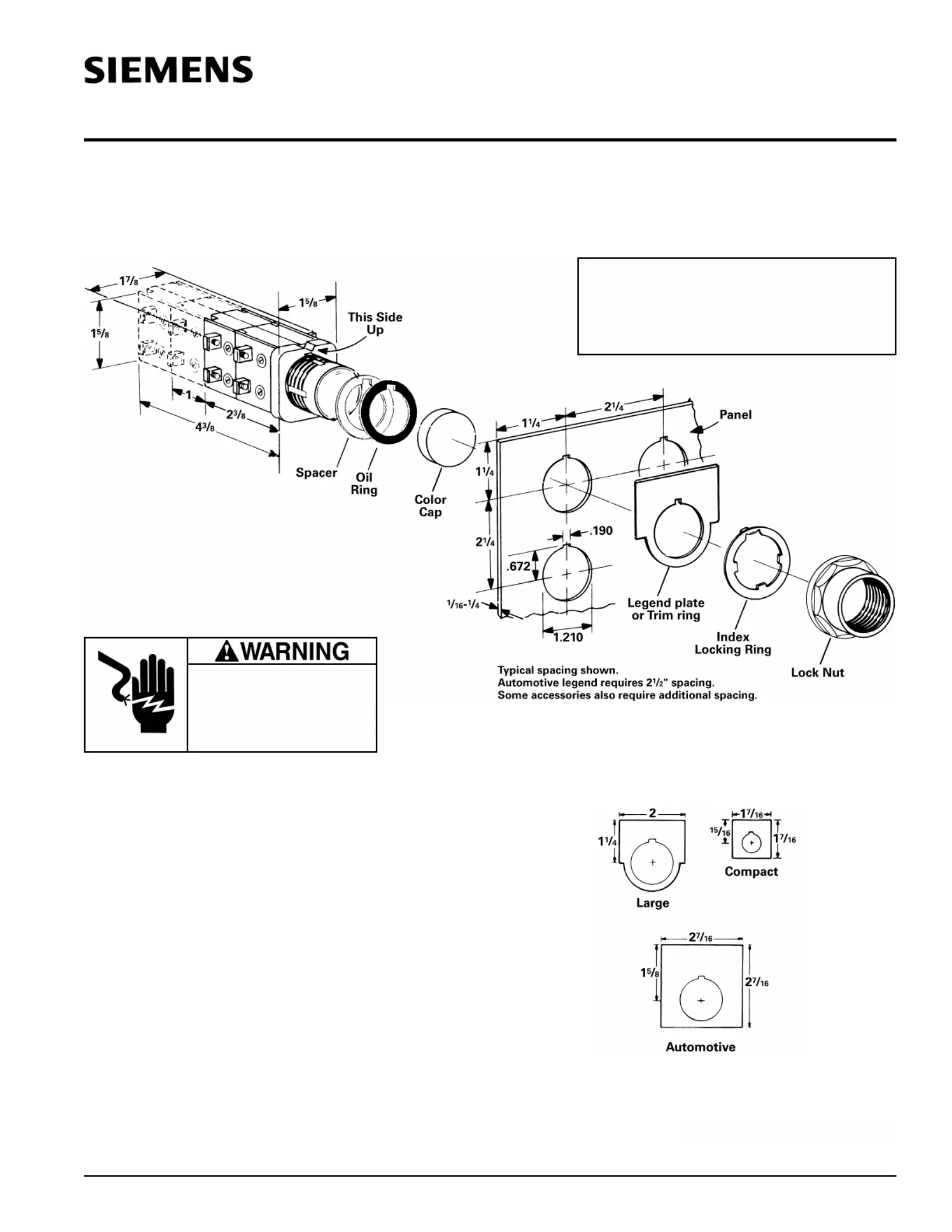

INSTALLATION

Units are assembled as shown.

1.*Assemble spacer.

2.Assemble oil ring.

3.Mount unit on panel as shown in illustration.

4.*Position trim ring orlegend plate (trim ring is discarded

when legend plate is used).

5.Position index lockingring on unit as shown in illustration.

6.Assemble and tighten lock nut.

7.Position and press on colorcap.

*Spacerand trim ring not used on BlackMax 4X devices.

Notes forBlackMax 4X devices:

*The trim ring is not needed orsupplied.

*Only use the index locking ring when using a metal name

plate.Discard when not using a nameplate orwhen using a

plastic name plate.

*Use the locknut wrench,52MAWB.

LEGENDPLATES

Hazardous voltage.

Can cause death,serious personal

injury,orproperty damage.

To avoid electrical shock,turn off

electrical powerto controls before

performing installation maintenance.
