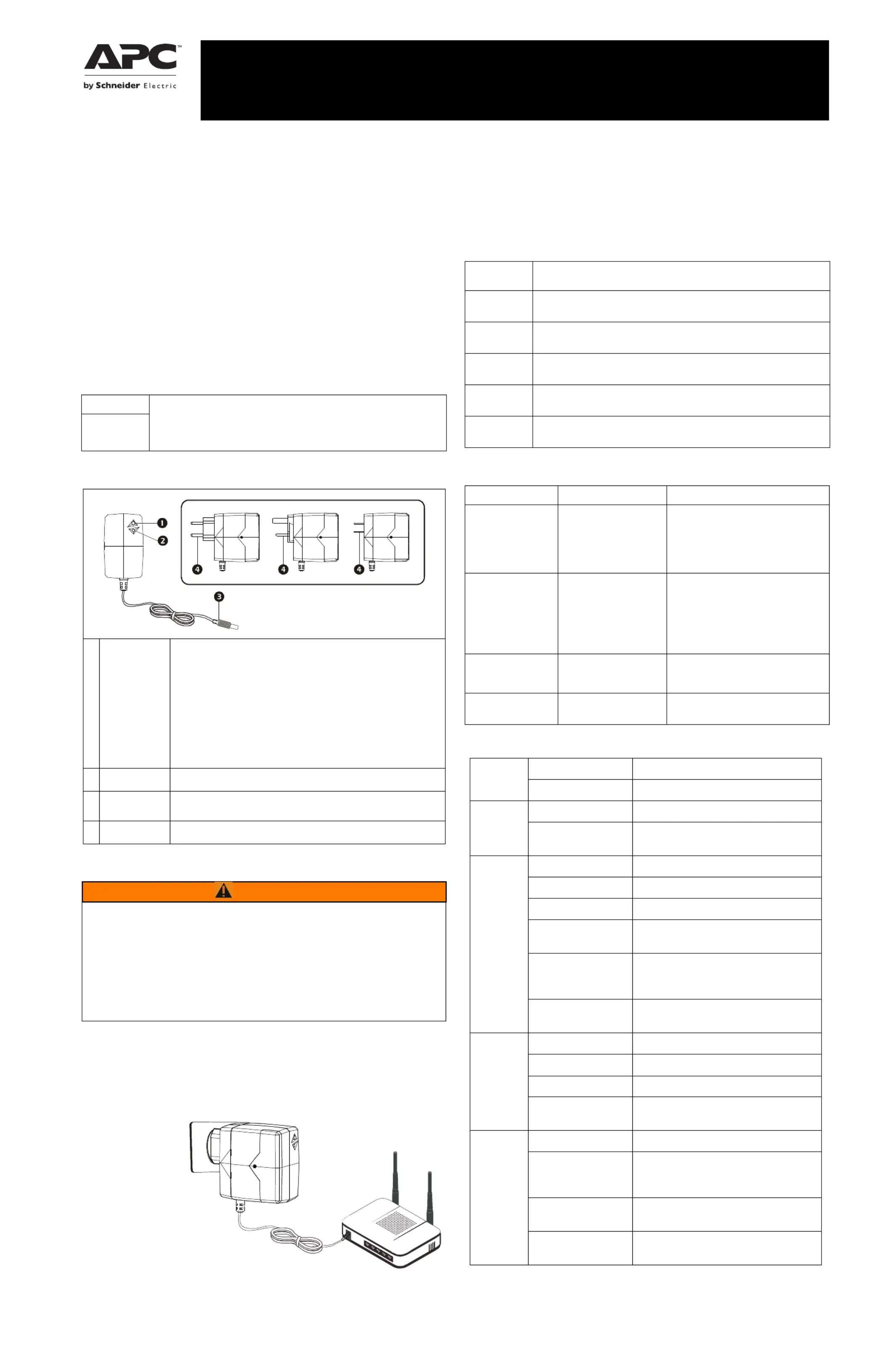

© 2018 APC by Schneider Electric. APC, the APC logo, and Back-UPS are owned by Schneider Electric Industries S.A.S., or their affiliated

companies. All other trademarks are property of their respective owners.

EN 990-91143B

08/2018

Safety and General Information

Inspect the package contents upon receipt. Notify the carrier and dealer if there is any

damage.

Read the Safety Guide supplied with this unit before installing the UPS.

• Adhere to all national and local electrical codes.

• Changes and modifications to this unit not expressly approved by APC could

void the warranty.

• This UPS is for indoor use only.

• Do not operate this UPS in direct sunlight, in contact with fluids, or where

there is excessive dust or high humidity.

• Do not operate the UPS near open windows or doors.

• Allow adequate space for proper ventilation.

• Always practice safe lifting techniques adequate for the weight of the

equipment.

• The battery typically lasts for two to three years. Environmental factors

impact battery life. Elevated ambient temperatures, poor quality AC power,

and frequent short duration discharges will shorten battery life.

Package Contents

Product Features

Installation

Note: The battery is not user replaceable. Contact APC by Schneider Electric

Worldwide Customer Support if there are defects in the product and the product is

within warranty.

• Ensure that the capacity of the electric device is 12 V with 1 A or less, and the

DC connector is (OD/ID) 5.5*2.1 mm.

• Choose the appropriate transformer tip to support the electric device.

Turn On the

Back-UPS

Connect the

Back-UPS to

utility power at

the wall outlet.

The Back-UPS

will turn on

automatically. The

indicator LED

will illuminate

green.

Note: The indicator LED will flash green if the Back-UPS is not completely charged.

The Back-UPS will auto charge the battery.

Connect the Loads

Plug in the load to the DC output connector. The Back-UPS will help to protect the

connected load.

Note: The Back-UPS is designed to provide backup power to all kinds of

DC-powered equipment such as routers, modems, set-top box, VOIP phone systems,

surveillance system, alarm system, access control system and other critical telecom

equipment or DC devices.

Status Indicators

Troubleshooting

Specifications

1 Back-UPS3 transformer tips:

•F5.5*2.1/M3.5*1.35

•F5.5*2.1/M4.8*1.7

•F5.5*2.1/M5.5*2.5

1 user manual



POWERONOFF/

button

•UPS will be automatically turn on when connected to utility

power under normal utility condition.

•Alarm mode: Press the

POWEROFFON/ button to restart the

UPS.

•Battery mode:

Power off: Press and hold the

POWERONOFF/ button for

5seconds to shut down the UPS, to avoid battery drain.

Power on: Press and hold the

POWERONOFF/ button for 3

seconds to turn on the UPS, if the utility is not available and

battery is fully charged.



Indicator LED

Indicator LED will illuminate/flash to indicate the UPS status.



DC output

connector

Connect the equipment to the DC output connector.



AC input

Connect the Back-UPS to utility power.

WARNING

RISK OF CHEMICAL HAZARD AND EXCESSIVE HEAT

• Replace the battery at least every 5 years.

• Replace the battery immediately when the UPS battery fault is

detected at the end of its service life. Power off the UPS, unplug it from

the AC input.

• Replace battery at the end of its service life.

Failure to follow these instructions can result in death or serious

injury.

CP12010LI-GRCP12010LI-UKCP12010LI

bu485a

bu484a

Visual

indicatorCondition

Illuminates

green

The fully charged Back-UPS is supplying utility power to the connected

equipment.

Flashes greenThe Back-UPS is supplying battery power to the connected equipment.

However, the battery is being charged.

Quick flashes

green

The utility power is not available. The Back-UPS is supplying battery

power to the connected equipment. The battery is discharging.

Illuminates

red

The Back-UPS has detected an internal fault. Contact APC by Schneider

Electric.

Flashes redThe Back-UPS has detected that the battery is not connected, while the

utility power is available to the Back-UPS.

ProblemPossible CauseCorrective Action

The indicator LED

illuminates red

UPS has detected

overload or short circuit

and has transfered to

alarm mode.

Remove DC output connector from the

DC devices or connected loads.

Press and hold the

POWERON/ OFF

button for one second to restart the

UPS.

The indicator LED

flashes red

UPS has detected that

battery is not connected

or battery voltage is too

low or battery is

defective.

Remove the insulation film on the

battery if it is not removed.

If indicator LED flashes red even after

the insulation film is removed, contact

APC by Schneider Electric to replace

the battery.

Battery backup time

is shorter than

nominal value.

The charge of the battery

is low.

Contact APC by Schneider Electric to

replace the battery.

No DC output and

indicator LED is off.

The Back-UPS has

detected an internal fault.

Contact APC by Schneider Electric.

AC InputNominal Voltage220 ~ 240 VAC

Frequency50 or 60 Hz

DC Output

(On-Line

mode)

Voltage12 VDC ± 5%

Maximum power

(On-Line mode)

12 W (1 A) with battery fully charged

DC output

(On-Battery

mode)

Output voltage11.4~12.6 V

Rated output current1 A

Discharging efficiency>80% (Rated R load, battery full charged)

Backup time

(Real routers)

120 minutes @ 12 V / 1 A

Backup time

(Constant load)

•120 minutes @ 3 W

•90 minutes @ 5 W

•60 minutes @ 7 W

Transfer Time0 ms (Output voltage regulate 10 V)

10 ms (Output voltage regulate 11.4 V)

BatteryType Lithium-Ion Battery

Nominal Voltage3.6 VDC

Capacity2600 mAh

Typical recharge time 4 hours typical for 90% capacity

(with no load)

PhysicalNet weight200 g

Dimensions in mm

(D x W x H)

CP12010LI: 69 x 46 x 76

CP12010LI-GR: 88 x 46 x 76

CP12010LI-UK: 78 x 48 x 76

Input plugMounted on the housing

(NEMA/Schuko/UK)

Output cable1 m length (DC Male Jack, OD 5.5mm,

ID 2.1mm)

Manual Back-UPS™

CP12010LI/CP12010LI-UK/CP12010LI-GR
