FLIP PRO MAX- DUAL USB-C CHARGER - (SC-USB-F3)

04-04-2023 (Issue 1)

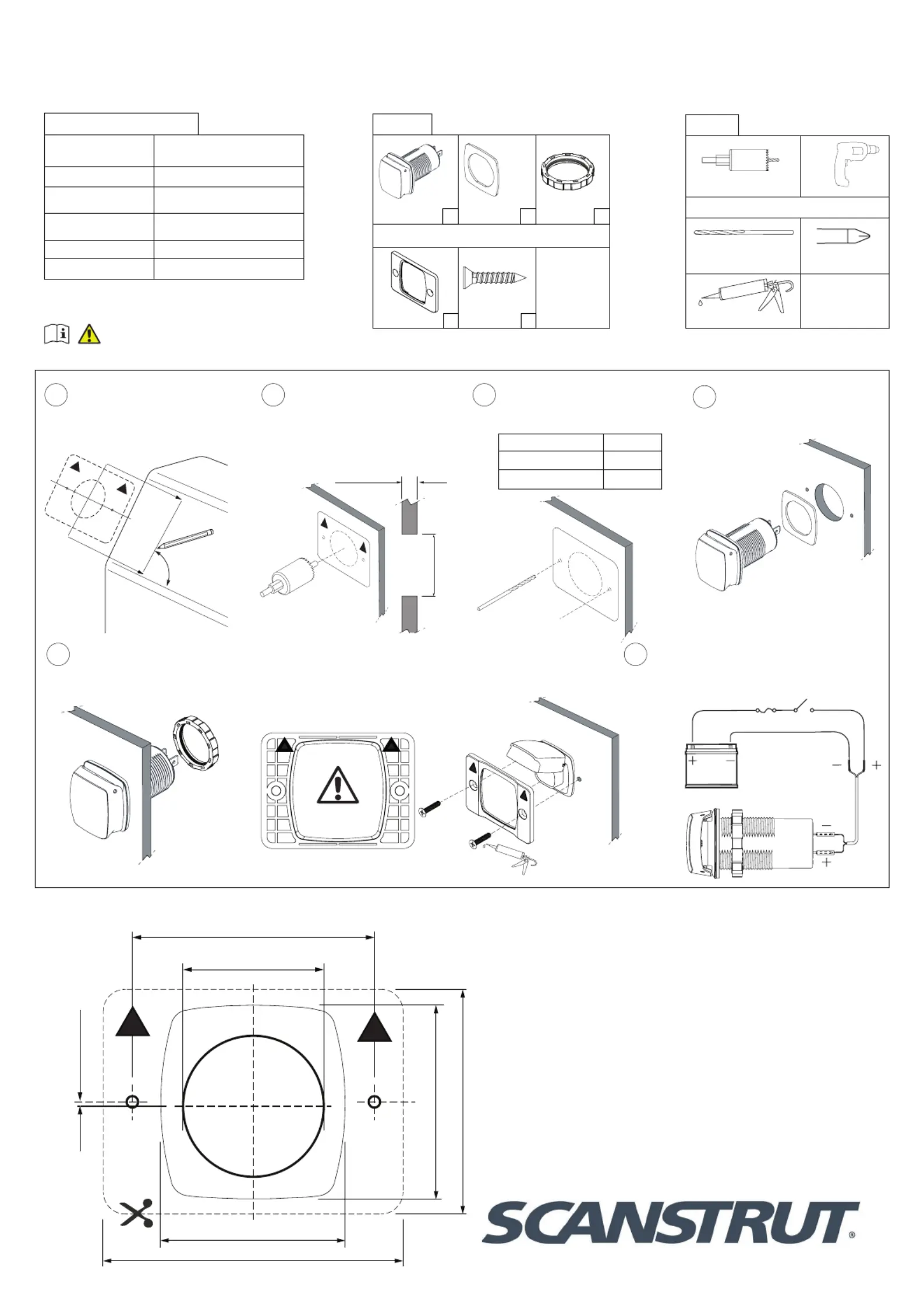

Installation Instructions

For further installation

and warranty information

please visit:

www.scanstrut.com

USA

+1 860 308 1416

[email protected]

UK & International

+44 (0)1392531280

[email protected]

12V SocketGasketLock Ring

Front install only

Front Fit Bezel

No.6x20mm

Screws

Parts list:

x1x1

x1

x4

x1

55.0mm

(2.17”)

ø32.0mm

1mm (6/64”)

(ø1.26 ”)

BEZEL 68.1mm

(2.68”)

BEZEL 51.0mm

(2.01”)

42.0mm

(1.65”)

44.1mm

(1.73”)

TOP

Drilling template:

WARNING CHECK SCALE 1:1

Feed Barrel through the gasket and

hole.

Use drilling template to drill ø32mm

(1 1/4”) hole.

FRONT INSTALL ONLY

Draw a centre line to align template,

ensure line is square on surface and

correct orientation.

FRONT INSTALL ONLY

Drill 2 pilot holes for front t bezel.

Ø32mm

(1.25”)

3mm (0.11”) Min

25mm (1”) Max

90°

TOP

123

4

Pilot Hole Size

Material No. 6 Screw

Soft Material e.g Plywood2.5mm (3/32”)

Hard Material e.g Fiberglass3mm (1/8”)

Connect to 12/24V supply, ensuring a waterproof

connection. Fuse and select cable diameter according to

input voltage and current for your specic installation.

TOP

6 5

FRONT INSTALL ONLY

Apply silicone seal on xings and pilot holes. Place the

front t bezel over charger and x bezel in place. Make

sure the orientation bezel is correct.

REAR INSTALL ONLY

Tighten lock ring onto product until secure.

32mm (1 1/4”) Hole sawDrill

Front install only

Drill bit 2.5mm (3/32”) or

3mm (1/8”)Pozi Screwdriver

Silicone

Tool list:

Technical information:

For latest tech info visit:

www.scanstrut.com/USB

READ IMPORTANT SAFETY INFORMATION BEFORE

INSTALLING.

Input voltage

12/24V System

10-32V DC

Input current Max6 A

Output Type C

(12V System)

5V3A, 9V3A, 12V3A MAX ⎓⎓⎓

Output Type C

(24V System)

5V3A, 9V3A, 12V3A, 15V3A, ⎓⎓⎓⎓

20V3A MAX⎓

Standby draw<0.1W

Waterproof ratingIPX4 Front
