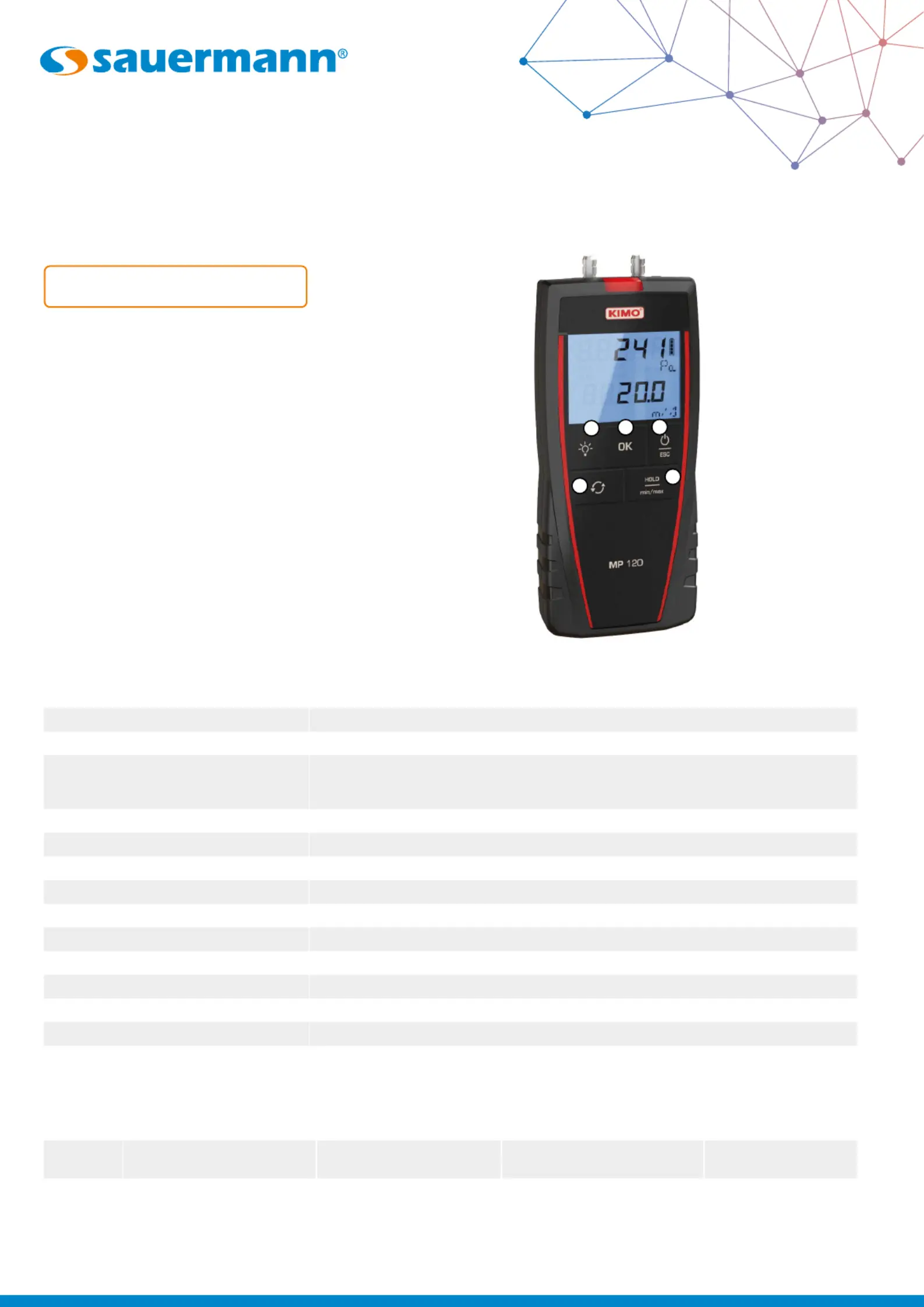

Manometer
USER MANUAL
Description of the device
1. OK key
2. Backlight key
3. Select key
4. On/Off/Esc key
5. Hold/min/max key
MP 120
Technical specications
General features
*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.
Measuring element Piezoresistive sensor
Tolerated overpressure 250 mbar
Connector Ø 6.2 mm threaded connectors made of nickelled brass
Display
4 lines, LCD technology. Dimensions 50 x 36 mm.
2 lines of 5 digits with 7 segments (value)
2 lines of 5 digits with 16 segments (unit)
Housing ABS, protection IP54
Keypad 5 keys
European directives 2014/30/EU EMC; 2014/35/EU Low Voltage; 2011/65/EU RoHS II; 2012/19/EU WEEE
Power supply 4 batteries AAA LR03 1.5 V
Battery life 180 hours
Ambience Neutral gas
Conditions of use (°C,%RH, m) From 0 to +50 °C. In non condensing conditions. From 0 to 2000 m.
Storage temperature From -20 to +80 °C
Auto shut-off Adjustable from 0 to 120 minutes
Weight 220 g
Parameters Measuring units Accuracy Measuring range Resolution*
Pressure Pa, mmH
2
O, inWg, daPa, m/s, fpm ±0.5% of reading ±2 Pa From -1000 to +1000 Pa 1 Pa
Air velocity m/s, fpm, km/h
From 2 to 5 m/s: ±0.7 m/s
From 5 to 40 m/s: ±0.5% of reading
±0.3 m/s
From 0 to 40 m/s 0.1 m/s
Once the measurement is frozen:
• Press on "Hold/min/max".
The device displays the maximum value of pressure measured during the last questioning at the top of the screen and
the minimum value of pressure measured since the last questioning at the bottom of the screen.
• Press again on "Hold/min/max".
The device displays the maximum value of velocity measured since the last questioning at the top of the screen and the
minimum value of velocity since the last questioning at the bottom of the screen.
• Press on "On/Off/Esc" to returns to the measurement display.
Display the minimum and the maximum
• Turn on the device by pressing on "On/Off/Esc".
The device displays its name "MP120", then performs an autozero.
• Connect the pressure tubes or a differential pressure element to the device (Pitot tube, Debimo blades,..).
The device displays the pressure or/and the measured velocity.
Perform a measurement
During a measurement:
• Press on "Hold/min/max".
"Hold" appears on the screen and the measurements are frozen.
• Press on "On/Off/Esc" to exit the hold function
The device returns to the measurement display.
Freeze the measurement

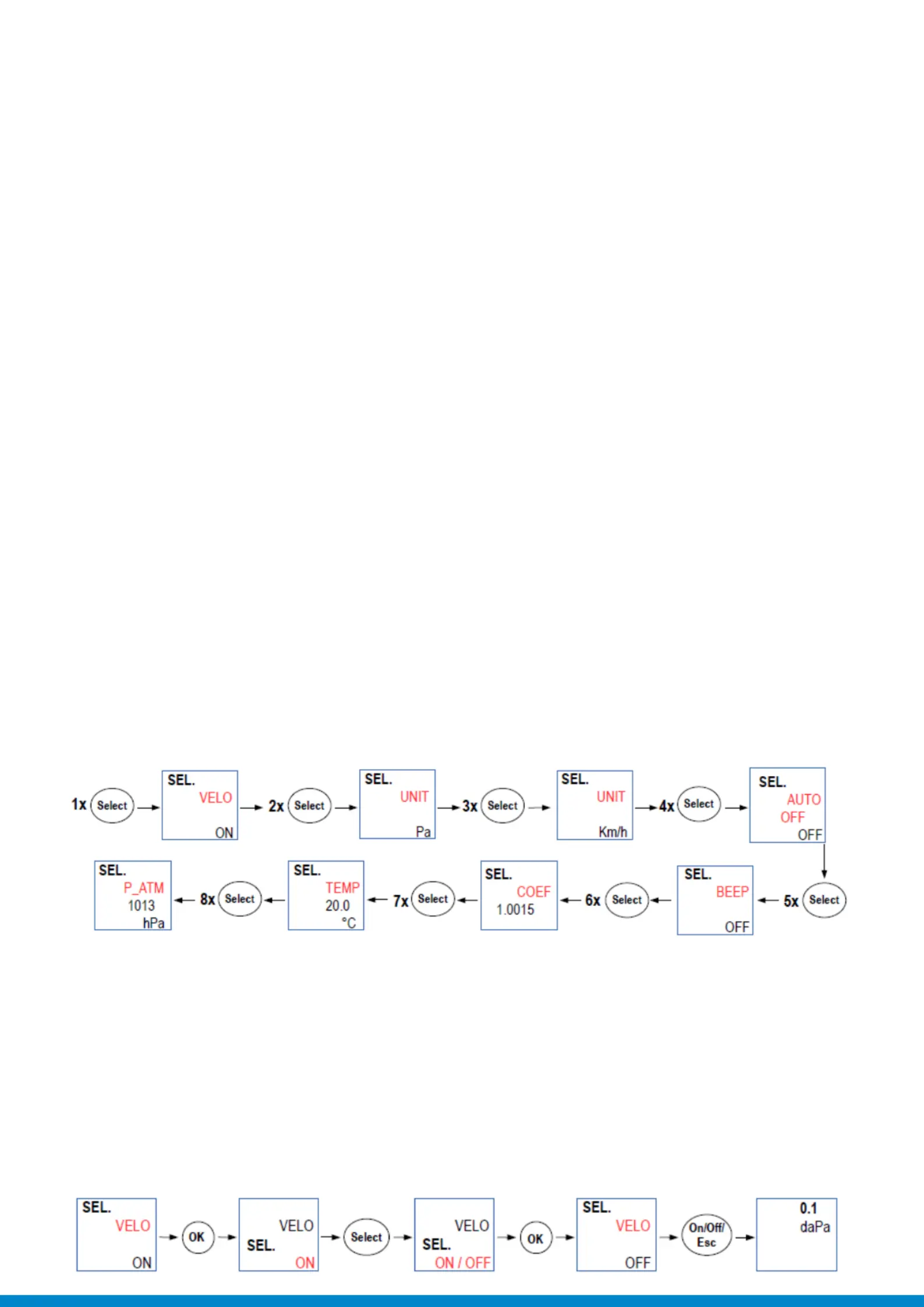

Adjust the device
Device drop-down menu

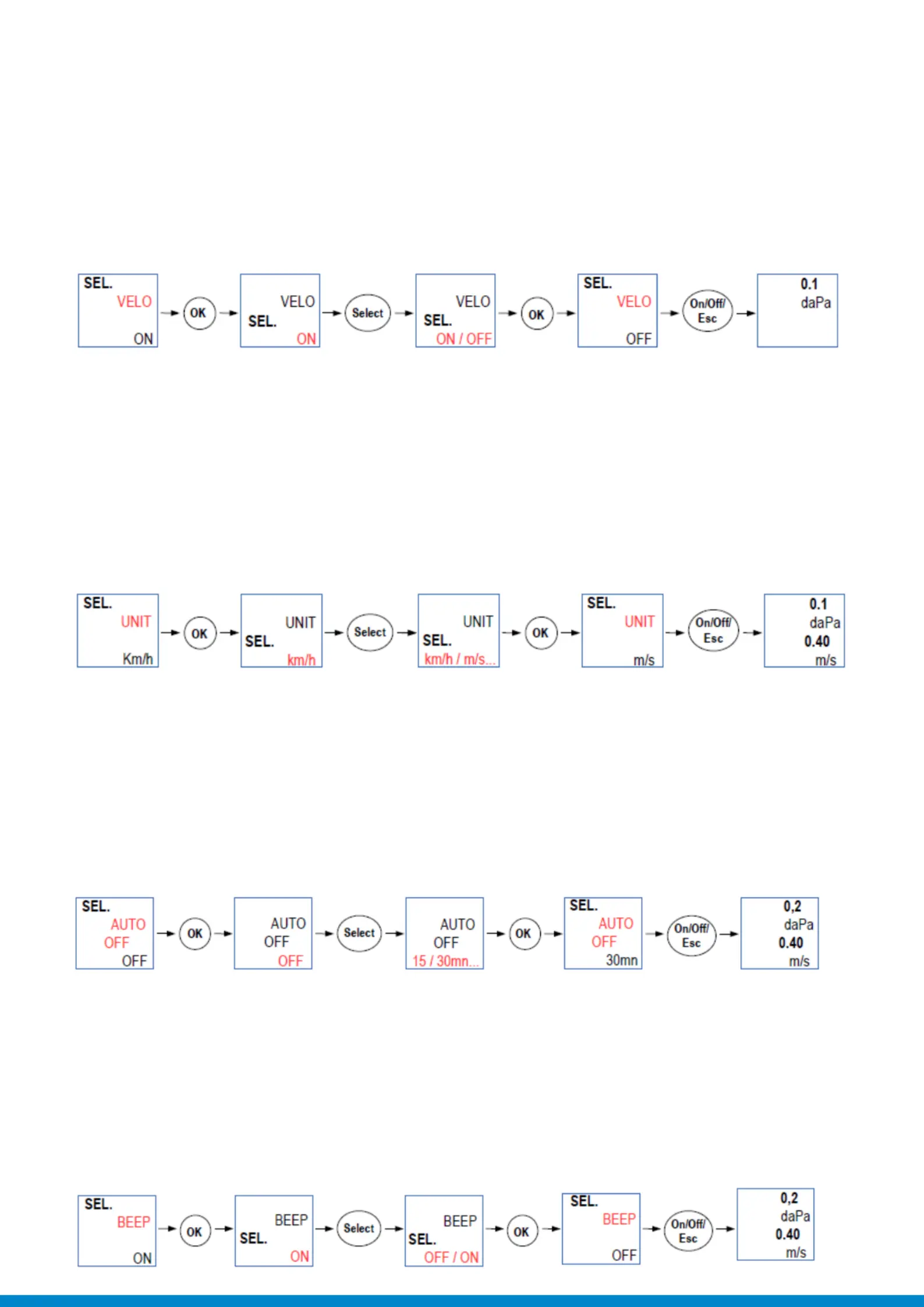

Measure and display the velocity
It’s possible to measure and display the velocity on a MP120 manometer. A differential pressure element (Pitot tube,
debimo blades,...) must be necessarily connected to the manometer.
The device is on and displays the pressure measurement.
• Press on "Select".
"VELO" blinks on screen.
• Press on "OK".
"OFF" blinks on screen.
• Press on "Select" to select "ON" then press on "OK" to validate.
"VELO" blinks on screen.
• Press on "On/Off/Esc" to return to the measurements display.
The device is on and displays the pressure and velocity measurements.
• Disconnect the pressure tubes.
• Press on "OK".
"Autozero" displays on the screen, the device performs an autozero, then returns to the measurement display.
Perform an autozero
Select the measuring unit in pressure
The device is on and displays the measurement.
• Press on "Select" until "UNIT" appears on screen with the pressure unit indicated at the bottom of the screen.
• Press on "OK".
The unit currently used blinks on screen.
• Press on "Select" until the required unit appears: Pa, mmh
2
O, inWg or daPa.
• Press on "OK" to validate the unit selection.
"UNIT" blinks on screen.
• Press on "On/Off/Esc" to return to the measurement display.
Select the measuring unit in velocity
The device is on and displays the measurement.
• Press on"Select" until "UNIT" appears on screen with the velocity unit indicated at the bottom of the screen.
• Press on "OK".
The unit currently used blinks on screen.
• Press on "Select" until the required unit appears: fpm, km/h, mph or m/s.
• Press on "OK" to validate the unit selection.
"UNIT" blinks on screen
• Press on "On/Off/Esc" to return to the measurement display.
Adjust the auto shut-off
The device is on and displays the measurement.
• Press on "Select" until "AUTO OFF" blinks on screen.
• Press on "OK".
The time before device auto shut-off blinks at the bottom of the screen.
• Press on "Select" until the required time before auto shut-off appears: 15, 30, 45, 60, 75, 90, 105, 120 minutes or off.
• Press on "OK" to validate.
"AUTO OFF" blinks on screen.
• Press on "On/Off/Esc" to return to the measurement display.
Activate or deactivate the keys beep
The device is on and displays the measurement.
• Press on "Select" until "BEEP" blinks on screen.
• Press on "OK".
"OFF" or "ON" blinks on screen.
• Press on "Select" to activate the keys beep "ON" or deactivate it "OFF".
• Press on "OK" to validate.
"BEEP" blinks on screen.
• Press on "On/Off/Esc" to return to the measurement display.
