This designation may be in the form of a statement

pertaining to the ballast itself, or may be combinedwith

the marking for the lamps with which the ballastis intended

to be used, for example F40T 12/IS, for more information

contact the LED luminaire retrot kit manufacturer. Do not

make or alter any open holes in an enclosure of wiring

or electrical components during kit installation. Installers

should not disconnect the existing wire from lampholder

terminals to make new connections at lampholder

terminals. Instead installers should cut existing lampholder

leads away from the lampholder and make new electrical

connections to lampholder lead wires by employing

applicable connectors.

• WARNING: Luminaire wiring and electrical parts may be

damages when installing retrot kit hardware. Check for

enclosed wiring and components.

• WARNING: Check the existing wiring for damage before

installing upgrade kit. Do not install if existing wires are

damaged. This retrot kit is accepted as a component of

a luminaire where the suitability of the combination shall

be determined by authorities having jurisdiction.

Type B Lamp – this LED tube is intended to replace

uorescent tube lamps with ANSI designation.

• This lamp is dimmable in Type A (Ballast Dependent)

mode only. Dimmable ONLY with compatible dimmable

ballasts. Visit www.satco.com for compatibility list.

• Suitable for damp locations.

• Not for emergency lighting.

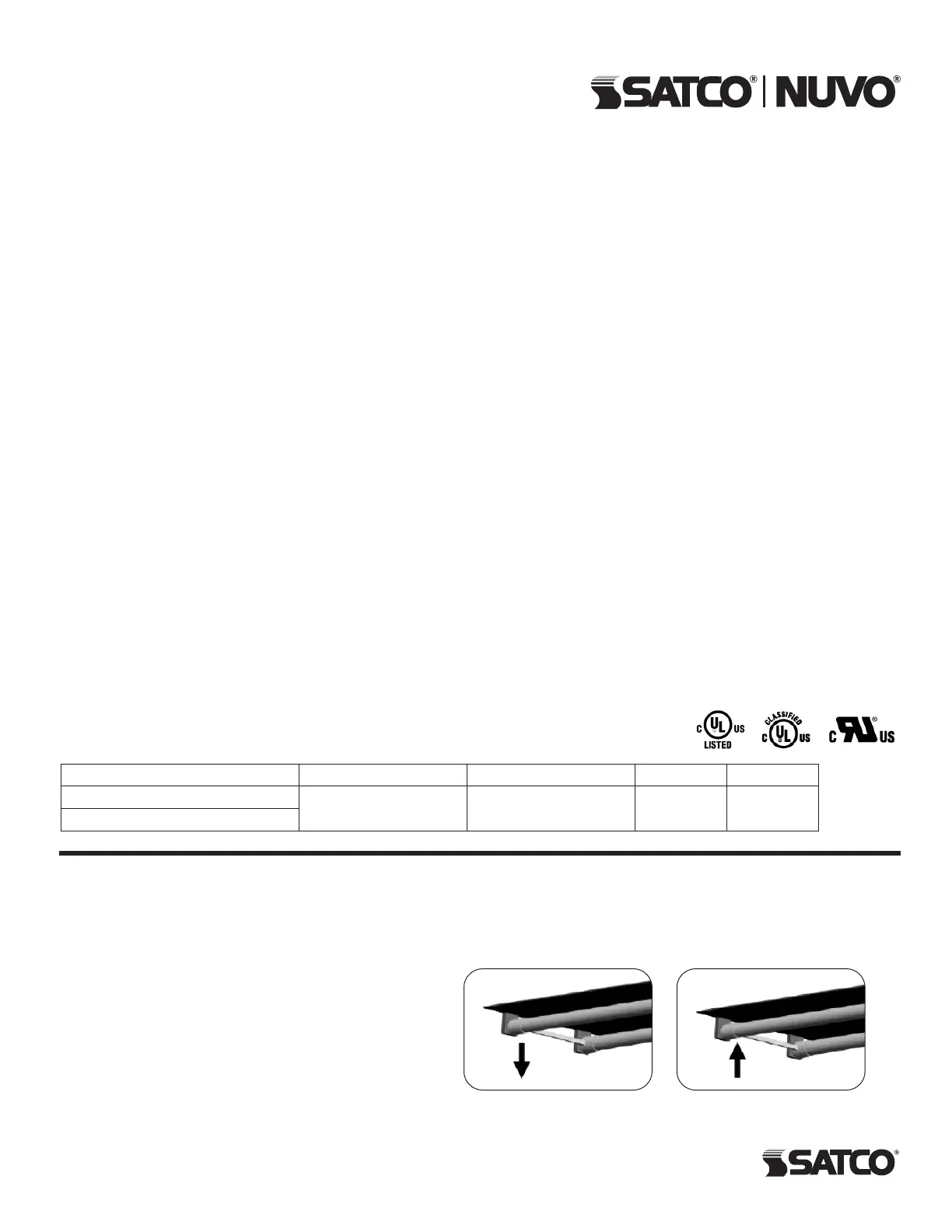

LED T8 DUAL MODE

U-BEND LAMPS

Models: S18410, S18411

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

Item Number-DescriptionOverall Dimensions (mm)Operating TemperatureCCTVolts

S18410-13T8U6/LED/CCT/DUAL

92 x 562.1 x 572.3–20ºC ~ 45ºC

30K, 35K,

40K, 50K

120V–277V

S18411-13T8/U1/LED/CCT/DUAL

WARNING

• DANGER: Risk of shock-disconnect power before

installation.

• WARNING: Risk of re or electric shock. The

electrical rating of these products are 120-277Vac, the

installer must determine whether they have 120-277Vac

at the luminaire before installation.

• WARNING: Risk of re or electric shock. LED Retrot

Kit installation requires knowledge of luminaire electrical

systems. If not qualied, do not attempt installation.

Contact a qualied electrician.

• WARNING: Product must be installed in accordance with

the national electrical code or your local electrical code.

If you are not familiar with these codes and requirements,

contact a qualied electrician.

• WARNING: Install this kit only in luminaries that have

the construction features and dimensions shown in the

photographs and/or drawing and where the input rating

of the retrot kit does not exceed the input rating of the

luminaire.

• WARNING: To prevent wiring damage or abrasion, do

not expose wiring to edges of sheet metal or other sharp

objects.

• WARNING: To avoid potential re or shock hazard, do

not use this retrot kit in luminaries employing shunted

bi-pin lampholders. NOTE: Shunted lamp holders are

found only in uorescent luminaries with instant-start

ballasts. Instant-start ballasts can be identied by the

words “Instant Start” or “I.S.” marked on theballast.

Satco Products, Inc.

INSTALLATION: DIRECT REPLACEMENT/ PLUG & PLAY (TYPE A)

NOTE: This product my not be compatible with all ballasts. For more information about ballast compatibility

visit www.Satco.com.

STEP 1:Turn OFF power before installation.

STEP 2: Remove xture diffuser (if present) and

existing uorescent lamps from the xture.

STEP 3: Install the LED U-bend.

STEP 4: Attach the diffuser and turn ON power.

Installation is complete.
