WARNING: Risk of Fire or Electric Shock

• Make sure power is OFF before installation or any

maintenance of the xture.

• To avoid damage, falling, electric shock or re, do not modify

the xture or replace accessories without conrming with the

supplier rst.

• Only authorized, qualied personnel should install this xture

and should follow the owner’s manual.

• Do not dismantle the xture without the supplier’s authorization.

• Do not touch the power supply when the xture is operating.

• For use in environments where an accumulation of

non-conductive dust on the xture may be expected.

• Operating Temperature: –5˚F to +105˚F (-20˚ C to +40˚C).

• Suitable for indoor damp locations.

• Suitable for insulated ceiling.

• Type IC Rated for direct contact with insulation.

IMPORTANT:This product must be installed in accordance

with the applicable installation code by a person familiar with the

construction and operation of the product and the hazards involved.

The wiring compartment or junction box has a volume of 225 cubic

centimeters, which is suitable for a maximum of 6-12AWG 90ºC

through branch circuit conductors.

The cable entry is calculated using Two 12 AWG Branch circuit

conductors entering, Two 12 AWG Branch Circuit conductors exiting,

and Two 12 AWG insulated Grounding connectors. This enclosure

complies with the National Electric Code.

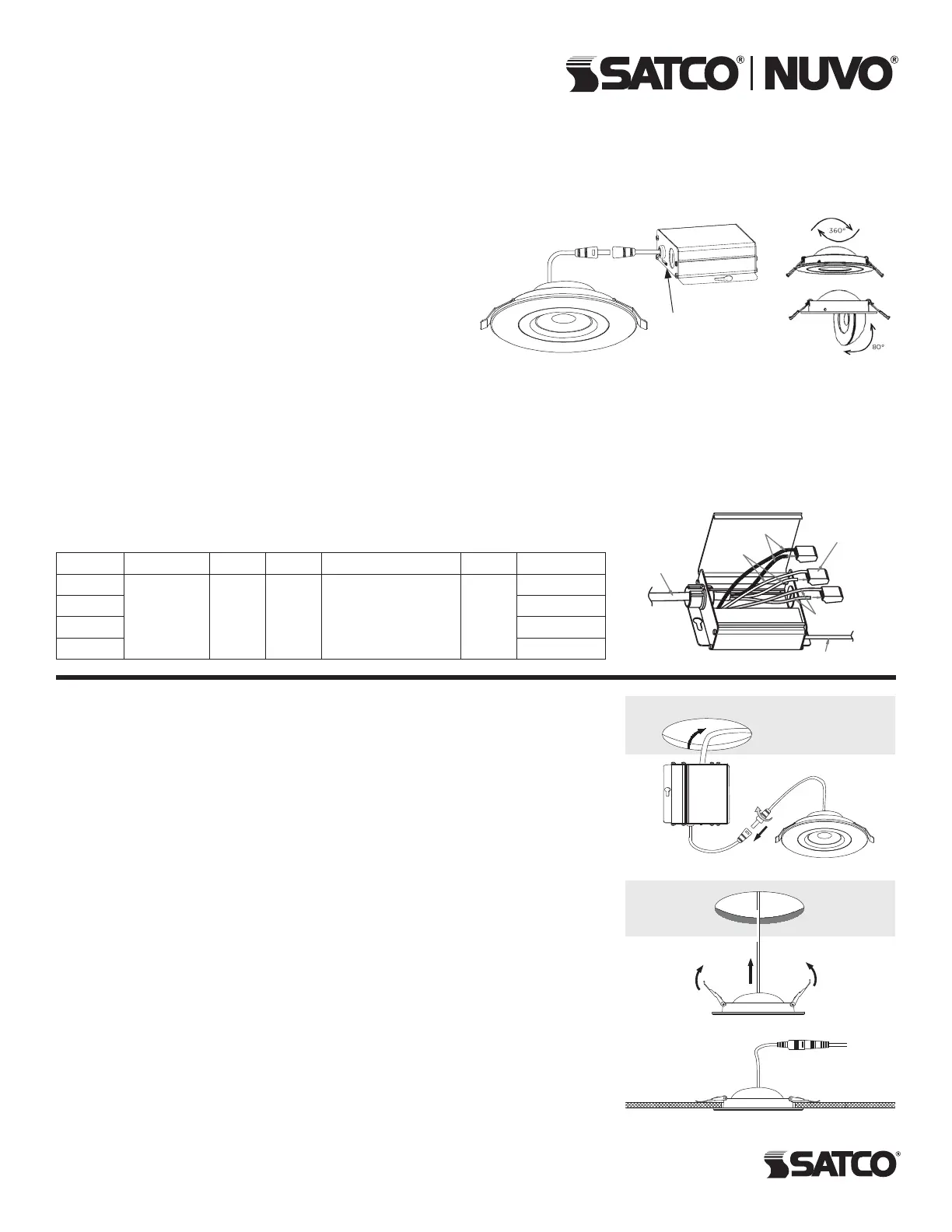

LED 4” GIMBAL DOWNLIGHT

WITH REMOTE DRIVER

Models: S11840, S11841, S11842, S11843

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2021 Satco Products, Inc. 12/21

ModelDimensionsWattsVoltsCCT SelectableCRIShape/Finish

S11840

4 inches9W120V

2700K/3000K/

3500K/ 4000K/5000K

90

Round/White

S11841Square/White

S11842Round/Black

S11843Square/Black

WIRING DIAGRAM

TOOLS REQUIRED: Hole saw, measuring tape and connector cables (as needed).

NOTE: Use extensions if necessary. Available connector cables are 6' (1.8m).

Connector cables are linkable.

1. Turn power OFF from the electrical panel before starting installation.

2. Cut a hole in the ceiling for the downlight in a suitable position. Refer to Hole Cut

Dimension chart (below).

3. Run the electrical wire from the switch (power supply wire) through the mounting

hole. Use NMD90 Romex or BX cable. See Figure B.

4. Open the Junction Box swing cover and remove the appropriate knockouts.

5. Insert the power supply wire through the knockout and fasten with a cable connector

(not included).

6. Connect wires inside the Junction Box using the quick connect terminals. Connect

green ground with the green box wire. Connect the black and white power leads

with the matching black and white box wires. See Wiring Diagram.

7. Put all wires and connections back into the box and close the cover securely.

8. New Construction Applications: Junction Box shall be firmly secured to the

studs, joists or similar fixed structural units.

Remodel Applications: Do not require the Junction Box to be firmly secured to

xed structural units. Remove the Junction Box tabs, then insert into ceiling.

9. Choose the color temperature using the switch on the side of the remote driver.

See Figure A.

10. Bend back the two torsion springs and slowly t the xture through the ceiling hole.

The torsion springs will pull the xture into place. See Figures C & D.

11. Once installation is complete, turn power ON to conrm the xture is working properly.

Figure B

Figure C

Figure D

Power supply

Cable to fixture

Green wires

Black wires

White wires

Quick connect

terminals

Figure A:

CCT Selection

Switch
