ModelShape/FinishDimensionsWattsVoltsCCTCRI

S11618R1Round/White

4 inches

12W120V

2700K

3000K

3500K

4000K

5000K

90

S11619R1Round/Black

S11620R1Round/Brushed Nickel

S11621R1Square/White

S11622R1Square/Black

S11623R1Square/Brushed Nickel

S11624R1Round/White

3.5 inches

S11625R1Round/Black

S11626R1Round/Brushed Nickel

S11627R1Square/White

S11628R1Square/Black

S11629R1Square/Brushed Nickel

WARNING: Risk of Fire or Electric Shock

• Disconnect power before installation or any maintenance of the xture.

• To avoid damage, falling, electric shock or re, do not modify the xture

or replace accessories without conrming with the supplier rst.

• Only authorized, qualied personnel should install this xture and

should follow the owner’s manual.

• Do not dismantle the xture without the supplier’s authorization.

• Do not touch the power supply when the xture is operating.

• For use in environments where an accumulation of non-conductive

dust on the xture may be expected.

• Suitable for indoor wet locations.

IMPORTANT:This product must be installed in accordance with the applicable installation

code by a person familiar with the construction and operation of the product and the hazards involved.

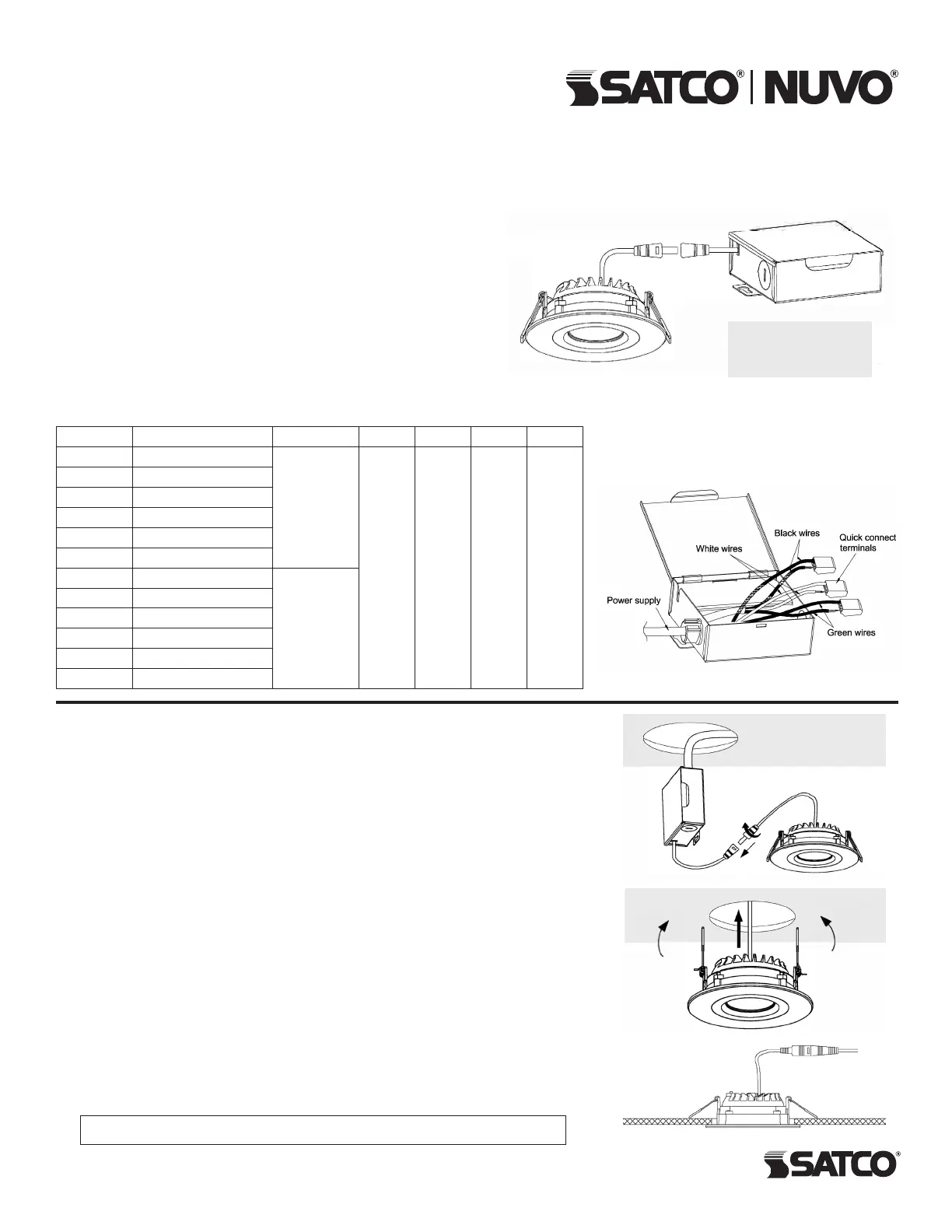

LED 3.5" & 4" LOW PROFILE

DIRECTIONAL DOWNLIGHT REMOTE

DRIVER, ARCHITECTURAL

Models: S11618R1, S11619R1, S11620R1, S11621R1, S11622R1, S11623R1,

S11624R1, S11625R1, S11626R1, S11627R1, S11628R1, S11629R1

Satco Products, Inc.

Brentwood, NY 11717

INSTALLATION

INSTALLATION AND SAFETY INSTRUCTIONS

IMPORTANT: Read before installing xture. Retain for future reference.

© Copyright 2023 Satco Products, Inc. 8/23 v1.1

Fixture Includes:

1 LED Lamp

1 Junction Box

WIRING DIAGRAM

TOOLS REQUIRED: Hole saw, measuring tape and connector cables (as needed).

NOTE: Use extensions if necessary. Available connector cables are 6' (1.8m).

Connector cables are linkable.

1. Turn power OFF from the electrical panel before starting installation.

2. Cut a hole in the ceiling for the downlight in a suitable position. Refer to Hole Cut

Dimension chart (below).

3. Run the electrical wire from the switch (power supply wire) through the mounting hole.

Use NMD90 Romex or BX cable. See Figure A.

4. Open the Junction Box swing cover and remove the appropriate knockouts.

5. Insert the power supply wire through the knockout and fasten with a cable connector

(not included).

6. Connect wires inside the Juction Box using the quick connect terminals. Connect green

ground with the green box wire. Connect the black and white power leads with the

matching black and white box wires. See Wiring Diagram.

7. Put all wires and connections back into the box and close the cover securely.

8. New Construction Applications: Juntion Box shall be firmly secured to the studs,

joists or similar fixed structural units.

Remodel Applications: Do not require the Junction Box to be firmly secured to xed

structural units. Remove the Junction Box tabs, then insert into ceiling.

9. Bend back the two torsion springs and slowly t the xture through the ceiling hole.

The torsion springs will pull the xture into place. See Figures B & C.

10. Once installation is complete, turn power ON to conrm the xture is working properly.

Hole Cut Dimensions: 3 1/2" = ø 3 9/16" (91mm), 4" = ø 4 1/4" (108mm)

Figure A

Figure B

Figure C
