1
RGS-3084M- E
ROLINE Gigabit Ethernet Switch,
6x (5xGbE + 1x Gbic(SFP), 4x PoE+)
21.14.3524
User Manual
1. Product Overview
This is a 6-port Gigabit Ethernet Switch with 4 PoE+ PSE ports and 1 dual-speed SFP slot.
It delivers data and electric power via Ethernet cables to PoE devices such as IP cameras
and wireless access points. It supports both PoE and PoE+ devices with 85W power
budget. With compact and lightweight housing design, the switch is suitable for SOHO and
small business offices.
2. Product Features
● Provides five 10/100/1000Mbps RJ-45 ports and one dual-speed SFP slot
● Four 802.3at-compliant PoE PSE ports
● All copper ports support auto-negotiation and auto-MDI/MDI-X detection
● Supports IEEE 802.3x flow control
● Supports jumbo frame length up to 9K bytes at full wire speed forwarding
● Supports IEEE 802.3az Energy Efficient Ethernet
● Supports IEEE 802.1p QoS classification
● Supports loop detection

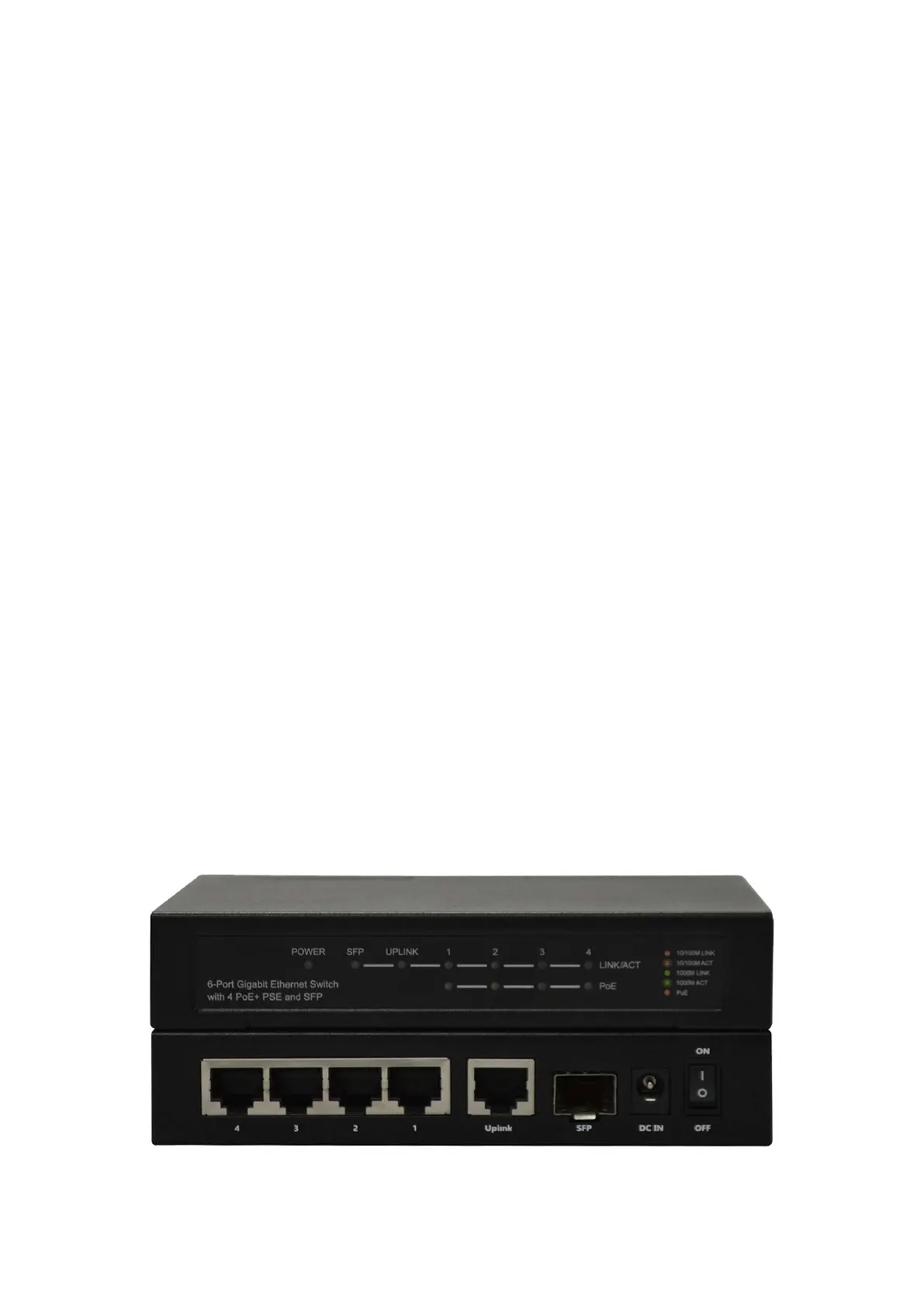

3. Hardware Overview
Note: Please turn off the power switch when inserting the DC plug.
Product specificaties
| Merk: | Roline |
| Categorie: | Schakelaar |
| Model: | 21.14.3524 |
| Kleur van het product: | Zwart |
| Breedte: | 147 mm |
| Diepte: | 106 mm |
| Hoogte: | 28 mm |
| Materiaal behuizing: | Metaal |
| LED-indicatoren: | Ja |
| DC voltage input: | 54 V |
| Netwerkstandaard: | IEEE 802.3at, IEEE 802.3x |
| Auto MDI/MDI-X: | Ja |
| Power over Ethernet (PoE): | Ja |
| MAC-adrestabel: | 2000 entries |
| Aantal basis-switching RJ-45 Ethernet-poorten: | 5 |
| Type basis-switching RJ-45 Ethernet-poorten: | Gigabit Ethernet (10/100/1000) |
| Jumbo Frames ondersteuning: | Ja |
| Full duplex: | Ja |
| Hoeveelheid Power over Ethernet (PoE) ports: | 4 |
| Store-and-forward: | Ja |
| Vezel-optische connector: | MiniGBIC |
| Fibre channel-poorten: | 1 |
