Features

USB Type-C Male (Connect to host computer)

• Support DP1.4 Alt mode, downward compatible with DP1.2 Alt mode

HDMI

• Support HDMI max 4K/60Hz

Support 6/8/10/12 bit color depth

output

• Support output pixel format

RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0

• Support HDCP 2.3/2.2&HDCP1.4

• Support HDR

Note: When connecting a DP1.4 Alt mode

supported host, the max resolution of

HDMI is 4k/60Hz; When connecting a

DP1.2 Alt mode supported host, the max

resolution of HDMI is 4k/30Hz due to

bandwidth limitation

SD/Micro SD 3.0

• Support Secure Digital v3.0 UHS-I (Ultra

High Speed)：SDR12 (12.5Mbyte/s)/

DR25(25Mbyte/s)/SDR50(50Mbyte/s)/

DR50(50Mbyte/s)/SDR104(104Mbyte/s)

• Allow SD/Micro SD to work

simultaneously

Introduction

Package Contents

Before attempting to use this unit, please check the packaging and make sure the

following items are contained in it:

• Main Unit x1

• User Manual

Rocstor introducing a versatile Type-C 6-in-1 hub featuring HDMI, 2 USB-A ports, SD/TF

card slots, and a Type-C female port. Perfect for expanding the connectivity options of

Type-C or Thunderbolt hosts such as PCs, laptops, and mobile phones, particularly

benecial for devices with only one Type-C port. Equipped with cutting-edge DP1.4 Alt

mode supported IC, it delivers HDMI video output at a maximum resolution of 4k/60Hz

while simultaneously transferring USB 3.0 data at up to 5Gbps. The hub also boasts 2

USB-A ports for dual device connection, along with SD/Micro SD slots enabling

simultaneous insertion of two cards for data transfer or information exchange with the

host. Additionally, the Type-C female port supports PD 3.0 Charging with a maximum

power delivery of 100W. Compatible with all DP Alt mode supported Type-C hosts, this

hub oers unparalleled versatility and convenience.

Type-C (for PD Charging)

• Support PD Charging with max 100W

(20V/5A), 15W is dedicated to the

functioning of this product, the rest

power (max 85W) will be passed to

charge for the host

• Support Fast Role Swap of PD 3.0, the

connected device will not get

disconnected while plugging out PD

Adapter

Upstream:

Downstream:

Support Fast Role Swap of PD 3.0, the connected device will not get disconnected

while plugging out PD Adapter

Specication

Input / Output Connector

Input

Output

HDMI Female x1(4K60Hz)

USB-A Female p1-x2 (5G)

SD/Micro SDx1(104MBps)

Type-C Femalex1（PD 100W)

Type-C Male x1

Warranty

Limited Warranty3 Years

Environmental

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

0°C to + 45°C

10% to 90 % RH (no condensation)

-10°C to + 70°C

10% to 90 % RH (no condensation)

Regulatory Approvals

Certications

Power Supply

USB-C PD Charging Port 100W(20V/5A)

FCC, CE

Accessories

User ManualEnglish Version

®

Congratulations

Thank you for purchasing this premium Rocstor product. For optimum performance and

safety, please read these instructions carefully before connecting, operating or using this

product. Please keep this manual for future reference.

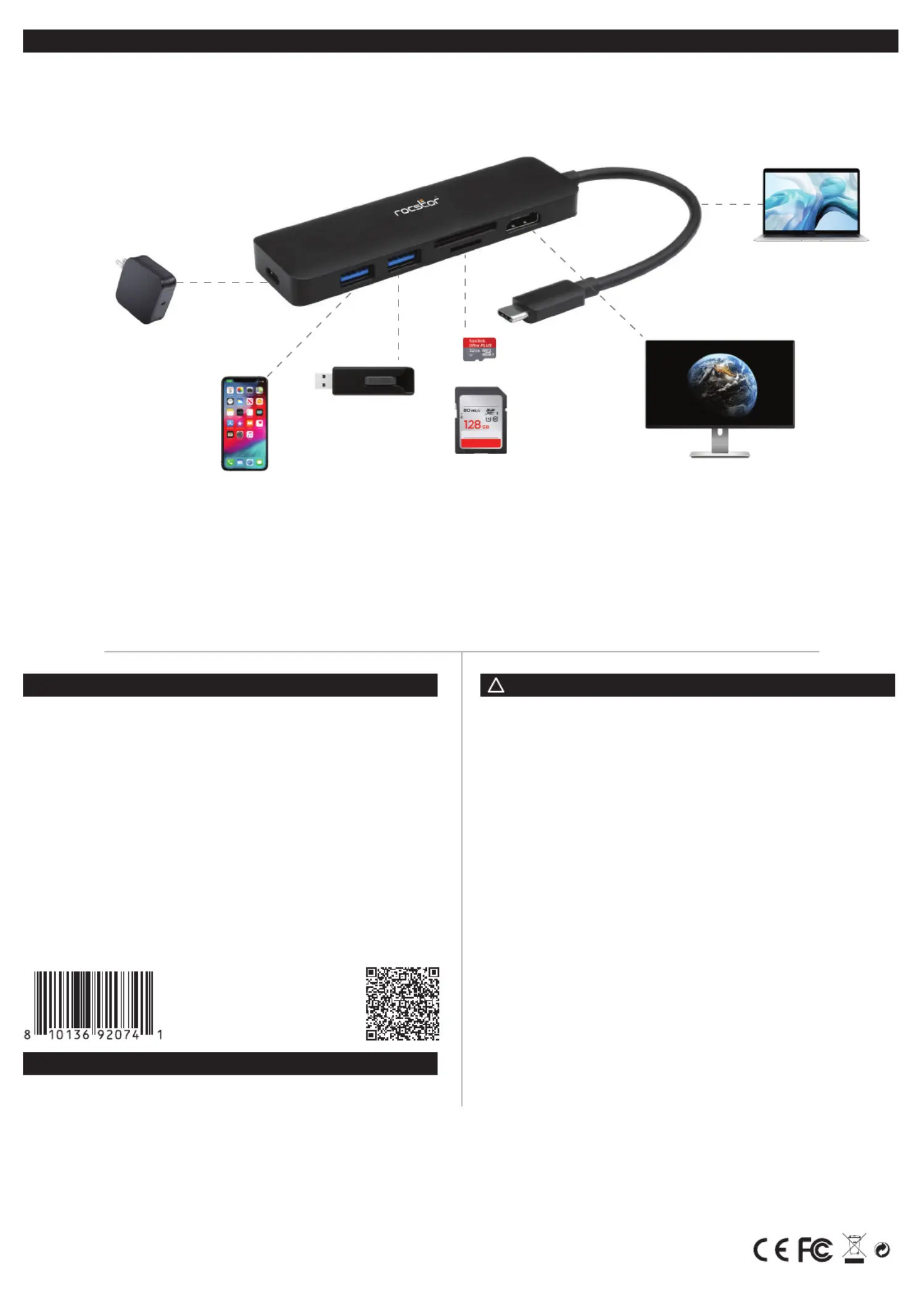

Type-C to HDMI/USB-Ax2/SD/Micro SD/Type-C

PD Charging with DP1.4 Alt mode

User Manual

Y10A309-B1

USB-A X2

• 1 USB-A port (close to Type-C female)

supports max 7.5W([email protected]), another

USB-A supports max 900mA downstream

charging. And 2 USB-A share max 12W

(5V/2.4A) downstream charging.

• Max 5Gbps bandwidth per USB-A port

• Support short-circuit, over-current

protection
