The SolidConnect SC10 is an 8 PoE Gigabit Ethernet Switch specially designed for

security monitoring purposes and Ethernet HD monitor security systems. This product is

fully integrated with security monitoring features, oering fast packet forwarding

capability and gigabit transfer rates, ensuring clear images and smooth transmission. It

provides ample bandwidth to meet the demands of high-denition video.

Application

Cat5/5e/6 Cable

Power

PoE IP Camera

PoE IP Camera

PoE PTZ camera

PoE Dome Camera

Poe Ethernet Switch

• Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at

• 10 10/100/1000Base-T ports

• Provides 8 PoE injector and 120W Built-in power supply

• High back-plane bandwidth 20Gbps

• IEEE802.3x Flow control

Simplify your network setup, ensure secure communication, and experience ecient

performance with our VLAN+EXTEND Switch

Features

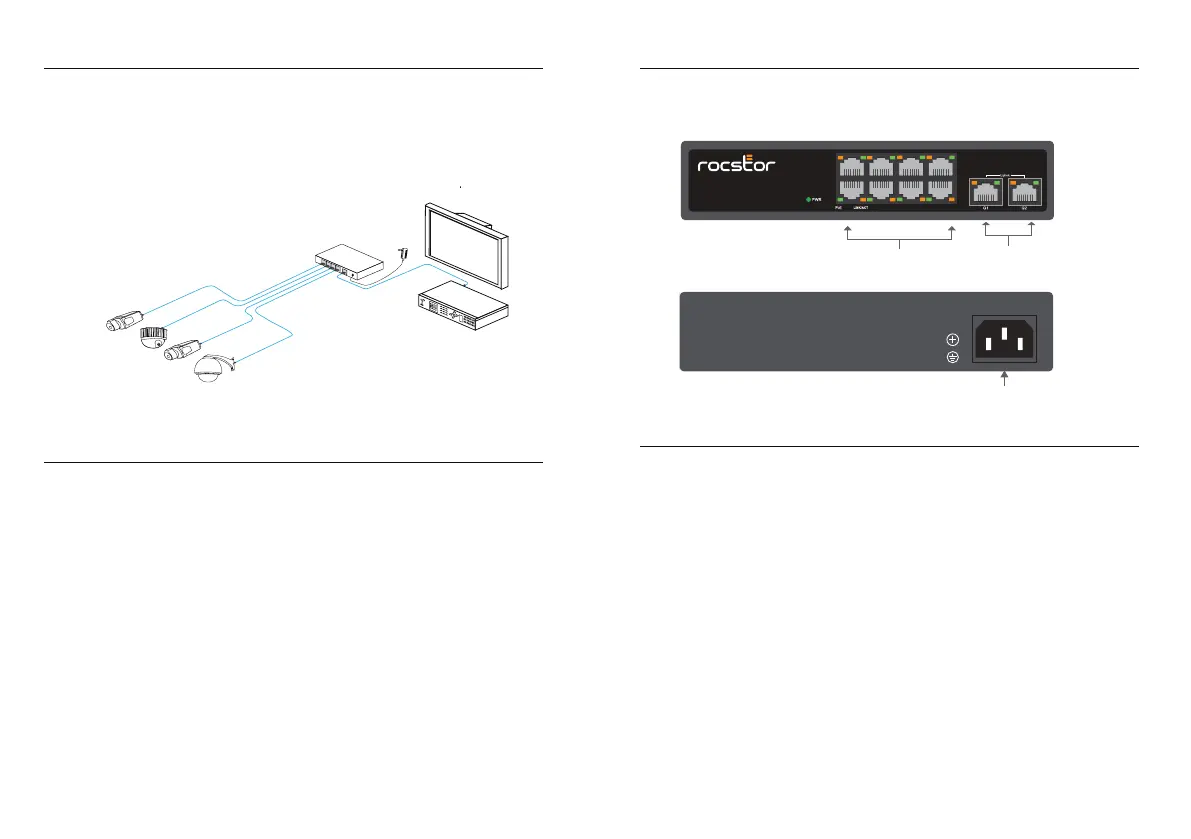

Board Diagram

SolidConnect SC10

Back

Front

1- For a safe installation, make sure to turn o both the signal power and the power of

the display devices. Installation with power may harm the transmission equipment.

2- Use network cables to connect the PoE IP camera to the appropriate downlink port

(1-8) on the product.

3- Connect the equipment's uplink port to the NVR or computer using a network cable.

4- Plug in the AC power cable to provide power.

5- Verify that the installation is correct, the equipment is in good condition, and all

connections are stable before powering on the system.

6- Ensure the Ethernet equipment is powered on and functions properly.

By following these steps, you can perform a safe and eective installation of your

equipment. Remember to exercise caution when dealing with electrical connections

and refer to the manufacturer's instructions for specic details related to your product.

Installation Steps

1

www.rocstor.com

2

www.rocstor.com

Powerinputport

POEEthernetPort

GigabitUp-link

EthernetPort

AC/IN 100~240V

Monitor

NVR

2

1

8

7

SolidConnect SC10

10-Port Unmanaged Gigabit PoE+ Switch
