Pagina 1/24

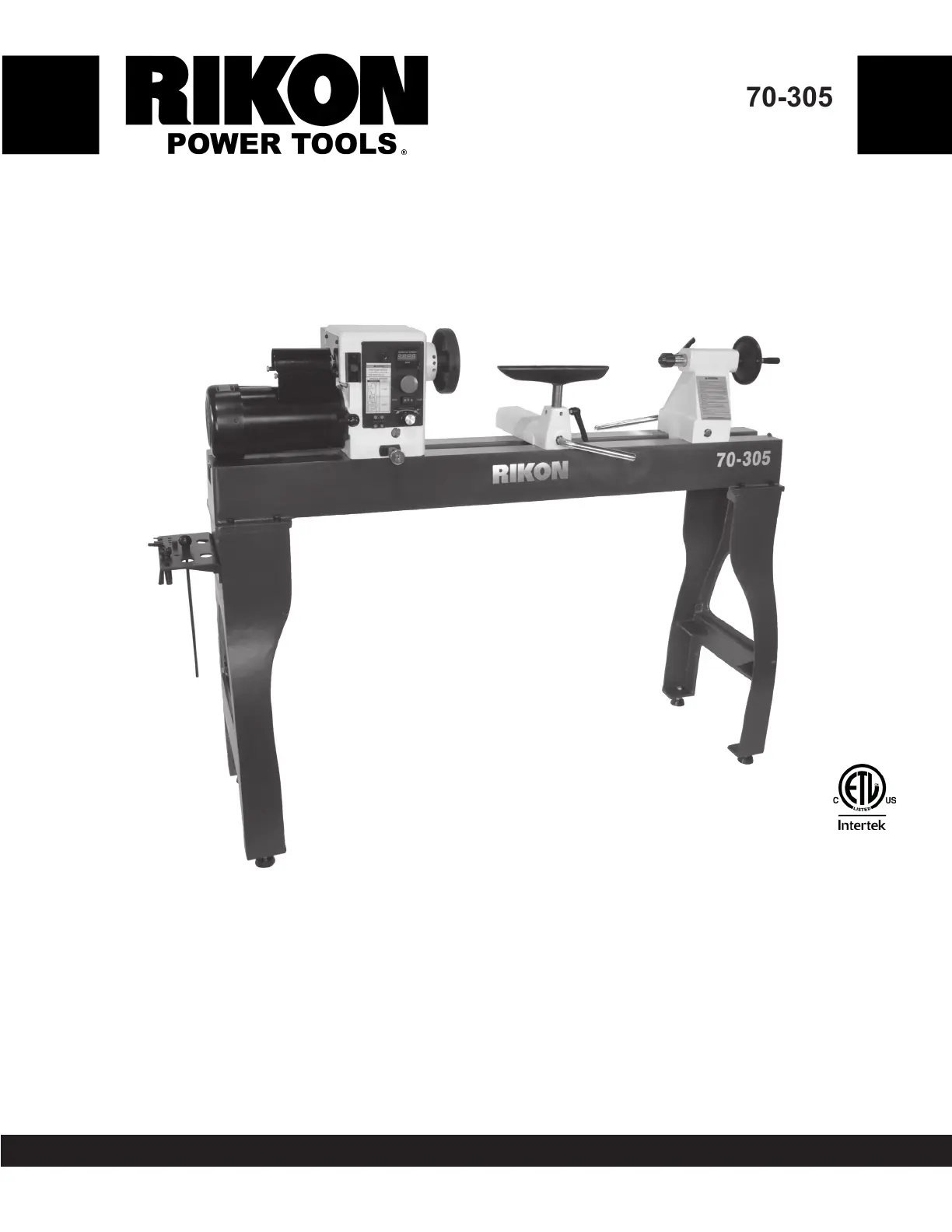

70-305
www.rikontools.com
70-305M3
16”x42” Heavy Duty VSR Lathe
Operator’s Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________ Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167
4001824
2
TABLE OF CONTENTS
SPECIFICATIONS
NOTE: The specications, photographs, drawings and information in this manual represent the current model
when the manual was prepared. Changes and improvements may be made at any time, with no obligation on
the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to
ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety,
assembly and operation of this machine.
Specications.....................................................................................................................2
Safety Instructions ........................................................................................................3 - 6
Getting To Know Your Machine ..............................................................................................7
Contents of Package .....................................................................................................7 - 8
Installation ......................................................................................................................8
Assembly ................................................................................................................................... 9
Operation ..................................................................................................................10 - 11
Adjustments...............................................................................................................12 - 14
Maintenance .................................................................................................................... 15
Electricals & Wiring Diagram .......................................................................................5 & 16
Troubleshooting ....................................................................................................................... 17
Parts Diagrams & Parts Lists .................................................................................. 18 - 21
Notes ......................................................................................................................... 15 & 22
Warranty .......................................................................................................................... 23
Motor .............................................................................................1-1/2 HP, TEFC
Volts, Phase ........................................................................................ 220 V, 1 Ph
Amps, Hertz ....................................................................................... 4.7 A, 60 Hz
Motor Speed (no load).......................................................................... 1,725 RPM
Direction ..................................................................................... Forward/Reverse
Swing Over Bed ................................................................................. 16” (46 mm)
Swing Over Tool Rest Base.............................................................. 12” (305 mm)
Distance Between Centers............................................................. 42” (1067 mm)
Speeds ............................................................................ Variable 0 - 3,200 RPM
Speed Ranges (2) ......................................................... 0 - 1,200; 0 - 3,200 RPM
Spindle Nose Threading....................................................................1-1/4” x 8 TPI
Headstock Taper ............................................................................................ MT-2
Tailstock Taper ............................................................................................... MT-2
Hole Through Drive Spindle .............................................................. 3/8” (10 mm)
Hole Through Tailstock ...................................................................... 3/8” (10 mm)
Tailstock RAM Travel ......................................................................... 4" (100 mm)
Number of Indexing Positions....................................................... 12 (36 possible)
Tool Rest Post Diameter ....................................................................1” (25.4 mm)
Headstock Rotation ........................................................................................ 360°
Spindle to Floor Distance .............................................................. 44“ (1118 mm)
Overall Size (LxWxH)........................ 77” x 22” x 47-1/4” (1956 x 559 x 1200 mm)
Base / Stand Size ........................................... 17-3/8” X 59-1/4” (441 x 1505 mm)
Net Weight ....................................................................................386 lbs (175 kg)
