70-105
www.rikontools.com

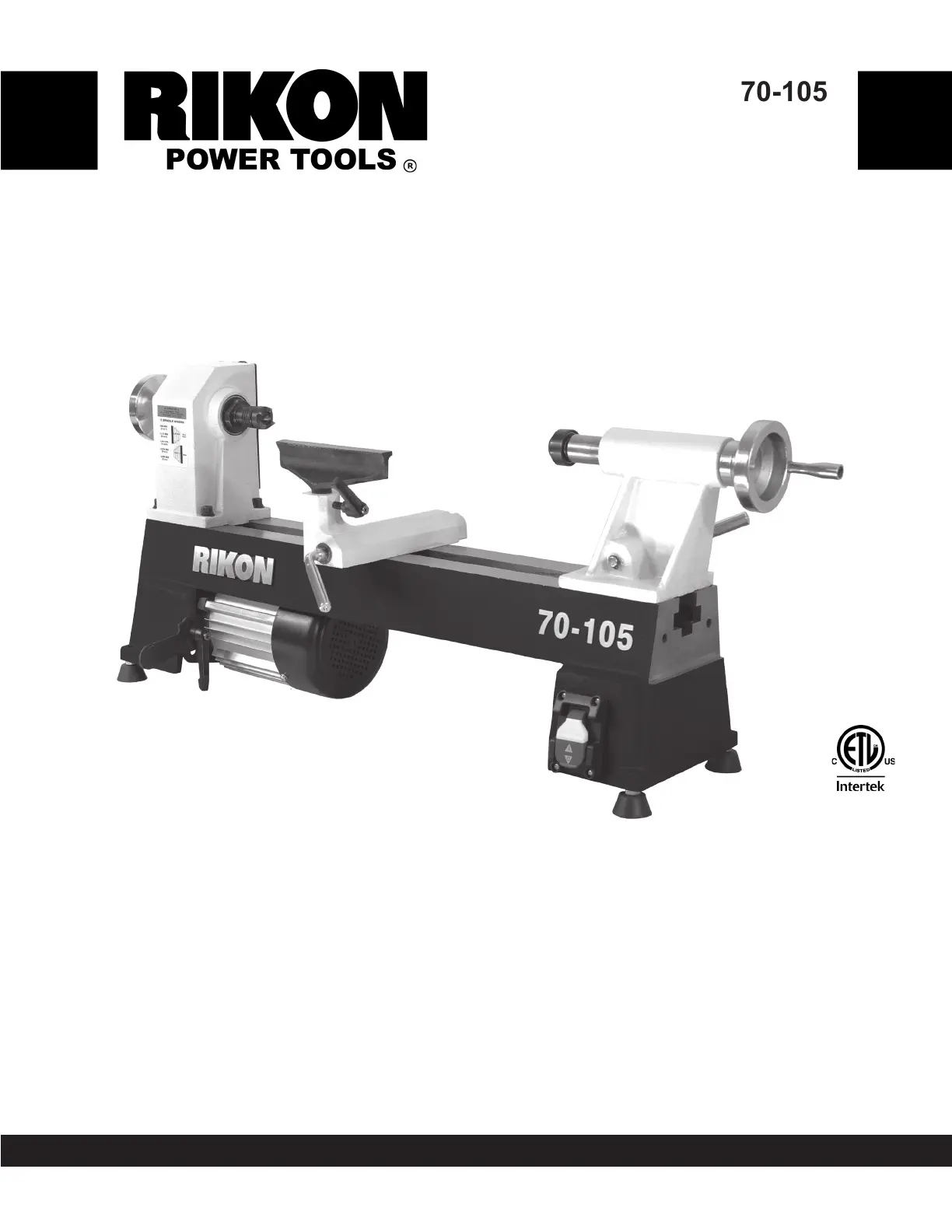

70-105M3
10” x 18” Mini Lathe
Operator’s Manual
Record the serial number and date of purchase in your manual for future reference.
Serial Number: _________________________ Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877)884-5167
4001824
2
TABLE OF CONTENTS
SPECIFICATIONS
NOTE: The specications, photographs, drawings and information in this manual represent the current model
when the manual was prepared. Changes and improvements may be made at any time, with no obligation on
the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to
ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety,
assembly and operation of this machine.
Motor .................................................................................................1/2 HP, TEFC
Motor Speed (no load).......................................................................... 1,700 RPM
Volts, Phase ........................................................................................ 120 V, 1 Ph
Amps, Hertz ....................................................................................... 3.7 A, 60 Hz
Swing Over Bed ............................................................................... 10” (254 mm)
Swing Over Tool Rest Base.......................................................... 7-1/4” (184 mm)
Distance Between Centers............................................................... 18” (457 mm)
Speeds ............................................................................................................... 5
Speed Ranges ................................................ 500, 1175, 1850, 2225, 3200 RPM
Spindle Rotation ....................................................... Forward Only (C-Clockwise)
Spindle Nose Threading.......................................................................... 1” x 8 TPI
Headstock Taper ............................................................................................ MT-2
Tailstock Taper ............................................................................................... MT-2
Hole Through Drive Spindle .............................................................. 3/8” (10 mm)
Hole Through Tailstock ...................................................................... 3/8” (10 mm)
Tailstock Ram Travel ................................................................... 1-3/4" (44.5 mm)
Tool Rest Post Diameter ................................................................ 5/8” (15.8 mm)
Overall Size (LxWxH)............... 35-1/2” x 10-1/2” x 14-3/4” (902 x 267 x 375 mm)
Cast Base Size (LxW) ......................................... 29-1/2” x 7-3/8” (749 x 187 mm)
Net Weight ...................................................................................... 75 lbs. (34 kg)
Specications.................................................................................................................. 2
Safety Instructions ........................................................................................................ 3 - 6
Getting To Know Your Machine ........................................................................................... 7
Contents of Package ...................................................................................7 - 8
Installation .....................................................................................................8
Assembly ............................................................................................................ 9 - 11
Adjustments........................................................................................................ 11 - 14
Operation .................................................................................................................. 14
Maintenance ......................................................................................... 15
Electricals & Wiring Diagram .....................................................................................5 & 15
Troubleshooting .......................................................................................................... 16
Accessories ........................................................................................................................ 17
Warranty ................................................................................................................. 17
Parts Diagram ........................................................................................................... 18
Parts List ........................................................................................................... 19
