Regina Andrew Redford 17-1038 Handleiding
Pagina's 1 Verlichting
Bekijk de handleiding van Regina Andrew Redford 17-1038 gratis online of download de PDF. 21 mensen vonden deze handleiding nuttig. Vraag over dit model? Stel een vraag
Figure 3
ITEM NO:
ITEM NO:
ITEM NO:
ITEM NO:ITEM NO:-
-
-
--
17
17
17
171710
10
10
101038
38
38
3838
Redford Outdoor Sco
Redford Outdoor Sco
Redford Outdoor Sco
Redford Outdoor ScoRedford Outdoor Sconce Single Downlight
nce Single Downlight
nce Single Downlight
nce Single Downlight nce Single Downlight
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN
WE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIANWE STRONGLY RECOMMEND INSTALLATION BY A LICENSED ELECTRICIAN.
.
.
. .
These instructions are provided for your safety. It is very important that they are read completely before
beginning the installation of your fixture.
ASSEMBLY INSTRU
ASSEMBLY INSTRU
ASSEMBLY INSTRU
ASSEMBLY INSTRUASSEMBLY INSTRUCTION:
CTION:
CTION:
CTION:CTION:

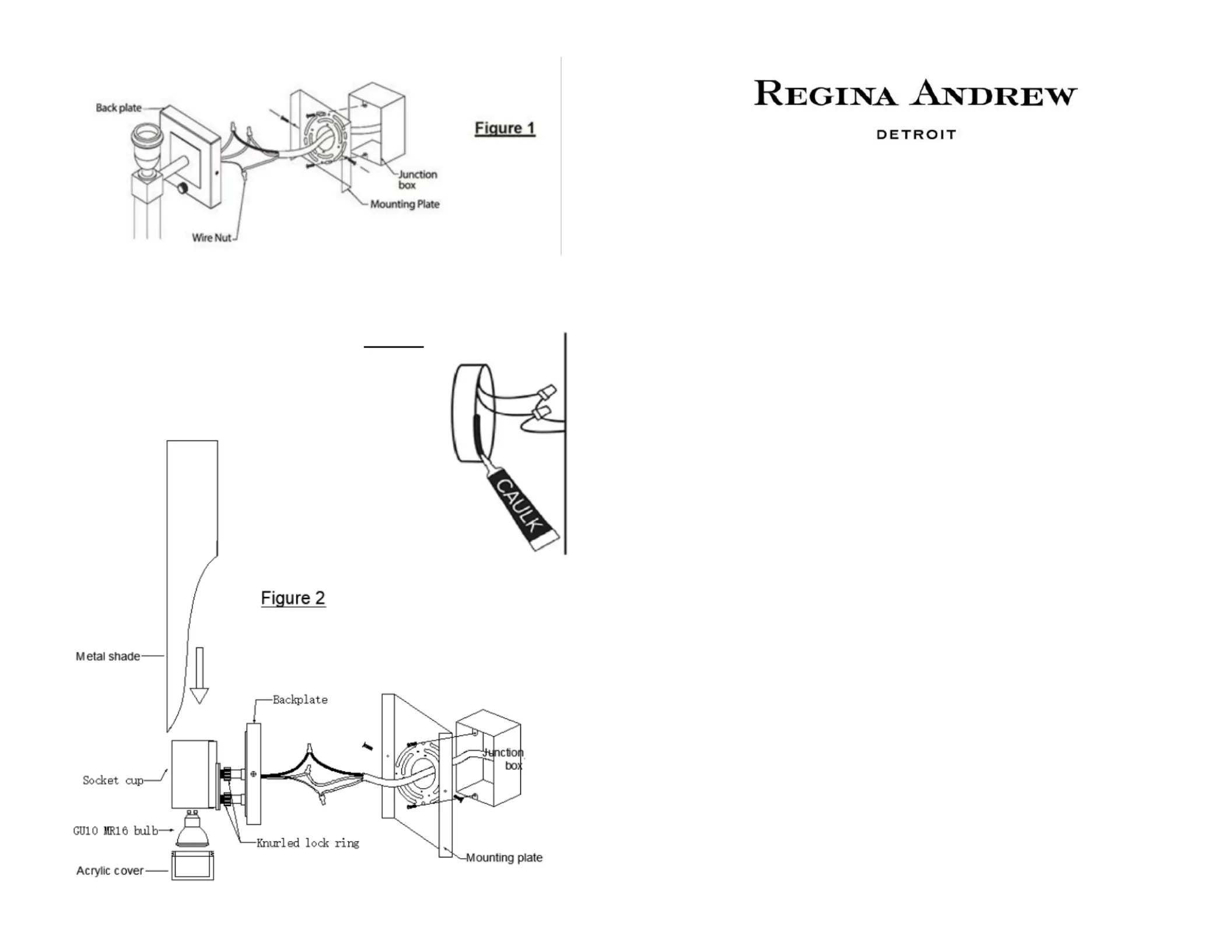

A. FOR WIRING DIRECTLY INTO OUTLET BOX (Figure 1)
1. Remove steel retainer from lamp back plate by removing the attachment screws
on the side of the backplate and attach the retainer to the outlet (junction) box.
Adjust the retainer so that the tabs on the side are level.
2. Connect the wires of lamp to the wires of outlet box; a. black outlet--wire to box
black or smooth lamp wire; b. white outlet--wire to black or smooth lamp wire; box
c. bare “grounding” outlet--wire to green wire. box
3. Install lamp to the steel retainer using two flat-head screws.
B. SHADE ASSEMBLY (Figure 2)
1. Unscrew acrylic cover. Insert appropriately rated bulb (bulb included) into the socket
and put back the acrylic cover.
2. Loose the knurled lock rings and slide the shade onto the gap between the knurled
lock rings and socket cup. Tighten the knurled lock rings
MOUNTING FIXTURE(S) OUTDOOR AND/OR IN A WET LOCATION INSTRUCTION (Figure 3)
1. Mounting surface should be clean, dry, flat and ¼” larger than the canopy/fixture base
on all sides. Any gaps larger than 3/16” should be corrected.
2. With a silicone caulking compound (not included), caulk completely around where the
back of the canopy/back plate meets the wall surface.
CAUTION:
CAUTION:
CAUTION:
CAUTION: CAUTION: FAILURE TO COMPLETELY CAULK AROUND THE LIGHT FIXTURE’S MOUNTING
PLATE COULD RESULT IN WATER SEEPAGE INTO THE LIGHT FIXTURE AND/OR JUNCTION
BOX.
Made in China
Made in China
Made in China
Made in ChinaMade in China
