Pagina 1/3
1

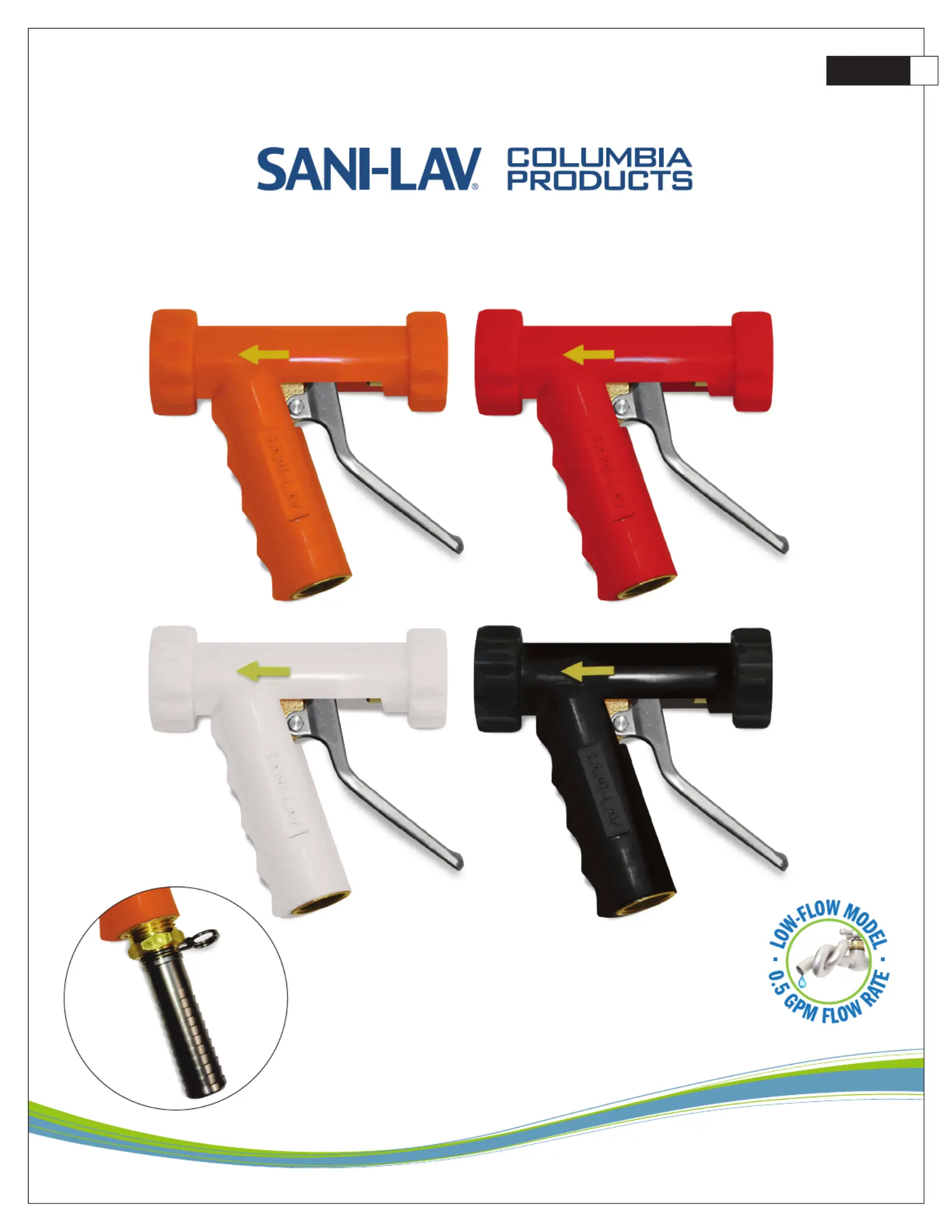

NOZZLES
Model N8120 Model N81R20
Model N81W20
Model N81B20
All Models include N20 Swivel
3/4” GHT, 3/4” hose barb
Large-Sized Low-Flow Industrial Nozzle with Brass Body
Model N8120
.75” GHT Female
(19.05mm)
Variable Spray Nozzle
Trigger lever controls
variable spray patern
wide
narrow
tight
2
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
COLUMBIA SPECIFICATIONS
NOZZLES
• 3/4” GHT inlet allows direct hose connection
• Maximum working pressure 150 psi
• Maximum operating temperature: 200°F/93°C
• Weight 2.6 lbs.
• Safety shut off trigger when released
• Replaceable insolated safety orange, red, white or black covers
N8120 Universal Features
Model Color Body Handle Type Max psi Max TempInlet Weight GPM @ 100 psi Swivel Adapter
Low Flow
N8120 Safety Orange 3/4” FGHT 5.3 Low FlowBrass Stainless 150 200 2.6 N20
N81R20 Red Brass Stainless 150 200 2.6 N203/4” FGHT 5.3 Low Flow
N81B20 Black Brass Stainless 150 200 2.6 N203/4” FGHT 5.3 Low Flow
N81W20 White Brass Stainless 150 200 2.6 N203/4” FGHT 5.3 Low Flow
Model N20
Model N20 Swivel Hose Barb
(3/4” GHT, 3/4”)
Included
Model N17 Swivel Hose Adapter
(3/4” FGHT x 3/4” MGHT)
Sold Separately
PSI Standard Model N8 Water Saver Model N81 Water Savings % Model N81
100 8.90 gpm 5.25 gpm 41.01%
WARNING: This product can expose you to chemicals including Lead, and Phthalates
(DEHP) which are known to the State of California to cause cancer and birth defects or
other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Notice for California Consumers
Water Flow Rate Comparison
F
N8HR – Handle replacement kit
G
N8BR – Barrel cartridge replacement kit
3
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
COLUMBIA SPECIFICATIONS
NOZZLES
Part No. Decription
A
N8OC Orange insolated cover
B
N8RC Red insolated cover
C
N8WC White insolated cover
D
N8BC Black insolated cover
E
N8MB Main body
F
N8HR Handle replacement kit
1
Stainless steel nut
2
Stainless steel handle
3
Stainless steel handle arm sleeve
4
Stainless steel handle bolt
G
N8BR Barrel cartridge replacement kit
5
Flow adjustment tip
6
Washer
7
Washer sleeve
8
Axle
9
Stainless steel spring
10
O-ring
11
Axle bolt
12
O-ring
13
Nut
14
Lock washer
15
Bolt
16
Viton inlet washer
H
N8E Bolt sleeve
I
N8F Locking nut
N8120 Replacement Parts
Barrel cartridge replacement kit Instructions
1. Pull cover
A
over the back of nozzle to expose the back end.
2. Take handle off nozzle by removing parts
1
,
3
, and
4
.
3. Unscrew part
I
locking nut and remove bolt sleeve
H
and the cartridge
G
.
4. Insert the new cartridge.
5. Re-Install the handle.
6. Replace the sleeve with the open end facing down.
5. Screw the locking nut back into place.
6. Slip the cover back over the nozzle end using a round ended tool similar to a shoe horn.
16
